OEM supplier ISO certificate GMP50/40 single piston cement mortar pump
- 10000 Set / Sets per Month
- Shanghai or Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Other, Electric and Diesel | Place of Origin: | Henan, China |
Brand Name: | GAODETEC | Model Number: | GMP50/40 | Power(W): | 5.5KW(Electric) |
Weight: | 450kg | Dimension(L*W*H): | 1715x1024x900(mm) | Certification: | ISO and CE Certificate |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
OEM supplier ISO certificate GMP50/40 single piston cement mortar pump

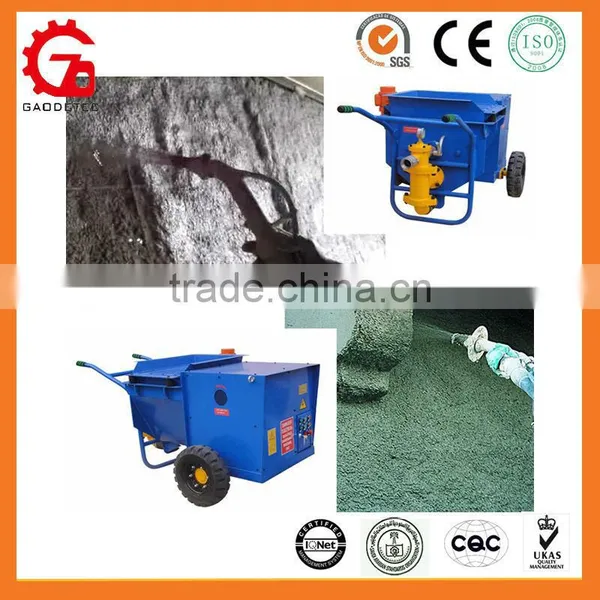

GMP50/40 cement mortar pump is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this machine is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water). And it is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.
OEM supplier ISO certificate GMP50/40 single piston cement mortar pump features:
Single piston with single-acting.
Ball valve
Mechanical transmission
Integrate pump head and hopper
Prevent eduction and deposition together with the paddle agitating
OEM supplier ISO certificate GMP50/40 single piston cement mortar pump Technical data:
Rated Output | 50L/min |
Rated Pressure | 4MPa(40bar/580PSI) |
Cylinder Dia. | 90mm |
Piston Stroke | 85mm |
Stroke/Minute | 95/min |
Inlet diameter | 75mm |
Outlet diameter | 50mm |
Max. Aggregate size | 5mm |
Water cement ratio | 1: 3 |
Power unit | 5.5KW(Electric) |
10hp(Diesel)Chassis | Skid or Tyre |
Weight | 450kg |
Overall Dimensions | 1715x1024x900(mm) |
OEM supplier ISO certificate GMP50/40 single piston cement mortar pump Package:
OEM supplier ISO certificate GMP50/40 single piston cement mortar pump Application:
Workshop:
Customers:
Certificate:
