2016 advanced technology small hydraulic power unit for construction machinery
- 1000 Set / Sets per Month
- Shanghai Tianjin Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- website:littlebee730526 WA380 hydraulic gear pump parts hydraulic pump
- Yuken PV2R of PV2R1 PV2R2 PV2R3 PV2R4 single hydraulic vane pump
- High pressure fixed displacement vane pumps PV2R
- 2015 new product high quality PV2R series vane pump
- Yuken hydraulic vane pump PV2R series sing pump
- yuken pv2r hydraulic vane pump for plastic chair making machine
Product Details
Type: | Other, Hydraulic Power Units, small hydraulic power unit | Model Number: | GHPP 20/30-15E | Brand Name: | GEC |
Place of Origin: | Henan, China |
Product Description
Choose GEC,choose high quality!
2016 advanced technology small hydraulic power unit for construction machinery
Model: GHPP 20/30-15E
Hydraulic power pack is an independent hydraulic device. It provides the fluid pressure oil which can control the direction, the pressure and the flow according to the requirement of the main engine, mainly used for the main engine and the hydraulic device. As long as clients connect the hydraulic power pack and the cylinder or oil motor with oil tube, the hydraulic device can realize all kinds of specified action and operating cycle.
Working principle:
Motor or Diesel engine make the oil pump rotate, and the pump absorbs and supplys oil from the oil tank, which can convert the mechanical energy into pressure energy of hydraulic oil. After adjusting the direction, pressure and flow through manifold block, hydraulic oil enters the cylinder or oil motor of hydraulic device by means of the outside line, thus controlling the transformation of the actuator's direction, the power and the speed to make all kinds of hydraulic device work.
Technical data :
Type | GHPP20/30-15 |
Rated Pressure | 20MPa |
Output | 0-30L/min |
Electric power | 15kw, 3 phase, 380V, 50Hz Siemens motor |
Oil tank | 150 L |
Directional Valve | DC24V,Solenoid operated(Yuken) |
Dimension(L*W*H) | 1100x750x1250mm |
Weight | 390KG |
We also could according to your demands to design suitable type for you |
Features:
1. Siemens electric motor;
2. Stepless variable output, general type, widely used;
3. Compact structure and small volume;
4. Low noise, fine construction, high quality;
5. Energy saving: perfect design of circuit;
6.Tubing connection between hydraulic pump and hydraulic motor, each other is not subject to strict limits on space layout;
7.Because of oil as working medium, the components of relative motion between surface can self lubrication, wear small, long service life;
8. Each pump can be used as a mobile station, without any pumping station project;
9. Operate and control simply, high degree of automation.

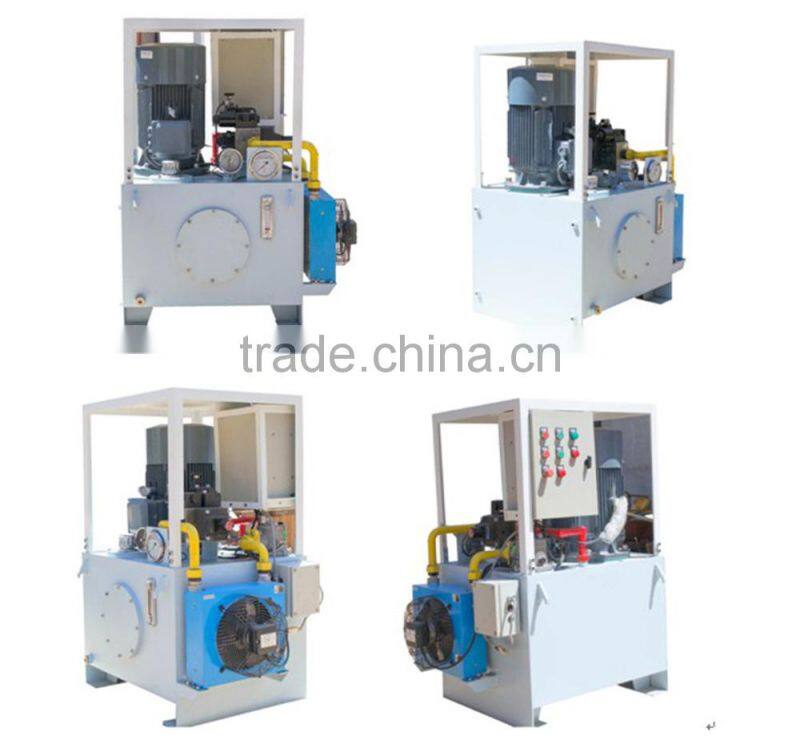

Pictures in different angles:
Why to choose us?
1. OEM Service: hydraulic power pack can be designed as your needs.
2. After-sale service: One year warranty, but wearing parts exclude..
3. We not only have advanced processing equipment, but also equipped with a consummate testing facilities and strong technical force.
4. Specialized in manufacturing all kinds hydraulic cylinders, hydraulic station, hydraulic pump.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Factory:
GHPP13/50-15E with Deutz series air cooling diesel engine
GHPP14/68 -22D
GHPP14/68-30D with Chaichai condensing type double cylinders water cooling diesel engine
GHPP 16/50-18.5E with Siemens electric motor
Contact:
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
