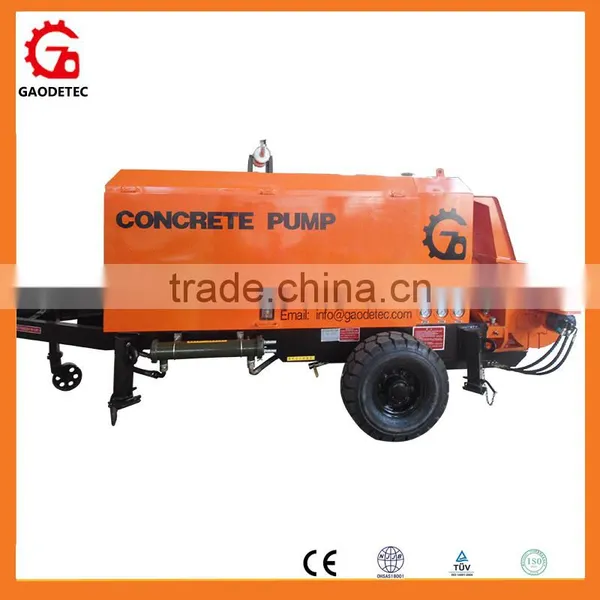

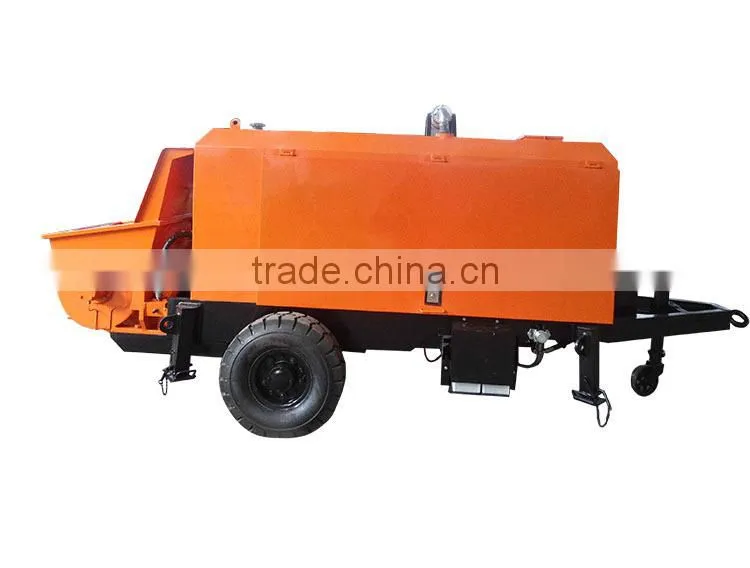

China Output 40CBM per hour Diesel Concrete Pump Price
- Description of diesel concrete pump machine:
Our concrete pump is set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. The diesel engine is with advanced high quality, low emission, low fuel consumption, meet the advanced standard.
2. Application of concrete pump machine:
1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4).Conveying or jet of greening soil on the construction of ecological environment;
5). Conveying or injection of plain concrete and fiber concrete;
3. Features of concrete pump machine:
1. Intelligent power control system to regulate the engine speed automatically,
2. Plunger pump with constant power, to ensure the efficiency of main engine
3. High delivery pressure for demand of high-rise and long distance projects
4. Good sealing S-valve, installed with floating wear resistant ring
5. High-quality wear resistant alloy components
6. Air cooling system, without dependence of external water
7. PLC system to ensure best control performance
8. With re-pumping function to smooth construction of better accessibility
Model No. |
HBT20-10D |
HBT25-8D |
HBT30-10D |
HBT40-12D |
HBT60-12D |
HBT80-16D |
||||||
|
Max. theoretical concrete output (m³/h) |
12 |
21 |
25 |
16 |
30 |
26 |
40 |
32 |
60 |
53 |
84 |
|
|
Max. theoretical concrete pumping pressure (Mpa) |
10 |
5.5 |
8 |
10 |
5.5 |
12 |
7.3 |
12 |
6 |
16 |
9.5 |
|
|
Theoretical vertical conveying distance (m) |
130 |
130 |
130 |
150 |
130 |
180 |
||||||
|
Theoretical horizontal conveying distance (m) |
350 |
350 |
350 |
400 |
400 |
500 |
||||||
|
Max. aggregate |
φ89mm |
20 |
20 |
20 |
|
|
|
|||||
φ108mm |
|
|
|
30 |
|
|
||||||
φ133mm |
|
|
|
40 |
40 |
40 |
||||||
φ150mm |
|
|
|
|
45 |
50 |
||||||
Slump (cm) |
12-23 |
12-23 |
12-23 |
12-23 |
12-23 |
12-23 |
||||||
|
Concrete tube conveying diameter (mm) |
Φ89 |
Φ89 |
Φ89 |
φ133 |
φ133/φ150 |
φ133/φ150 |
||||||
Cylinder (pieces) |
2 |
2 |
2 |
2 |
2 |
2 |
||||||
|
Concrete cylinder diameter*route |
Φ140×1000 |
Φ140×1100 |
Φ140×1000 |
Φ160×1300 |
Φ180×1300 |
Φ200×1650 |
||||||
|
Hydraulic oil tank volume (L) |
180 |
260 |
300 |
370 |
370 |
370 |
||||||
Filling height (mm) |
1100 |
1100 |
1100 |
1200 |
1200 |
1400 |
||||||
Hopper volume (m³) |
0.35 |
0.4 |
0.4 |
0.4 |
0.6 |
0.8 |
||||||
Rated diesel power |
40KW |
49KW |
46KW |
82KW |
82KW |
129KW |
||||||
|
Overall dimension (L×W×H) (mm) |
4300*1670*1680 |
4300*1670*1680 |
4300*1670*1680 |
4750*1750*1800 |
4800*1750*1600 |
6200*1800*1800 |
||||||
Total weight (kg) |
2500 |
3500 |
3800 |
4000 |
4000 |
6500 |
||||||
Production line of diesel concrete pump:
We are a professional manufacturer of concrete pump machine, in order to supply a more suitable concrete pump for you, please help us clear on your requirements:
1. what is max.aggregate?
2. what is pump output ?
3. what is nveying distance(vertical and horizontal)?
4. do you need concrete mixer which is usually used together with concrete pump?
