Home > Products > Anchor Equipment & Tools > Fine Quality Hydraulic Standard Single-Acting Cylinders
Fine Quality Hydraulic Standard Single-Acting Cylinders
- Shanghai Qingdao Tianjin etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Other, cylinders, Single-Acting Cylinders | Model Number | RC | |
| Brand Name | GEC | Place of Origin | Henan, China |
Product Description

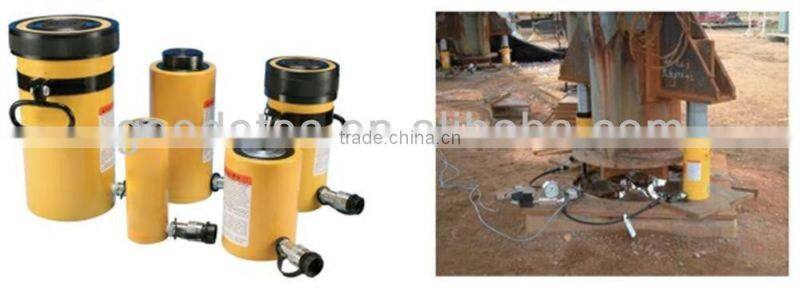

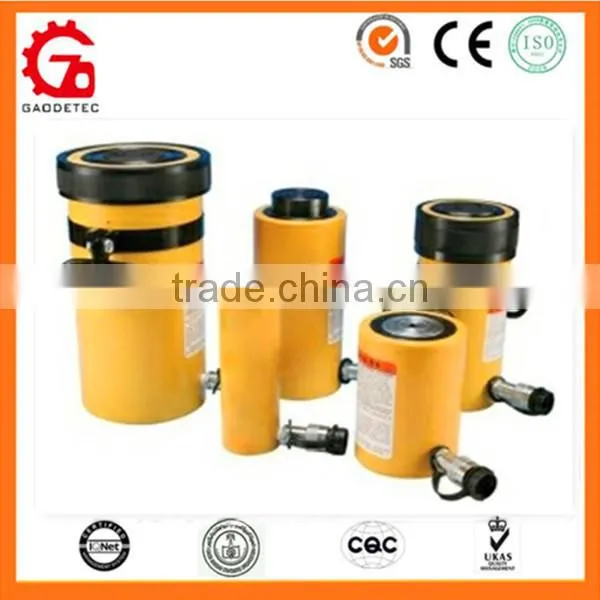

Fine Quality Hydraulic Standard Single-Acting Cylinders
Introduction of Fine Quality Hydraulic Standard Single-Acting Cylinders
Fine Quality Hydraulic Standard Single-Acting Cylinders combines all the design features of the single-acting and double-acting and the advantages of design, which improves the efficiency.
Some of the cylinder has collar threads,plunger threads and base mounting holes which enable easy fixturing , and it is widely used in construction, manufacturing and mainetance and some other occasions, which achieve stalling convenience.
Features of Fine Quality Hydraulic Standard Single-Acting Cylinders
- Heavy-duty return spring for fast retraction
- External access to fasteners requires only standard shop tools for simplified maintenance
- Plunger wiper reduces contamination, extending cylinder life
- Base and plunger made from high-strength alloy steel for durability
- Collar threads, plunger threads and base mounting holes enable easy fixturing on most models
- Baked enamel finish for increased corrosion resistance
- Design allows cylinder to be used in all positions
- CR-400 coupler and dust cap included on all models
Technical data of Fine Quality Hydraulic Standard Single-Acting Cylinders

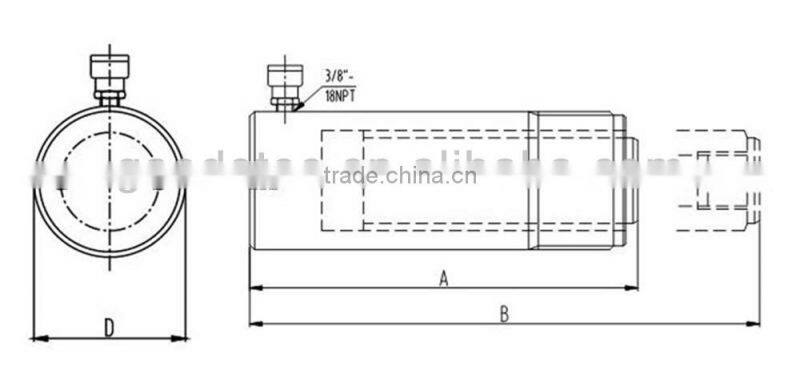

| Model | Capacity @700bar ton (KN) | Stroke(mm) | Effective area(sq. cm) | Oil capacity(cubic cm) | Closed height (mm) A | Out diameter(mm) D | Weight (kg) |
| RC-50 | 5(45) | 16 | 6.5 | 10 | 41 | 38 | 1 |
| RC-51 | 25 | 6.5 | 16 | 110 | 38 | 1 | |
| RC-53 | 76 | 6.5 | 49 | 165 | 38 | 1.5 | |
| RC-55 | 127 | 6.5 | 81 | 216 | 38 | 1.9 | |
| RC-57 | 178 | 6.5 | 114 | 273 | 38 | 2.4 | |
| RC-59 | 232 | 6.5 | 148 | 324 | 38 | 2.8 | |
| RC-101 | 10(101) | 25 | 14.5 | 36 | 90 | 57 | 1.8 |
| RC-102 | 54 | 14.5 | 78 | 121 | 57 | 2.3 | |
| RC-104 | 105 | 14.5 | 151 | 171 | 57 | 3.3 | |
| RC-106 | 156 | 14.5 | 225 | 248 | 57 | 4.4 | |
| RC-108 | 203 | 14.5 | 292 | 298 | 57 | 5.4 | |
| RC-1001 | 257 | 14.5 | 370 | 349 | 57 | 6.4 | |
| RC-1012 | 305 | 14.5 | 439 | 400 | 57 | 6.8 | |
| RC-1014 | 356 | 14.5 | 513 | 451 | 57 | 8.2 | |
| RC-151 | 15(142) | 25 | 20.3 | 51 | 124 | 70 | 3.3 |
| RC-152 | 51 | 20.3 | 104 | 149 | 70 | 4.1 | |
| RC-154 | 102 | 20.3 | 207 | 200 | 70 | 5 | |
| RC-156 | 152 | 20.3 | 309 | 272 | 70 | 6.8 | |
| RC-158 | 203 | 20.3 | 412 | 322 | 70 | 8.2 | |
| RC-1510 | 254 | 20.3 | 516 | 373 | 70 | 9.5 | |
| RC-1512 | 305 | 20.3 | 619 | 424 | 70 | 10.9 | |
| RC-1514 | 356 | 20.3 | 723 | 475 | 70 | 11.8 |
Application of Fine Quality Hydraulic Standard Single-Acting Cylinders

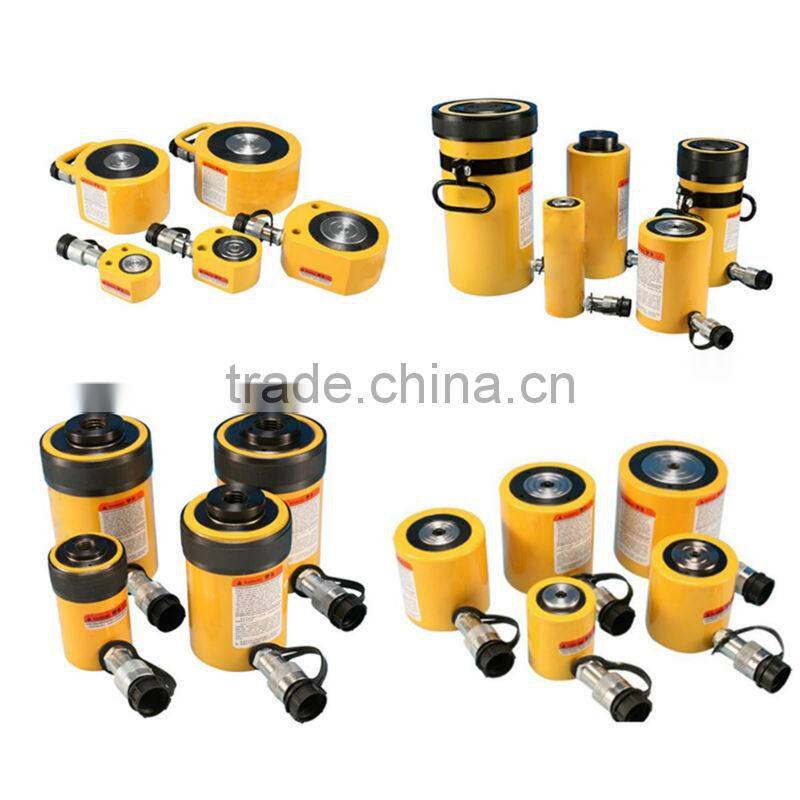

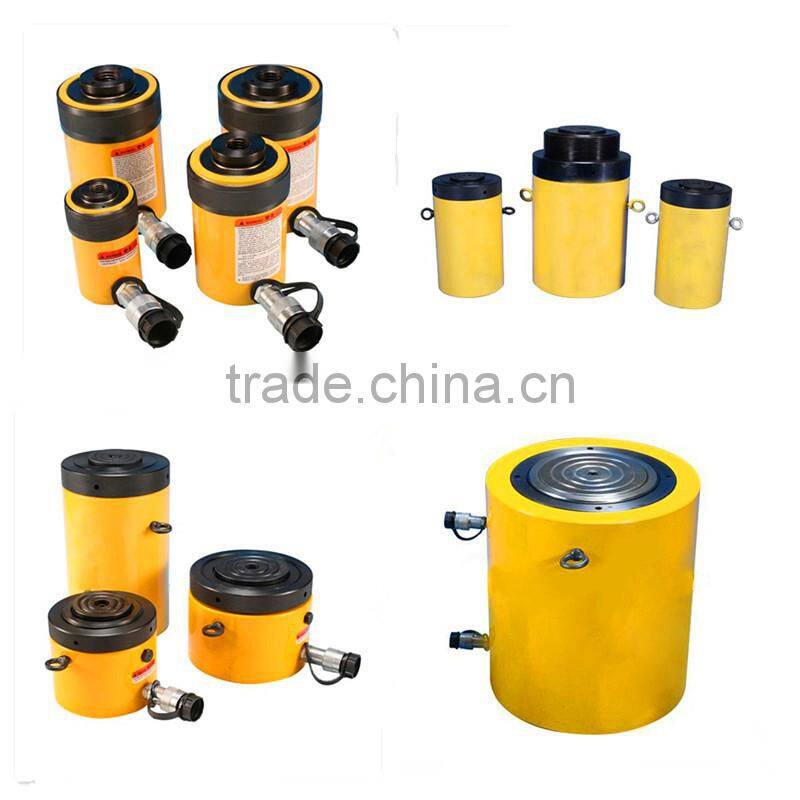

We manufacture different kinds of cylinders as follows:

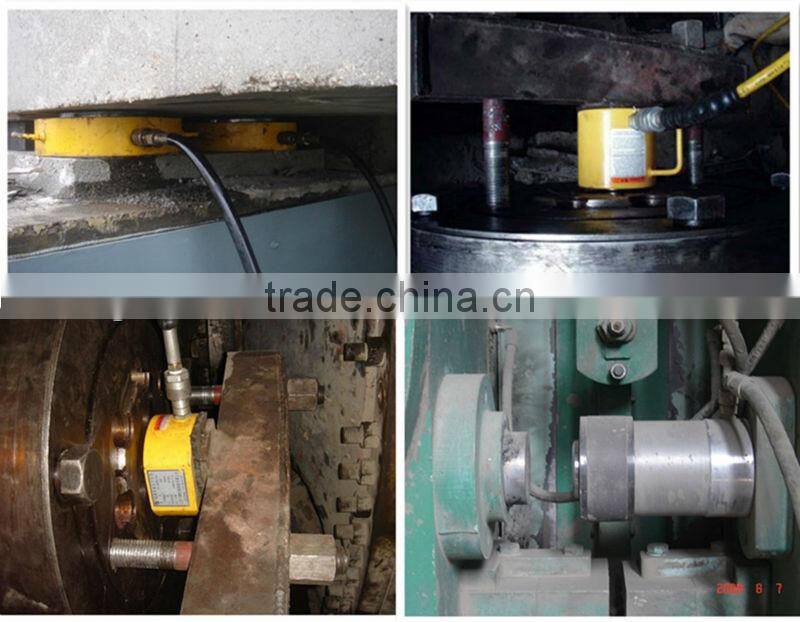

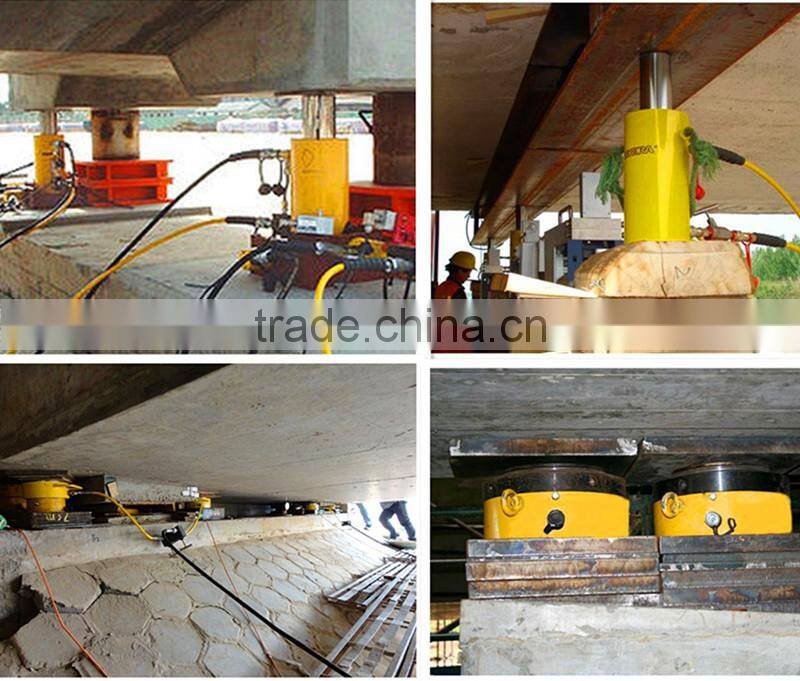

Application of cylinders:
Fine Quality Hydraulic Standard Single-Acting Cylinders
Packaging Detail : Standard wooden cases or plywood
Shipping Detail : in 15 working days after receipt of order conformation
Fine Quality Hydraulic Standard Single-Acting Cylinders
- Tonnage of single acting cylinders: 5,10,15,25,30,50,75,100ton
- Stroke of single acting cylinders: 16-362mm
Fine Quality Hydraulic Standard Single-Acting Cylinders

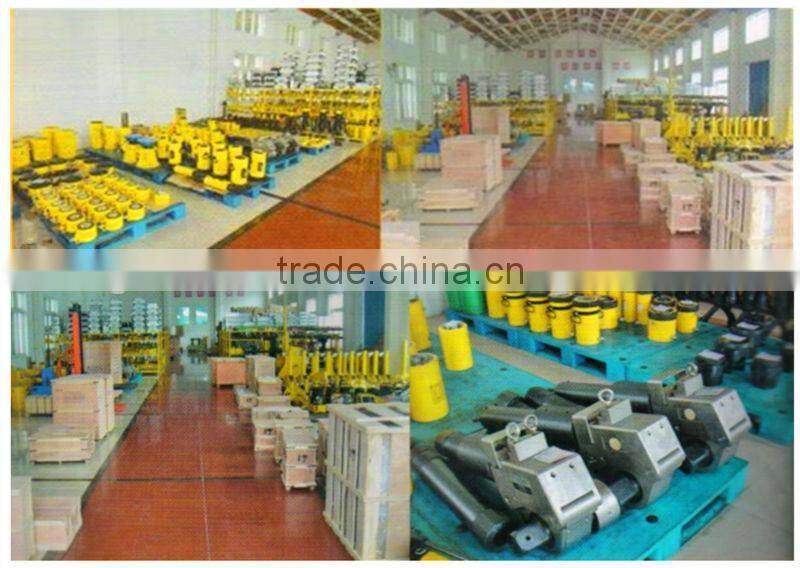

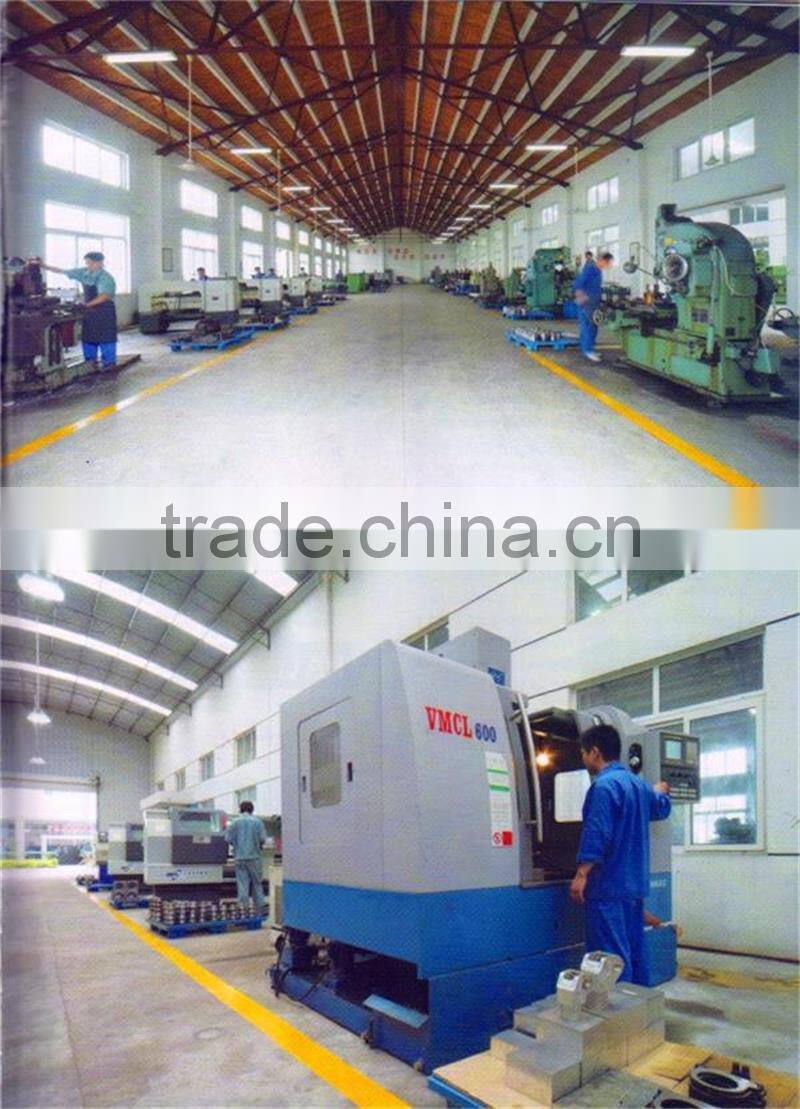

Workshop
Warehouse
Certificate
