DW168NCB Single Head Hydraulic Pipe Bender
- Qingdao.Tianjian.Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | TECH | Model Number | DW168NCB | |
| Machine Type | Pipe and Tube Bending Machine | Raw Material | Pipe | |
| Material / Metal Processed | Alloy | Power | Hydraulic | |
| Automation | Automatic |
Product Description

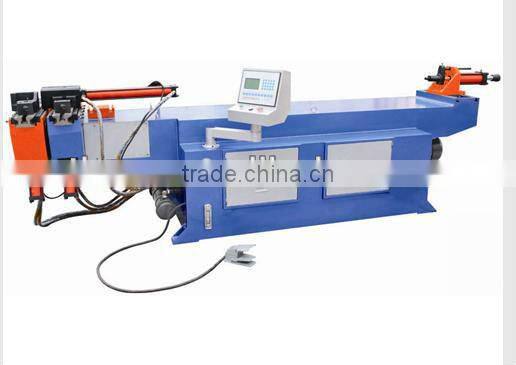

DW168NCB Single head hydraulic pipe bender
Technical Parameters
1.Product by NC contorl ,hydraulic drive,with prefabricated different bending angle.
2.Chinese subtitle display ,man-machine interactive operattion,manual,semi-automatic oeration mode can be chosen arbitrarily,movable pedal switch,emergency stop and start the two functions.
3. Adopting imported hydraulic valve components with high performance (Japan Yuken)
4.Equipped with a cooling system,effective control of the working temperature.
5.The machine has the advantages of convenient opreation,stable performance,high work efficiency,high safety coefficient,is ideal equipment for pipe processing industry.
Model | DW168NCB |
The maximum bending diameter × Wall thickness | Φ168×20mm |
The maximum bending radius | R800mm |
The minimum benging radius | R90mm |
The maximum bending angle | 190° |
Standard through core length | 6500mm |
Control system | Micronmputer |
The max allowable number of ellbow pipe fittings | 16 units |
Can store the bumber of components | 16×16units |
Hydraulic motor power | 25kw |
The max pressure system | 16Mpa |
Hydraulic control system | Electromagnetic |
Fuel tank capacity | 800L |
Machine size | 12500×1650×1600mm |
The weight of the machine | 13000kg |
High performache mdium bending machine,bending speed,using NC control ,multiple sets of programs,much angle setting ,make your operation more convenient and program setting,Wide application ,can be used for mass productiongor standradized products,such as the exhaust pipe,the seat,the bumper and all steel furniture etc...
