TK-51 electric construction machinery portable CNC pipe bender
Henan Taike Industrial and Equipment CO.,LTD. is a factory who is specialized on producing steel bar, steel tube processing machinery in China. The main products include steel bar bender, tube bender, steel cutting machine, straightening and cutting machine etc.
Tk-51 pipe bender
Electric type tube bending machine is drived by motor power to achieve bending tubes,
- 1. Mechanical transmission parts
Adopt independent research design,transmission by gear box, durable, strong intensity
- 2. Circuit control section
Adopt advanced design embedded microcomputer intelligent control system,digital angle adjusting,simple operation
Machine data
Model |
TK-38 |
Bending diameter |
Max.dia 38mm Max.wall thickness 3mm |
Bending speed |
10 to 12 r/min |
Bending angle numbers |
9 |
Max bending degree |
180 |
Min bending degree |
5 |
Motor power |
3KW |
Machine size |
920*650*850mm |
Machine weight |
210kgs |
Model |
TK-51 |
Bending diameter |
Max.dia 51mm Max.wall thickness 3mm |
Bending speed |
4 to 6 r/min |
Bending angle numbers |
9 |
Max bending degree |
180 |
Min bending degree |
5 |
Motor power |
3KW |
Machine size |
930*680*850mm |
Machine weight |
260kgs |
Model |
TK-76 |
Bending diameter |
Max.dia 76mm Max.wall thickness 3mm |
Bending speed |
3 to 5 r/min |
Bending angle numbers |
9 |
Max bending degree |
180 |
Min bending degree |
5 |
Motor power |
4KW |
Machine size |
940*750*850mm |
Machine weight |
300kgs |
Machine features
- 1. Machine performance stable
- 2. Smart chip control , fast response , high sensitivity, you can set the intelligent control system
- 3. Using encoder to control angle , running angle accuracy, high repeatability , minimal error
Application
Furniture manufacturing industry, gate processing industry, fitness equipment industry , the pipeline industry , decoration industry , car parts manufacturing industry , recreational equipment industry
1. Packing ways: Standard export packing.
2. Shipping: by sea.
Machine warranty is one year.

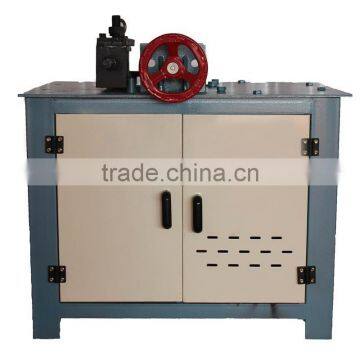

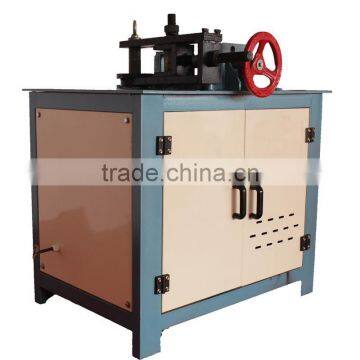

Photo for pipe bender
