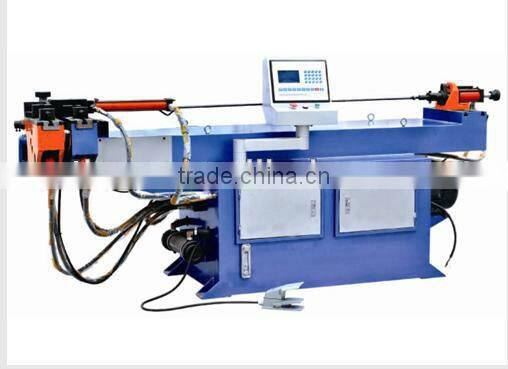

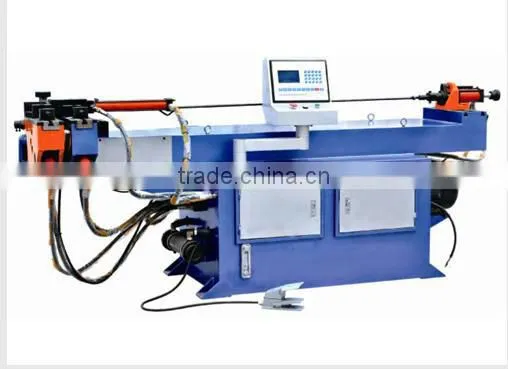

DW18NC Single head hydraulic pipe bender
Technical Parameters
1.Product by NC contorl ,hydraulic drive,with prefabricated different bending angle.
2.Chinese subtitle display ,man-machine interactive operattion,manual,semi-automatic oeration mode can be chosen arbitrarily,movable pedal switch,emergency stop and start the two functions.
3. Adopting imported hydraulic valve components with high performance (Japan Yuken)
4.Equipped with a cooling system,effective control of the working temperature.
5.The machine has the advantages of convenient opreation,stable performance,high work efficiency,high safety coefficient,is ideal equipment for pipe processing industry.
Model | DW18NC |
The maximum bending diameter × Wall thickness | Φ18×1.8mm |
The maximum bending radius | R75mm |
The minimum benging radius | R8mm |
The maximum bending angle | 190° |
Standard through core length | 1500mm |
Control system | Micronmputer |
The max allowable number of ellbow pipe fittings | 16 units |
Can store the bumber of components | 16×16units |
Hydraulic motor power | 2.2kw |
The max pressure system | 10Mpa |
Hydraulic control system | Electromagnetic |
Fuel tank capacity | 80L |
Machine size | 1800×600×800mm |
The weight of the machine | 450kg |
