Home > Products > Concrete processing machine > ZN35T 1 meter length rubber Concrete vibration hose
ZN35T 1 meter length rubber Concrete vibration hose
- 10000 Piece / Pieces per Month
- Shanghai port
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | SYNWIN | Model Number: | ZN35T |
Type: | Other, Inserted type | Drive Mode: | Electric Vibrator | Frequency: | ≥183HZ |
Vibrating Amplitude: | ≥12mm | Length of Flexible Shaft: | 1M,1.2M,1.5M,2M | Voltage: | 380V |
Power(W): | 1.1KW,1.5KW,2.2KW | Weight: | 4KGS | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |

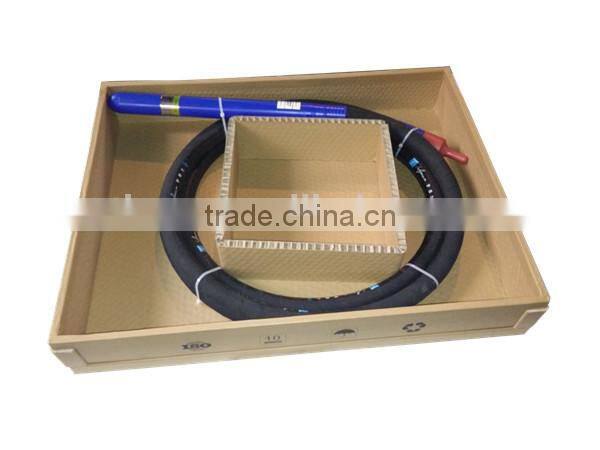

Packaging Details
Carton box in 1200*80*80mm
Product Description
ZN35T 1 meter length rubber Concrete vibration hose
Production Features:
- 1. Vibrator Hose connector is made of 45# steel material,new design exterior,not easy to drop off,more strengthen and longer life.
- 2. Tube cover is made of 45# steel, Quenching HRC22-25,durable and good fire performance
- 3. Connecting type:HAYASHI COUPLING(JANPANESE),DANAPAC COUPLING(MALASIA),AND CHINESE COUPLING
- 4. Vibrator Hose Diameter: 25MM, 28MM, 32MM, 35MM, 38MM, 45MM, 50MM, 60MM, 70MM.
- 5. Vibrator Hose Length:1M, 1.5M, 2M, 4M, 6M, 8M, 10M, 15M.
Vibrator Hose Data
Model | ZN35T | ZN50T |
Coupling type | Hayashi/Danapac/Chinese | Hayashi/Danapac/Chinese |
Hose head diameter(mm) | 35mm | 50mm |
Hose Length(meters) | 1,1.2,1.5,2 | 4,6,8,10,12 |
Soft tube diameter(mm) | 30mm | 40mm |
Soft shaft diameter(mm) | 10mm | 13mm |
Hose head amplitude | ≥12mm(in air) | ≥24mm(in air) |
Bearing Type | U6200 | U6203 |
Hose weight | 4KGS | 20KGS |
non-loaded amplitude | ≥1.0mm | ≥1.5mm |
No-load vibration frequency | ≥183HZ | ≥183HZ |
Company Profile
Henan Taike Industrial and Equipment Co., Ltd. is specialized manufacturer with a collection of scientific research, production, sales and after-sales service. The main products are various series of steel bar bending machine, the reinforced cutting machine and vibration rammer etc. small mechanical equipment.
Our factory is located in the famous mechanical township Changge (Henan ), covers an area of 20,000 square meters, with more than 300 employees, including more than forty engineers and technicians, 64 sets of precision equipment. Our company introduces domestic foreign advanced technology and processes, which established the international advanced production lines and first-class modern testing base. The company has improved the quality supervision system, superb engineering installation team, and good after-sales service team; let our sales and economic indicators ranking the forefront of the domestic industry. The products are exported to more than thirty countries and regions.
We always adhere to the principle of "Quality best, reputation-based, customer first", determined in the stable development and national customers to establish long-term relationships, in the mutual interference beneficial basis, seek common development and prosperity!
We are seeking sincere cooperation with all interested companies.
Contact Us
- Henan Taike Industrial And Equipment Co., Ltd.
- Contact nameEcho Pang
- Phone0086-0371-86060912
- AddressRoom 703, Lvdi Fenghui Tianxia Building, No. 13, Business Outer Ring Rd., Zhengdong New Area
