LEC GYJ Anchor Cable Prestressing Extrusion Machine
- 1000 Set / Sets per Month
- Shanghai Qingdao Tianjin Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- CAT 2831171 283-1171 2831171 BELT-SERPENTINE Caterpillar 450E, C4.4, C6.6
- Auto Balancing Turnover Spreader Beam for Car Frame/Chassis/Trailer/Flatbed Turning
- SHANTUI JANEOO Sand making building ZSG120-5T
- Main technical parameters of 30m concrete pump truck
- 207 Engine Hydraulic Filter HF6710 AT58368 86542664
- 1 Ton Garden Excavator For Sale
Product Details
Place of Origin: | Henan, China | Brand Name: | LEC | Model Number: | GYJ500 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction:
GYJ series extrusion machine
1. GYJ series extrusion machine is the special equipment of making the P fixed- end anchorage.
2. It is light and simple operation etc, and can squeeze LBM 15P and LBM13P extruding set.
3. For prestressing and post-tensioning use.
4. A set of prestressed equipment used in prestressed concrete anchors.
5. Have a good perfomace and good quality.
The parameter table of GYJ extrusion machine
parameter table of GYJ extrusion machine | |||||||
Model | Rated extrusion pressure | Extrusion hydro-cylinder | Extrusion area of piston | Return area of piston | Stroke of extrusion | Mass | Overall dimension |
KN | Mpa | m² | m² | mm | kg | mm | |
GYJ500 | 495 | 63 | 7.85 ×10-³ | 4.5×10-³ | 150 | 70 | 760×200×200 |
GYJ600 | 565 | 50 | 1.13×10-² | 4.95×10-² | 150 | 50 | 605×195×195 |
YH30 embossing machine
1. YH30 embossing machine is the special extruding equipment of making the fixed-end anchorage, mainly used for extruding the fixed-end of Prestressing strands into pear-shaped scattering shape.
2. After replaced the wedge, it can be used for the other specification of steel strands.
3. YH30 type embossing machine is small in size, light, and easy to operate.
The technical parameter of YH30 embossing machine
Parameter table of YH30 embossing machine | |||||||
Model | Rated stressing pressure | Oil pressure | Return area of piston | Extrusion area of piston | Stroke of extrusion | Mass | Overall dimension |
KN | Mpa | m² | m² | mm | kg | mm | |
YH30 | 30 | 43 | 0.425×10-³ | 0.707×10-³ | 70 | 11 | 560×155×215 |

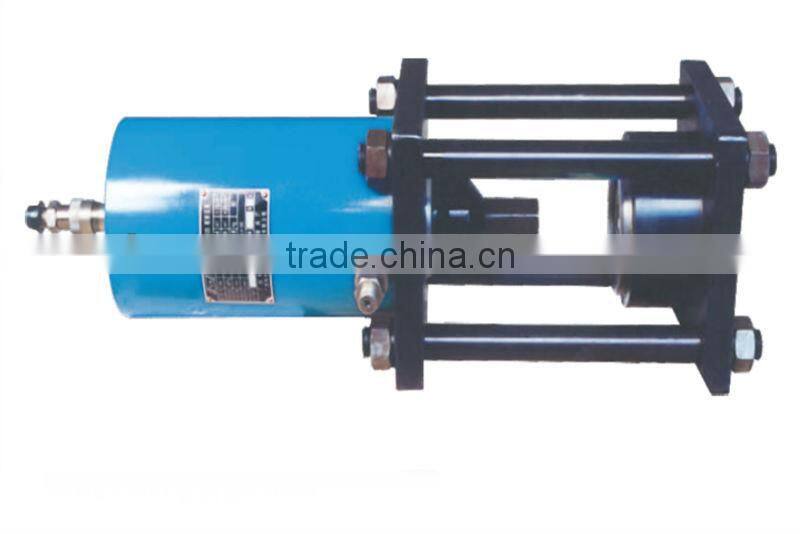

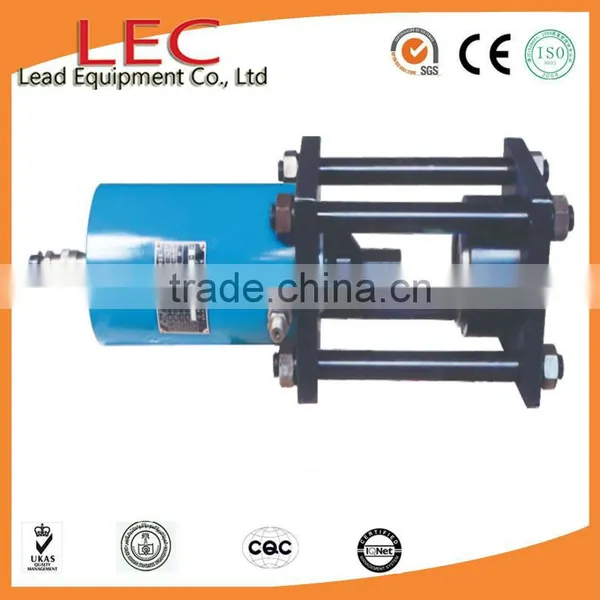

The photos of GYJ series extrusion machine

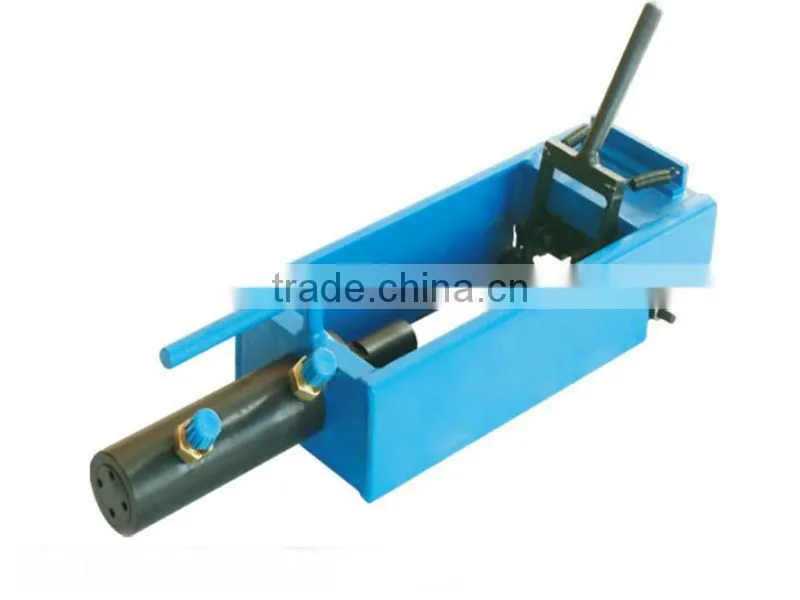

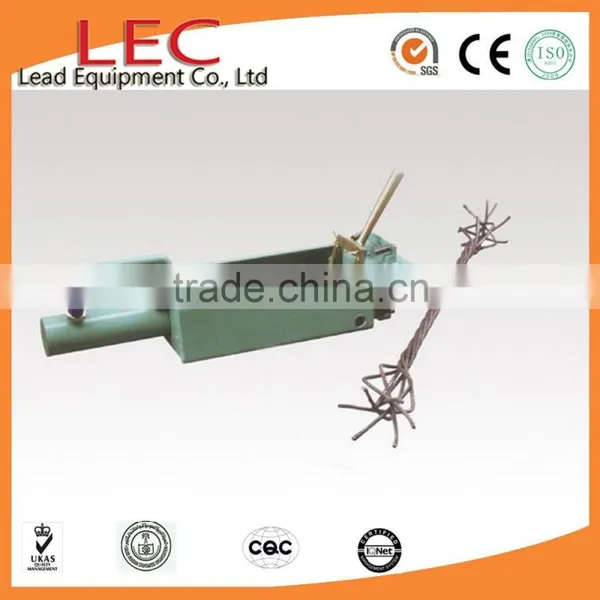

The photoes of YH30 embossing machine

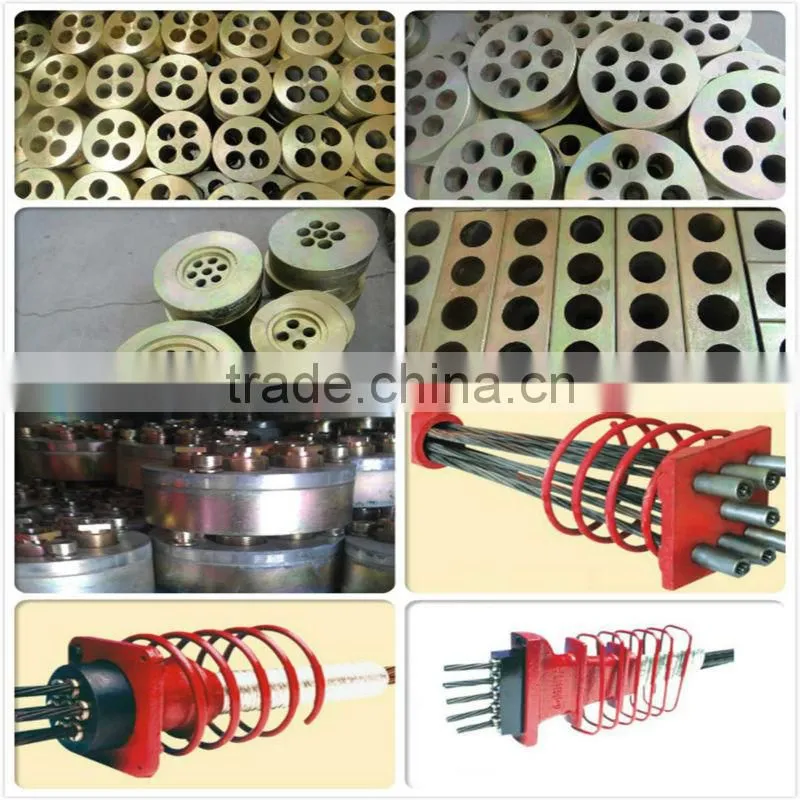

The different kinds of prestressed anchorage

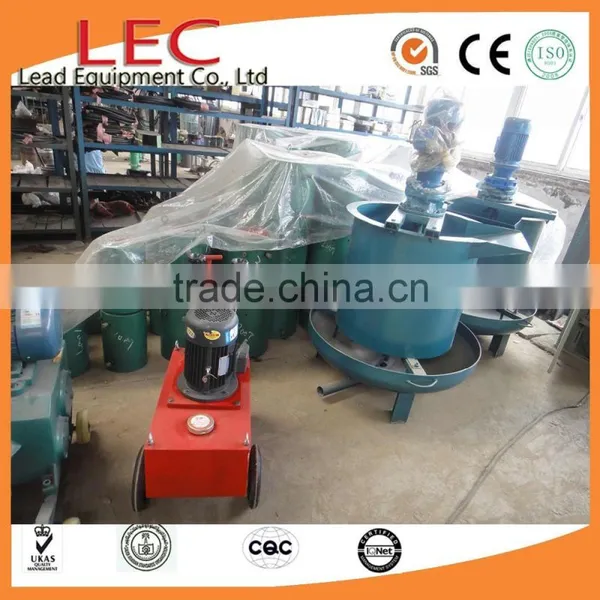

The workers are in prestressed anchorage producton workshop
The work site of prestressed anchorage
