Construction Machinery Mobile Hydraulic Concrete Placement Boom for sale in China
Construction Machinery Mobile Hydraulic Concrete Placement Boom
Product Discription:
Advantages of Mobile Concrete Placing Boom:
It can be placed in any suitable places required without being fixed.
Compact structure, light weight and can be lifted as a whole by a crane.

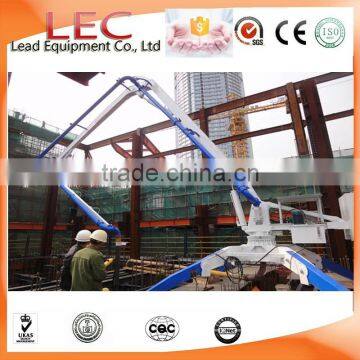

With excellent maneuverability, it can meet the requirements for concrete placement on different job-sites, and is ideal for concrete pumping and placing.
Easy operation, reliable safety and economical purchase.
Construction Machinery Mobile Hydraulic Concrete Placement Boom Technical Data:
Item | Unit | LHB-13 | LHB-15 | LHB-17 |
Horizontal reach | m | 13 | 15 | 17 |
Rotation scope | ° | 0~360 | 0~360 | 0~360 |
Elevation angle | ° | -2 to 84.4 | -4 to 90 | -4 to 90 |
Hydraulic Power | Kw | 4 | 4 | 5.5 |
Hydraulic pressure | Mpa | 20 | 20 | 20 |
Bare machine weight | Kg | 2700 | 3230 | 5000 |
Total weight | Kg | 4300 | 5430 | 7040 |
Working principle of Construction Machinery Mobile Hydraulic Concrete Placement Boom :

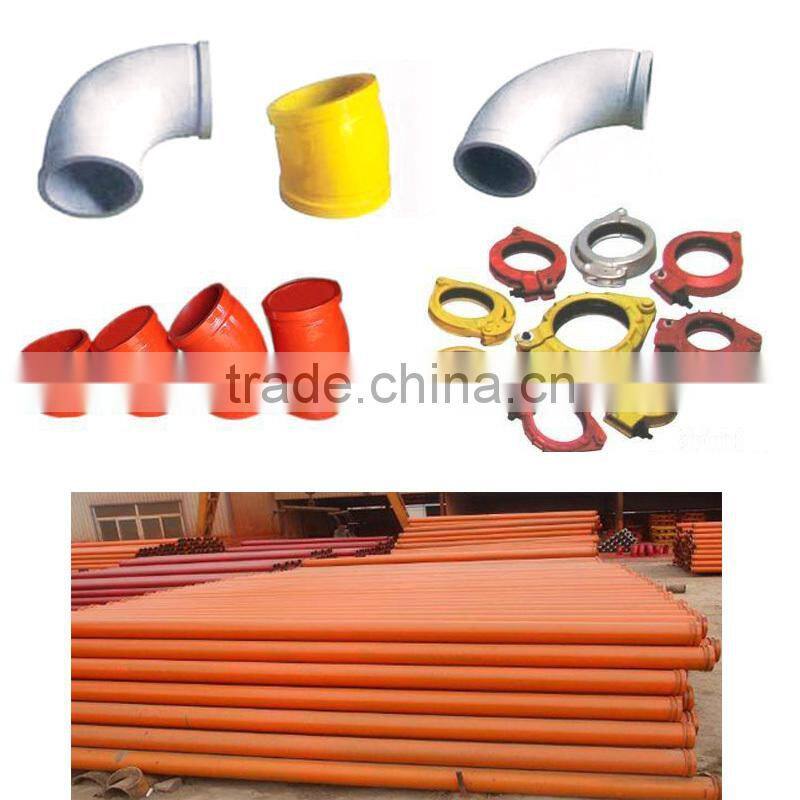

The front of feed bend pipe of concrete placing boom is concected to the end of the matching pipe of the concrete pump, forming a complete conveying pipeline on working. The concrete in the hopper, under the working pressure of the concrete pump, via concrete conveying pipeline and the main beam and the second section of the tube rotating, continuously conveying concrete within the range of the construction site.

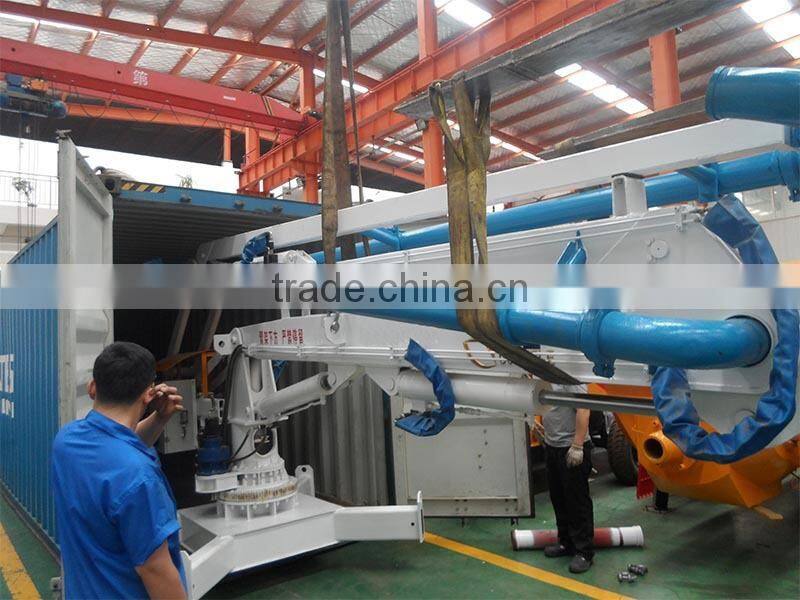

All in nude package.
Concrete Pump
Mortar Pump
Concrete Mixer
For more information, please feel feel to contact us.
