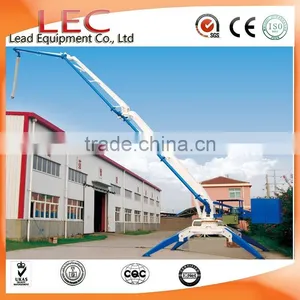

Portable Spider Concrete Placing Boom Placer for sale
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD37000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription of Portable Spider Concrete Placing Boom Placer for sale :
1. LHB-13,LHB-15m, LHB-18m Circle Swinging Concrete Placing Boom , is designed by ourselves company and matching with concrete pump truck and trailer concrete pump equipment. It mainly used for construction of concrete poured on the site, reasonable design, flexible rotation, reliable, concrete pipeline made up from standard pipe diameter and pipe joint, convenient to connect with pump pipe.
2.The movement of boom and its rotating are driven by hydraulic ; it adopts cable control and button operation with the characteristics of stable performance , easy to use , safe and reliable.
3. It has the strong adaptability to meet all kinds of complicated construction environment.
Technical Data of Portable Spider Concrete Placing Boom Placer for sale :
Specification | LHB-13 | LHB-15 | LHB-17 |
Placing radius | 13m | 15m | 17m |
Engine power | 4kW | 4kW | 5.5KW |
System Pressure | 20Mpa | 20MPa | 20Mpa |
Elevation angle | -2~84.4° | 0°~90 | -4°~90° |
Rotation | 360° | 360° | 360° |
Rotation Speed | 0.46r/min | 0.2~0.3r/min | 0.32r/min |
Pipeline diameter | φ125 | φ125 | Φ125mm |
Weight | 2700kg | 3230kg | 5000kg |
Total Weight | 4300kg | 5430kg | 7040kg |
Dimension | 6.5*3.3*2.6m | 8.9*5*2.65m | 10*4.7*3.3m |
Supporting leg dimension | 3150*3150mm | 4000*4000mm | 4000*4000mm |
Working principle of 18m Mobile Concrete Boom Placer Pump:
The front of feed bend pipe of concrete placing boom is concected to the end of the matching pipe of the concrete pump, forming a complete conveying pipeline on working. The concrete in the hopper, under the working pressure of the concrete pump, via concrete conveying pipeline and the main beam and the second section of the tube rotating, continuously conveying concrete within the range of the construction site.
Placing Radius 18m Concrete Placing Boom for Engineering Machinery Parts:
All in nude package of 18m Mobile Concrete Boom Placer Pump:
Concrete Pump match with Placing Radius 15m Concrete Placing Boom:
Thank you for your time, welcome to contact us and visit our facory!
Website:
Whatsapp/Line/Viber: +86-15222060693
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you:
1. What project will you do with the concrete placing boom?
2. What is the placing radius and height of concrete placing boom ?
