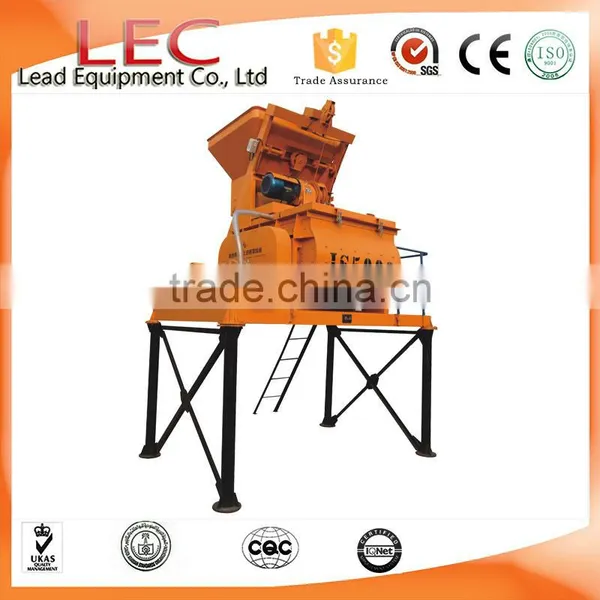

JS500II high efficient concrete mixer machine price
Description of concrete mixer machine
JS series Concrete Mixer produced by our factory is widely used now. JS series concrete mixer is twin shaft compulsory concrete mixer, which can mix dry concrete, plasticity concrete, flowability concrete, light aggregate concrete and various mortar and cement. JS series of concrete mixer we have models: JS500II, JS750 II, JS1000 II, JS1500 II, JS2000 II and JS3000 II.5.
Features of concrete mixer machine:
- Reasonable design, easy to operate and woke stably.
- It is environmentally friendly, high mixing quality, high productivity and short mixing time.
- As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
- Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
- High manganese wear-resisting cast steel lining board and mixing blades which is durable and convenient to replace.
- This series concrete mixer has the advantages of reasonable design, compact structure, convenient operation, stable working, good mixing quality, high efficiency, low energy consumption, low noise and long life wearing parts, etc.
Technician data of concrete mixer machine:
Model | JS500II | JS750II | JS1000IIc | JS1000IIb |
Charging volume | 500L | 750L | 1000L | 1000L |
Discharge volume | 800L | 1200L | 1600L | 1600L |
Aggregate sizes (Less than) | 80mm | 80mm | 80mm | 80mm |
Working circle | 52s | 52s | 52s | 52s |
Productivity (more than) | 25m3/h | 35m3/h | 60m3/h | 60m3/h |
Power | 1*18.5KW | 1*30KW | 1*37KW | 2*18.5KW |
Stand voltage and frequency (can Customized) | AC380V/50HZ | AC380V/50HZ | AC380V/50HZ | AC380V/50HZ |
Electromagnetic directional valve voltage | / | / | / | AC220V/DC24V |
Motor speed | 1450rpm | 1450rpm | 1450rpm | 1450rpm |
Main shaft Speed | 36rpm | 28rpm | 32rpm | 28rpm |
Dimensions (L x W x H) | 2160*1790*1160mm | 2460*1880*1400mm | 2830*2050*1535mm | 2760*1950*1530mm |
Note: Working circle time means sum of lifting time and mixing time and discharge time.
Model | JS1500II | JS2000II | JS3500II.5 |
Charging volume | 1500L | 2000L | 3000L |
Discharge volume | 2400L | 3200L | 4500L |
Aggregate sizes (Less than) | 80mm | 80mm | 80mm |
Working circle | 52s | 52s | 52s |
Productivity (more than) | 90m3/h | 120m3/h | 180m3/h |
Power | 2*30KW | 2*37KW | 2*55KW |
Stand voltage and frequency (can Customized) | AC380V/50HZ | AC380V/50HZ | AC380V/50HZ |
Electromagnetic directional valve voltage | AC220V/DC24V | AC220V/DC24V | AC220V/DC24V |
Motor speed | 1450rpm | 1450rpm | 1450rpm |
Main shaft Speed | 26rpm | 26rpm | 26rpm |
Dimensions (L x W x H) | 2750*2310*2100mm | 3165*2310*2100mm | 4150*2480*2150mm |
Note: Working circle time means sum of lifting time and mixing time and discharge time.
Application of concrete mixer machine:
It can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When working with PLD series aggregate batcher, it can form a concrete batching plant and a simple mixing plant which can be used for various kinds of large, medium or small prefabricated factory, construction sites, roads, bridges, airports and tunnels etc.
Concrete Pump
Mortar Pump
Concrete Mixer
Concrete Mixer Plant
For more information about concrete mixer machine price, please email us
