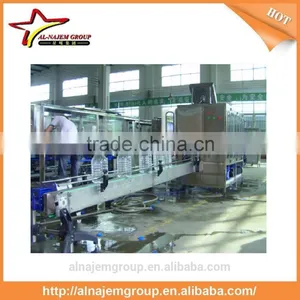

Automatic 5 liter Bottle Washing Filling Capping Machine
This device is made of high quality SS304 main frame, applied imported electric elements of famous brand and high efficiency pumps to ensure stability operation and reliability of the machine. With the 3 in 1 function of bottle inner washing filling and capping.
The operation procedures of Microcomputer Auto Bottle Washer and Filler is from the bottle entering - disinfectant washing - tap water washing - bottle dropping down - bottle seated on the bottle erecting - pure water filling - cap-aligning - capping - output of filled bottle. All of them are controlled by PLC with the functions of automatic finish, precise orientation, little manpower and low working intensity. The complete set of equipment is manufactured by high-strength stainless steel materials and stainless plate steel with precise argon arc, little distortion and fair welding veins. The conveying component structures with stainless steel to assure normal running of the device under various conditions. Nonmetallic components are manufactured elaborately by wearable materials, such as nontoxic PP plastic, etc. In order to make the performance of the device more stable, most of conveying electromotor and booster pump are those products for exportation and electrical components manufactured elaborately by imported series of products or name brand series of products at home.
Configuration
Model: | XG-100/J-5 | XG-200/J-5 | XG-300/J-5 | XG-400/J-5 | XG-800/J-5 |
Volume:L | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 |
Capacty:b/h | 60-150 | 200-300 | 350-400 | 450-600 | 800-1000 |
Model | XG-100/J-5 |
Capacity | 60-150 Bucket per hour |
Bottle size: | 3-10L |
Function: | Washing, filling , capping |
Working system | Floating rotary filling system |
PLC control system | LG, Korea |
Conveyor belt | Inlet bottle:1m Outlet bottle:1m |
Washing head | 1 head |
Filling head | 1 head |
Capping head | 1 head |
Size | 4200*1100*2030mm |
Weight | 350kg |
