5 gallon pure water filling machine
Specifications

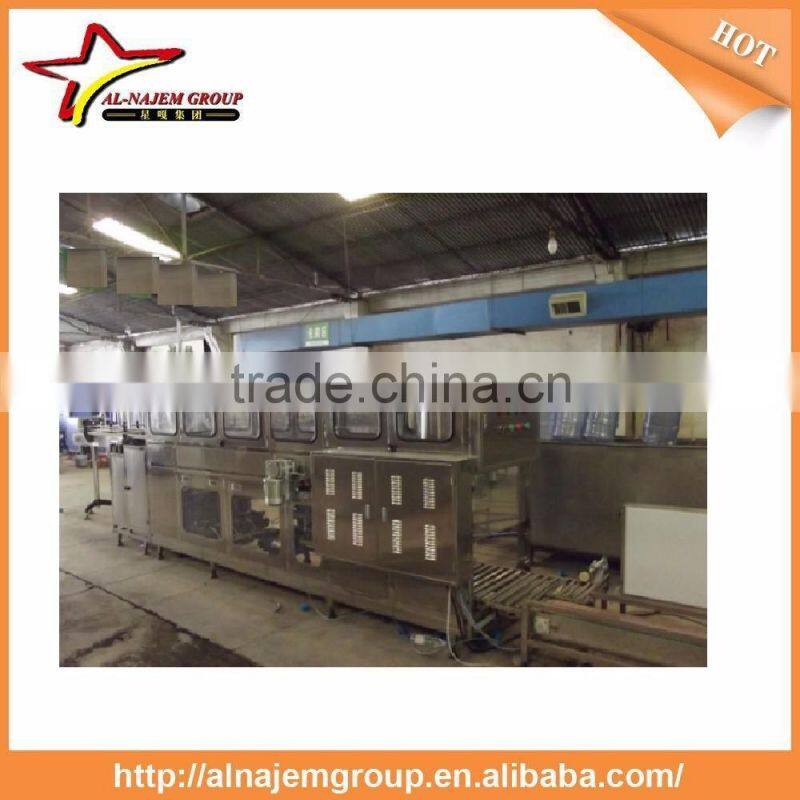

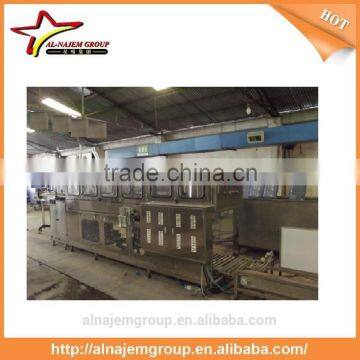

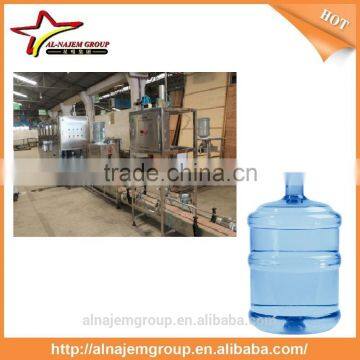

Mineral / pure drinking water production line
This is a complete set of automatic equipment 5 gallons of water production controlled by the PLC system and the use of imported electrical components, and the capacity is limited to 300 bottles per hour, the production line and including intems related as follows:
A typical production process of the line 5gallon bottled drinking water production:
Water purification system RO - Automatic Decapper - external / internal bottle washers - Bottle feeding machine - bottle rinsing filling and capping machine - label shrinking machine.
Technical themes:
Capacity: 100 bottles per hour (for 5 bottle gallon / 20L)
Suitable bottle Format: 3-gallon, gallon, 5, 12L 20L bottles
The standard voltage level: three stages :, 50HZ 380V; single-phase: 220V, 50HZ
Material: High-grade 304 stainless steel (thickness of 1.5mm 1.0mm-)
Water treatment solution: RO water purifier with a capacity of 2000 liter system in the whole production line, including time and without machinery:
1, reverse osmosis 6000L / H system (Dow Flimtec menbrane, and the high efficiency of the pump CNP)
2, automatic caps (LEED) machine withdrawals JBG-1 (300BPH)
, Automatic Washer 3 empty bottle of internal and external brush: JNWS-1
4. Automatic Loader empty bottle: JSP-1
5. Automatic 5 gallon bottle inside the automatic rinsing / Packing / capping machine: XG-J / 100 (300BPH)
6. Automatic caps and cleanse the system of doses: JSG-1
7. Automatic machine sleeves and hats shrinking seal: FK-2
8.Air compressor system for the line packing 300BPH (piston type of non-oil air compressor LP) LB30100

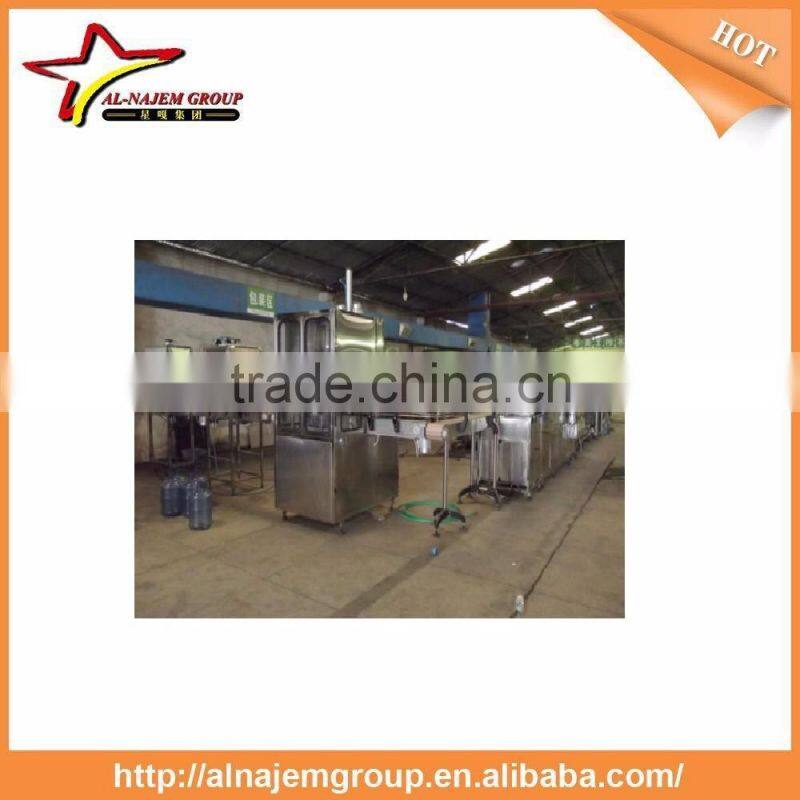

Draw a complete production line

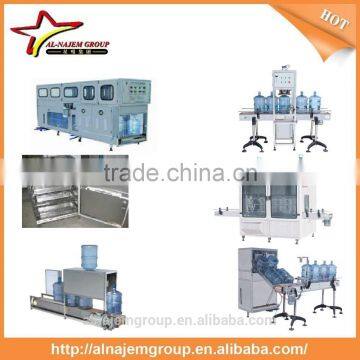

Photos and specifications of all varieties

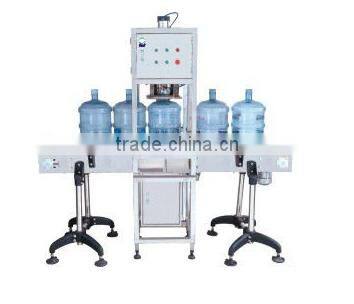

1. Automatic bottle Decapper FEATURES:
1) The control of information technology and the completion of the PLC automatically through orientation minutes with little manpower and low-density work.
2) The complete set of equipment of high tension steel materials, stainless steel plate and steel argon arc with flour manufactured, distortion welding rare vascular and beauty.
3) In order to make the device more stable performance, the electrical components manufactured elaborately by a series of imported products or brand series of products in the home name.
4) Body material: SS304.
Technical Parameter:
Ability | 200-300B / H |
Bottled dimension | 1) Dia270 × 490 × Dia56mm 2) × 415 × Dia230 Dia56 mm |
Cover specifications (mm) | Dia58 × 40 (Strip: L18mm, W: 7.5mm) |
Power input: | 1.15kw; AC380V ± 5%, 50HZ |
Size | 475 × 655 × 1750 (mM) |

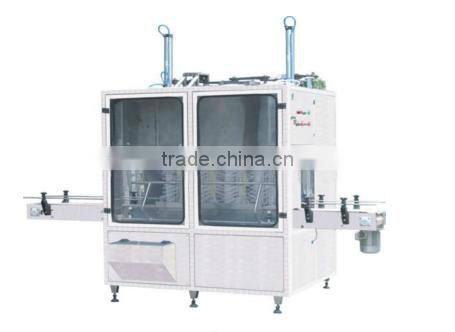

2. Automatic bottle of internal and external washing machine
Features:
1) This internal and external machine to wash the bottle 5 gallons of recycled, which is necessary for the machine empty bottle before washingt drinking water production line, combined with a simple structure, easy and good performance rubbing process.
2) the worker process: cleaning and washing water brush
3) with the brand of electrical components imported to ensure the reliability of the machine
4) Reliable and efficient performance of the work
5) Body material: SS304.
Technical parameter:
Ability | 200-300B / H |
Bottled dimension | 1) Dia270 × 490 × Dia56mm 2) × 415 × Dia230 Dia56 mm |
Cover specifications (mm) | 58 × 40 (Strip: L18mm, W: 7.5mm) |
Power input: | 2.5kw; AC380V ± 5%, 50HZ |
Size | 1650 × 960 × 1945 (mm) |

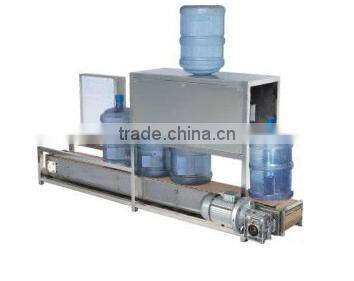

3. Automatic bottle bearing an empty FEATURES:
1) The device works the main components of electrical appliances and fabricated metal materials by the brand name factories from home and abroad.
2) ease of operation and reliable performance.
3) beautiful appearance, anti corrodibility, comprehensive and effective disinfection of air pollution control and high quality.
Technical Parameter:
Ability | 200-300B / H |
Bottled dimension | 1) Zia 270 × 490 × Dia56mm 2) × 415 × Dia 230 Dia 56 mm |
Cover specifications (mm) | 58 × 40 (Strip: L18mm, W: 7.5mm) |
Power input: | 0.5kw; AC380V ± 5%, 50HZ |
Size | 2000 × 500 × 1100 (mm) |

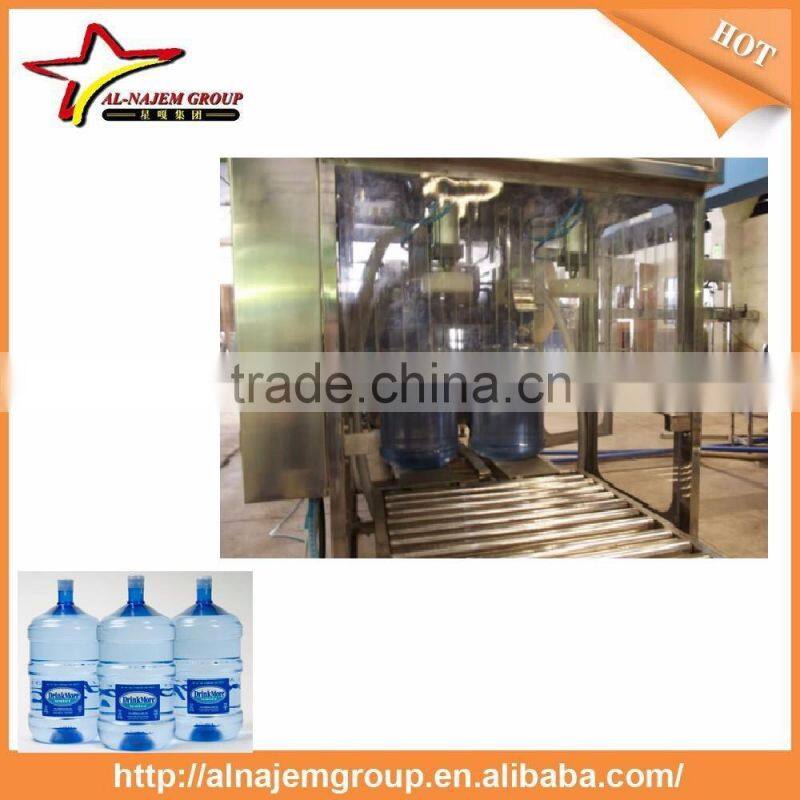

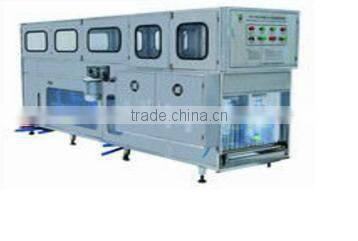

4. automatic bottle rinsing filling and capping FEATURES:
1) controlled by the PLC with the functions of automatic finish, precise orientation, little manpower and low-intensity work machine.
2) The complete set of high equipment strength stainless steel materials and stainless steel plate argon arc manufactured with precise, distortion little welding blood vessels and fair
3) beautiful appearance, anti corrodibility, comprehensive and effective cleansing to combat air pollution and high quality
4) bottle Automatic washing machine minute filler capper one unit in.
5) Body material: SS304.
Technical Parameter:
Items | Specification | |
Production capacity | 300Buckets / hour | |
Bottle capacity | 18.9 liters (about 5 gallons) | |
| 11.3 liters (a gallon is equal to 3) | |
Bottle Specification (mm) | Φ270 × 490 × Φ56 | |
| Φ230 × 420 × Φ56 | |
Cover specifications (mm) | Φ58 × 40 (Strip: L18mm, W: 7.5mm) | |
Rated input power | 4.0KW | |
Energy Electricity | Bottle Convey cars | 0.37KW |
Pressure washing water pump | 0.37KW | |
Disinfectant washing pump | 0.37KW * 3 | |
Wash pump pure | 0.37KW | |
Fill the stomach | 0.55KW*2 | |
Cap electric harmonization | 0.06 KW | |
Power supply | AC 380V 50HZ ± 5% | |
Current rating | 28A | |
Net Weight | 450kg | |
Outer size | 3830 x970x 1600 (mm) | |
The condition of the air compressor | 0.1 M ³ ³ 0.17 M / min 0.8Mpa / Cm ² | |
Water supply condition | 7.5M 3 / H | |
Work Position | Double row six bottle washing plants, two to fill, namely to put a limit | |
| And the first and second third leg: Washing disinfectant
The four stations: drip dry
Fifth Station: tap water washing
Sixth Station: pure water washing | |

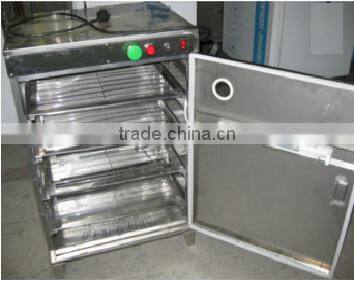

5. sterile cup
6. Automatic steam sealing machine
(1) Function characteristics:
Shrink film around the cap, and the extension of storage time.
(2) Technical Parameter:
Capacity: | 200-300 B / H |
Power: | 4.4KW; 16A |
Dimension (mm) | 2000x400x980 |
Weight: | 55KG |
