Gas-shielded flux cored welding wire 1.2mm
Introduction:
It is a kind of titania type CO2 gas-shielded flux-cored welding wire. It has excellent welding performance, soft and stable arc, fewer spatters, good slag detachability and beautiful appearance of weld. Suitable for downhand welding and horizontal welding. All-position welding. It has high welding efficiency. The weld metal has been given toughening treatment by microelements, so it has excellent low temperature toughness above -40℃ and good crack-resistance.
Uses:
Used for welding structures made of low temperature steel and low-alloy structural steel. Widely used for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels, storage tanks, petroleum machinery, chemical machinery, ocean structures, etc.
Chemical composition (%)
Mechanical Properties of weld Metal
Reference Current (DC+)
Wire Diameter(mm) | φ1.2 | φ1.4 | φ1.6 |
Downhand Welding | 120~300 | 150~400 | 180~450 |
Vertical Upward Welding and Overhead Position Welding | 120~260 | 150~270 | 180~280 |
Vertical Downward Welding and Overhead Position Welding | 200~300 | 220~300 | 250~300 |
Horizontal Welding | 120~280 | 150~320 | 180~350 |

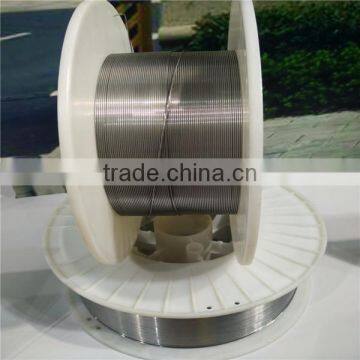

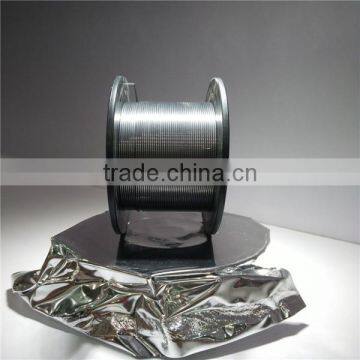

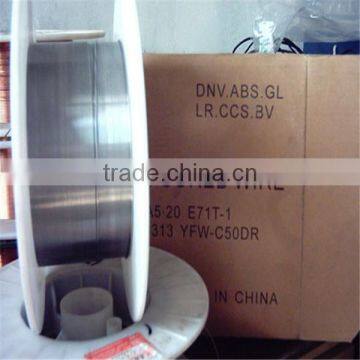

Flux cored welding wire

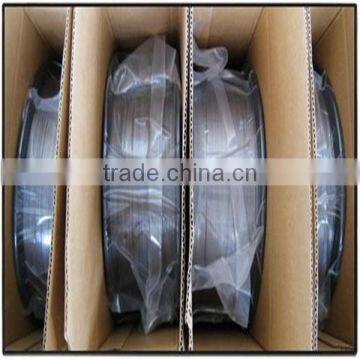

1.Precision layer wound on plastic spool, each spool in a box, then boxes on wooden pallets.
1kg D100mm plastic spool ,then 1000spools per pallet
5kgs D200mm plastic spool; then 200spools per pallet
(5kg/ carton, 200cartons/ pallet, total 1000kgs/ pallet, 20-24pallets/ 1×20′ FCL)
15kgs/ 18kgs/ 20kgs D270mm plastic spool.(15kg/ carton, 72 cartons / pallet, total 1080kgs/ pallet, 20-23pallets/ 1×20′ FCL)
15kgs/ 18kgs/ 20kgs K300mm metal spool.

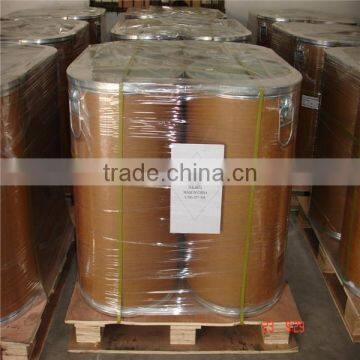

2. 250kg drum, 4 drums in one pallet;
350kg drum, 2 drums in one pallet
3. Or according to your specific requirement.
Samples:
Supply you one spool 3-5kg wire free of charge to test the quality , Postage will be on the customer’s charge. But postage could be deducted from the first order.
Inspection:
Full-Inspection before delivery. Third party inspection: BV SGS CCIC COC CIQ all accepted .
Information Needed to Get a Quotation:
Model, Diameter, Packing and Quantity, such as Welding Wire E71T-1 1.2mm 15kgs/D270 plastic spool, 21.6 tons
How to place order?
Flux cored welding wire manufacturing process

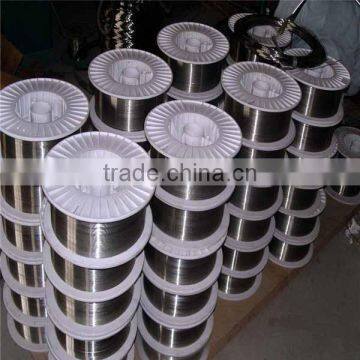

Flux cored welding wire Warehouse and production capacity
Flux cored welding wire
Q: How does your factory do regarding quality control?
A: We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE,NK,BV,GL,LR,ABS,TUV,DB certificates.
Q: How many days it will take you to produce mass production for us?
A: Usually it takes about 7 to 15 days, it also depends on the quantity and production seasons.
Q: Where is your factory located? Can I visit there?
A: Our factory is located in Tianjin City, China, near to Beijing. You are warmly welcomed to visit us!
Q: Are samples available?
A: We are happy to provide free samples to you after you accept our quotation and really want to cooperate with us.
Q: Is OEM available?
A: Yes, because we usually do it like that.
