Home > Products > Welding electrodes > China Welding Electrode Manufacturer E7018 Welding Rod 3.2mm,stainless Steel Welding Electrode
China Welding Electrode Manufacturer E7018 Welding Rod 3.2mm,stainless Steel Welding Electrode
- XINGANG CHINA
- T/T
You May Like
-
New Products Specification Welding Electrode E7018,welding Electrodes Aws a 5.1 E7018
-
China Suppliers 7018 2.5mm Royal Welding Electrodes
-
Welding Electrodes E6013 Golden Bridge,aws Welding Electrode Specification,welding Electrode Brands
-
PND630 Steel Spool /bobbin/reel
-
China Manufacturer Metal Spools K300 15-20kg for Welding Wire
-
15KG Steel Spools for Wire Spool Winding Machine
Product Details
| Place of Origin | Tianjin, China | Brand Name | X & Z E7018 stainless steel welding electrode | |
| Model Number | E7018 stainless steel welding electrode | Material | Stainless Steel | |
| Length | 300mm 350mm 400mm 450mm | Operating Current | 50-240A | |
| Welding Current | 60-90, 90-120, 120-150 | Operating Temperature | normal | |
| Diameter | 2.0mm 2.5mm 3.2mm 4.0mm 5.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm | Application | Welding carbon steel materials, AC and DC in all position |
Product Description
China welding electrode manufacturer E7018 welding rod 3.2mm,stainless steel welding electrode
1,Good Description
China welding electrode manufacturer E7018 welding rod 3.2mm,stainless steel welding electrode
1. Model No.: Welding Electrodes AWSE7018
2. Available size:2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm
3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
4. Delivery time: Within 15 days after confirmation
5. Application: It is used on both AC and DC in
all position and suitable for welding important structures made of low alloy steel.
Mechanical Properties of Deposited Metal E7018
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) |
Guarantee Value | ≥490 | ≥400 | ≥22 | ≥27(-30°C) |
General Result | 520~580 | ≥410 | 24~30 | 80~200 |
Reference Current (AC, DC+)
Electrode Diameter(mm) | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Welding Current (A) | 60~100 | 80~140 | 110~210 | 160~230 |
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P | Ni | Mo | Cr | V |
Guarantee Value | ≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.08 |

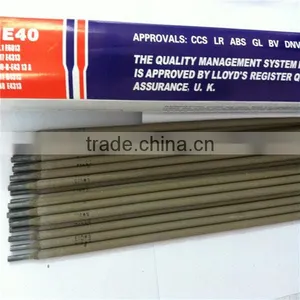

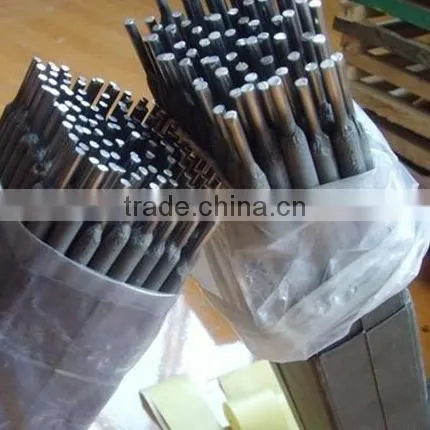

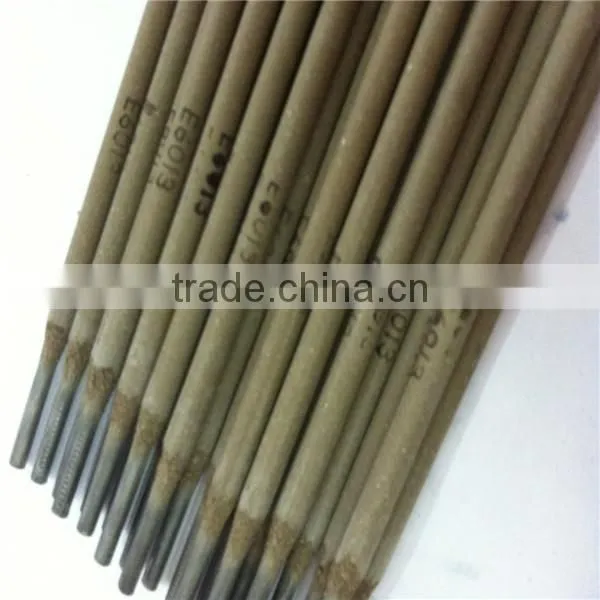

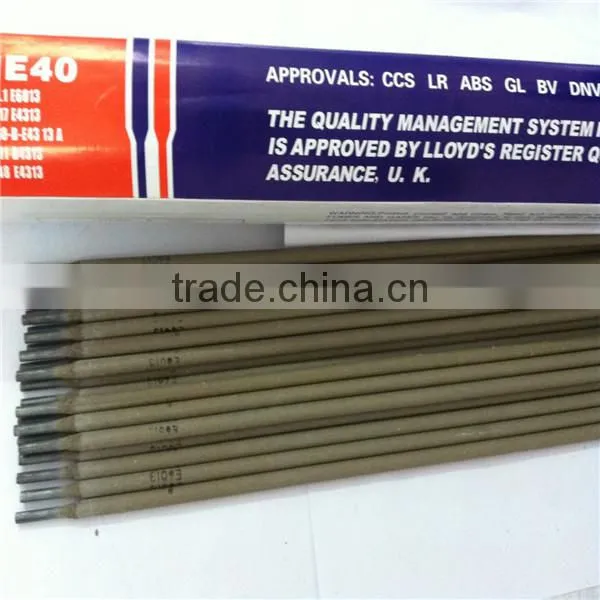

2,Product Pictures
China welding electrode manufacturer E7018 welding rod 3.2mm,stainless steel welding electrode
3,Packaging & Shipping
China welding electrode manufacturer E7018 welding rod 3.2mm,stainless steel welding electrode
Welding electrode E7018 Packaging
2.5mm:2.5kg/box, 20kg/box, 2tons/pallet.
3.2mm:5kg/box, 20kg/box, 2 tons/pallet.
4.0mm:5kg/box, 20kg/box, 2 tons/pallet.
5.0mm:5kg/box, 20kg/box, 2 tons/pallet.
4,Company nformation
China welding electrode manufacturer E7018 welding rod 3.2mm,stainless steel welding electrode
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design, manufacture industry professional technology of highly sophisticated products
5,Our Service
China welding electrode manufacturer E7018 welding rod 3.2mm,stainless steel welding electrode
Xuzhi company product scope:
(1) Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
(2) Flux cored wire complete line manufacturing
(3) Hardfacing & stainless steel etc special flux cored wire product manufacture
(4) Provide high quality2roll-type and 3roll-type of roller die cassette for the following types of customers:
1) flux cored wire manufacturer
2) solid wire manufacturer
3) rebar manufacturer
4) Metal products related company, such as: nail making, welding nets, wire rope, reinforcement wire, Electric wire and cable, non-ferrous metal products, etc.)
(5) Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
(6) Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
(7) Metal products auxiliary machine manufacturing (such as: various types of pointing machine)
(8) Food machinery and pharmaceutical machinery manufacturing
