Cast Iron Welding Rod Easy ARC China Welding Electrodes

Tianjin Xuzhi Machinery & Electrical Equipment Co., Ltd.
Cast Iron Welding Rod Easy ARC China Welding Electrodes thumbnail-1
Cast Iron Welding Rod Easy ARC China Welding Electrodes thumbnail-2
Cast Iron Welding Rod Easy ARC China Welding Electrodes thumbnail-3
Cast Iron Welding Rod Easy ARC China Welding Electrodes thumbnail-4
Cast Iron Welding Rod Easy ARC China Welding Electrodes thumbnail-5
Cast Iron Welding Rod Easy ARC China Welding Electrodes thumbnail-6
Cast Iron Welding Rod Easy ARC China Welding Electrodes photo-1
Cast Iron Welding Rod Easy ARC China Welding Electrodes photo-2
Cast Iron Welding Rod Easy ARC China Welding Electrodes photo-3
Cast Iron Welding Rod Easy ARC China Welding Electrodes photo-4
Cast Iron Welding Rod Easy ARC China Welding Electrodes photo-5
Cast Iron Welding Rod Easy ARC China Welding Electrodes photo-6
US$ 400 - 900 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
X & Z Welding electrode E6013
Model Number:
E6010, E6011, E6013, E7018
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Tianjin, China
Brand Name X & Z Welding electrode E6013
Model Number E6010, E6011, E6013, E7018
Material Stainless Steel
Length 300mm 350mm 400mm 450mm
Operating Current International Standard
Welding Current 40-230A
Operating Temperature Standard Temperature
Diameter 2.5mm,3.2mm,4.0mm,5.0mm
Application Welding carbon steel materials

China welding electrodes

1,Good Description

China welding electrodes

Chemical composition of E6013



Chemical Composition

C

Mn

Si

S

P

Guarantee Value

≤0.12

0.3-0.6

≤0.35

≤0.035

≤0.040







Mechanical Properties of Deposited Metal







Test Item

Rm(MPa)

ReL(Mpa)

A(%)

KV2(J)

KV2(J)

Guarantee Value

≥420

≥330

≥17

-(normal temperature)

-(0℃)







Reference Current (AC, DC)







Electrode Diameter(mm)

φ2.0

φ2.5

φ3.2

φ4.0

φ5.0

Length(mm)

300

300(350)

350

400

400

Welding Current (A)

40~70

55~95

80~130

120~180

160~230

V-up, OH

35~60

45~90

60~120

100~160

120~200

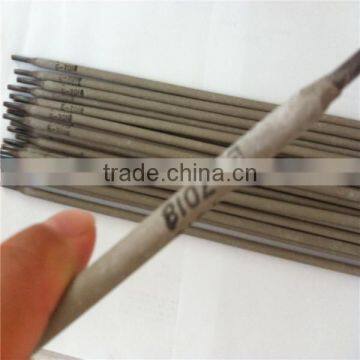

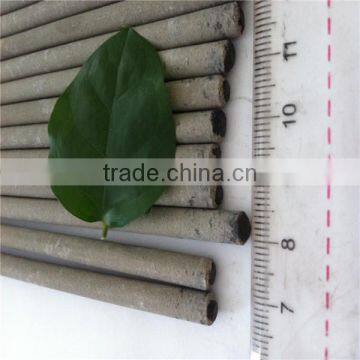

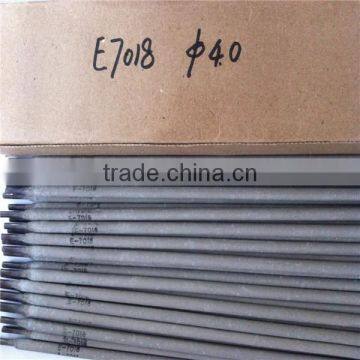

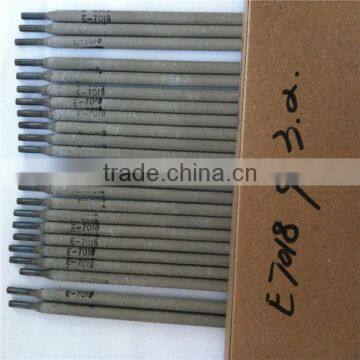

2,Product Pictures

China welding electrodes

Cast iron welding rod easy ARC China welding electrodes

3,Packaging & Shipping

China welding electrodes

Cast iron welding rod easy ARC China welding electrodes



Welding electrode E6013 Packaging

2.5mm:2.5kg/box, 20kg/box, 2tons/pallet.



3.2mm:5kg/box, 20kg/box, 2 tons/pallet.



4.0mm:5kg/box, 20kg/box, 2 tons/pallet.



5.0mm:5kg/box, 20kg/box, 2 tons/pallet.



4,Company nformation

China welding electrodes



Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design, manufacture industry professional technology of highly sophisticated products

5,Our Service

China welding electrodes



Xuzhi company product scope:
(1)   Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
(2)    Flux cored wire complete line manufacturing
(3)   Hardfacing & stainless steel etc special flux cored wire product manufacture
(4)   Provide high quality2roll-type and 3roll-type of roller die cassette for the following types of customers:
1)     flux cored wire manufacturer
2)     solid wire manufacturer
3)     rebar manufacturer
4)     Metal products related company, such as: nail making, welding nets, wire rope, reinforcement wire, Electric wire and cable, non-ferrous metal products, etc.)

(5)   Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
(6)   Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
(7)   Metal products auxiliary machine manufacturing (such as: various types of pointing machine)
(8)   Food machinery and pharmaceutical machinery manufacturing

Cast iron welding rod easy ARC China welding electrodes
