Home > Products > Welding electrodes > Atlantic E6013 welding electrodes 300-450mmlength electrodes brass welding rod
Atlantic E6013 welding electrodes 300-450mmlength electrodes brass welding rod
- 200 Ton / Tons per Month
- XINGANG CHINA
- T/T
Product Details
Place of Origin: | Tianjin, China | Brand Name: | Atlantic E6013/E7018/E4043/E310/J422 | Model Number: | E6013/E7018/E4043/E310/J422 |
Material: | Steel Alloy | Length: | 300/350/400mm | Operating Current: | DC AC |
Welding Current: | 60-240A | Operating Temperature: | 5-50 | Diameter: | 2.5/3.2/4.0/5.0mm |
Application: | Low Carbon Steel Structure |
Product Description
Atlantic E6013 welding electrodes 300-450mmlength electrodes brass welding rod
1,Description

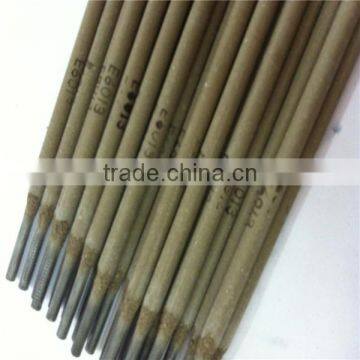

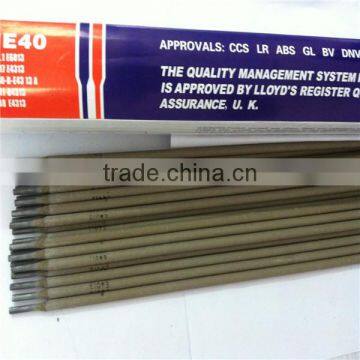

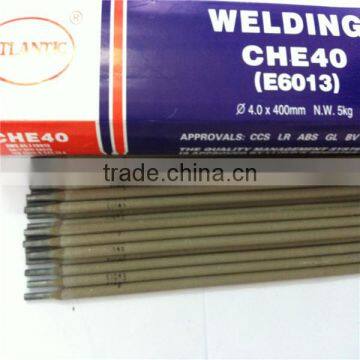

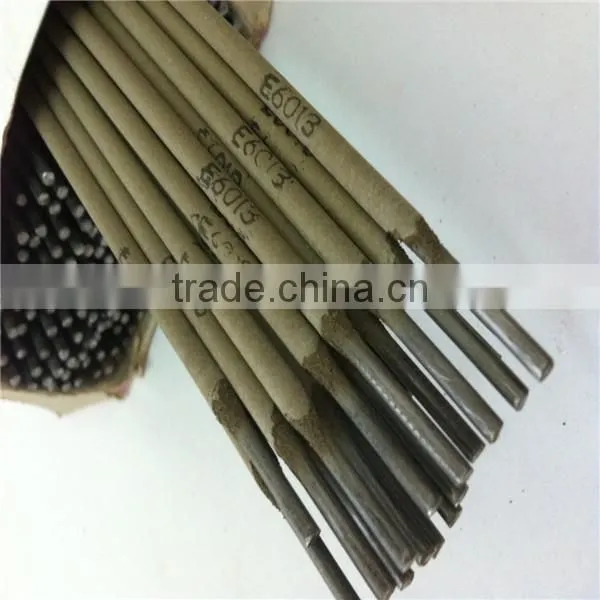

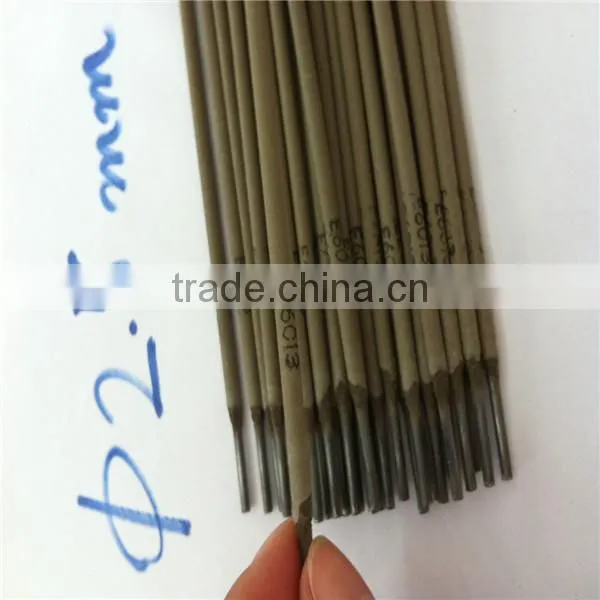

E6013 welding electrodes
Welding electrode E6013 is of low mild steel type electrodes with titanium coating and suitable for both AC and DC. It can weld in all position. Manipulate is free and restrike is easy.
2,Application
E6013 welding electrodes
Welding electrode E6013 used to weld low carbon steel structures, especially suitable for welding thin flat, intermittent shorter welds, as well as some smooth appearance cover.
3,Chemical Composition of Melting Mental(%)
E6013 welding electrodes
C | Mn | Si | S | P |
≤0.12 | 0.3~0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Reference Current
Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | |
Current range(A) | Flat(A) | 40~60 | 60~90 | 90~130 | 140~190 | 190~240 |
Vertical&Overhead | 30~55 | 50~80 | 80~120 | 120~170 | 150~200 |
4,Size
E6013 welding electrodes
3.2mm * 350mm
4.0mm * 400mm
5.0mm * 400mm
5,How to produce
E6013 welding electrodes
E6013 welding electrodes
(Packing : 2.5kg/inner boxes 8 boxes/cartons=20kg)
2.Size: 3.2MM X 350MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
3.Size: 4.0MM X 400MM
Packing: 5.0kg/inner boxes 4boxes/cartons=20kg
4.Size: 5.0MM X 400MM
Packing: 5.0kg/inner boxes 4boxes/cartons=20kg
E6013 welding electrodes
Xuzhi company product scope:
1,Flux cored wire plant project Consulting (including the new factory process design, old factories technology and equipment reform, improve the production efficiency, the new product formula design and development.)
2,Flux cored wire complete line manufacturing
3,Hardfacing & stainless steel etc special flux cored wire product manufacture
4,Provide high quality 2roll-type and 3roll-type of roller die cassette for the following types of customers:
flux cored wire manufacturer
solid wire manufacturer
rebar manufacturer
5,Produce various specifications and types of wire drawing machines used in metal products processing and manufacturing
6,Metal products finished product cleaning machine (such as: steel strip cleaning, machinery parts cleaning, glasses cleaning, and more complex shape metal products finished product cleaning)
7,Metal products auxiliary machine manufacturing (such as: various types of pointing machine,V-type powder mixer,strip slitting machine,argon arc wire butt welder,wire winding machine,drum packaging machine)
8,Potato chips production line
9,Napkin paper productuon line
E6013 welding electrodes
Xuzhi company was founded in 1998. After years of development, now the company already had the mainstream business which shows in the next item.
Except the mother company “xuzhi company”, we have other companies were built according to professional led division, intensive management framework. At present the company development direction is to professional industry chain deep direction. Thus be dedicated to research and development, design.Now TIANJIN THREE WATER is the export company serviced for xuzhi.
