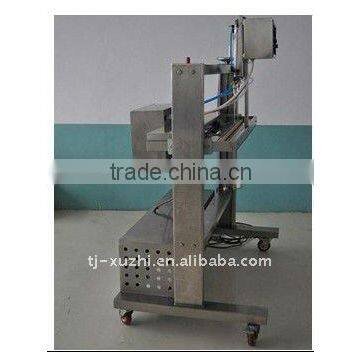

Vertical Type Vacuum Packing Machine

Specifications

Vertical type vacuum packing machine

Main Application

This set of equipment can be applied to solid material, parts and components, bulky grains and so on, such as food, medicine, local specialty, electrical components, instrument and meter, clothing, and it is specialized in packing large or heavy object.

Main characteristics:

1. Easy in operating, examining and maintaining
2. machine body is made of 304 stainless steel featured by corrosion preventive
3. Controlled by singlechip, adjusting conveniently
4. Machine head can be adjusted on the basis of wrappage’s height
5. Equipped with 40 mould vacuum pump manufactured by ZD
6. Double air pump interface, high working efficient
7. Adopting vacuum pump of AIRTAC in Taiwan
8. Conveying belt adopting material imported from Netherland.
9. The main control electrical equipment is imported from Schneider Electric in Germany and OMRON in Japan, with high quality and stable performance.

  Main technical parameters

1. Max vacuum degree: ≤50Pa
2. Vacuum pump: ZD 40 mould
3. Speed of aspirating: 40 m³/h
4. Power: Four wire three phase, 380V 50Hz
5. Power of motor: 2KW
6. Packing capacity: 2-5 times/minute
7. Length of sealing line: 800mm
8. Width of sealing and bonding: 10mm
9. Dimension of outline: 1000(length)*800(width)*1500(height)
10. Weight: about 150
