Specifications
homogenizer tank1.CE,ISO,TUV,SGS
2.Factory price
3.Custom made
4.Quality warrenty

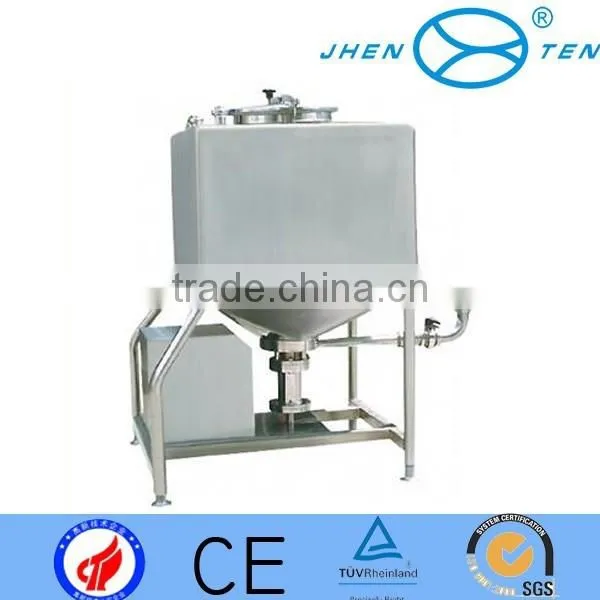

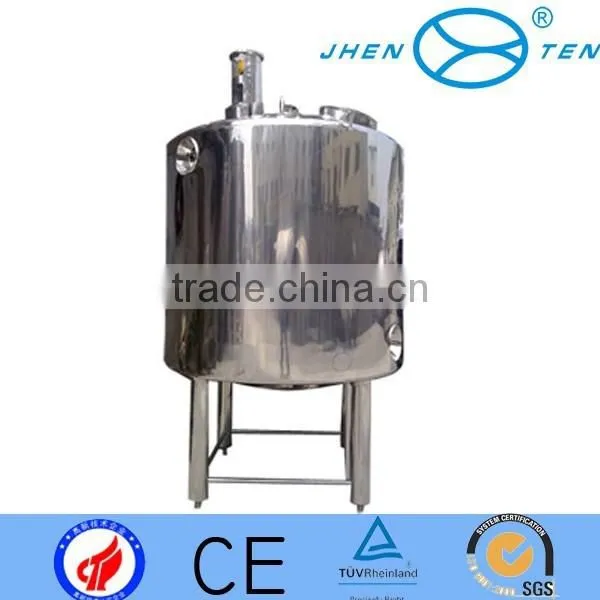

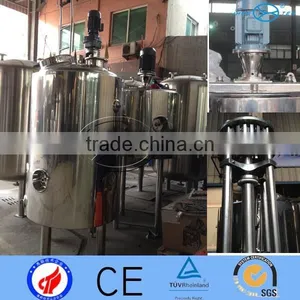

Homogenizer tank
The homogenizer tank is used for mixing all kinds of liquid products,cream homogenizing products in pharmaceutical, food, chemical and biological fields.
Different kinds of agitators for the homogenizer tank:
v Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc...

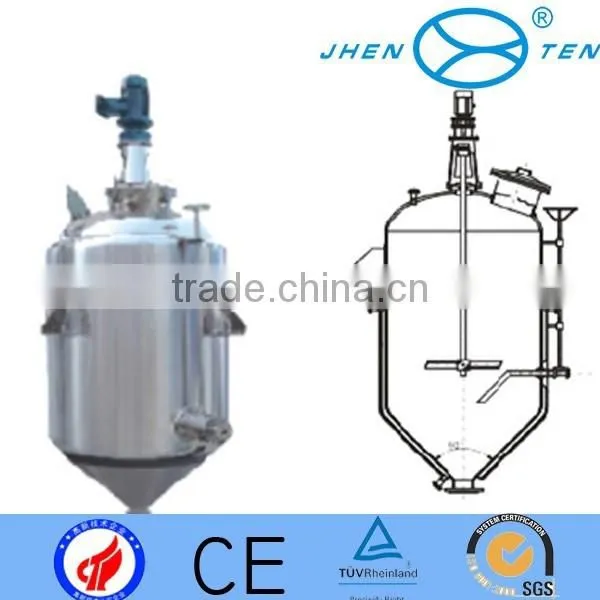

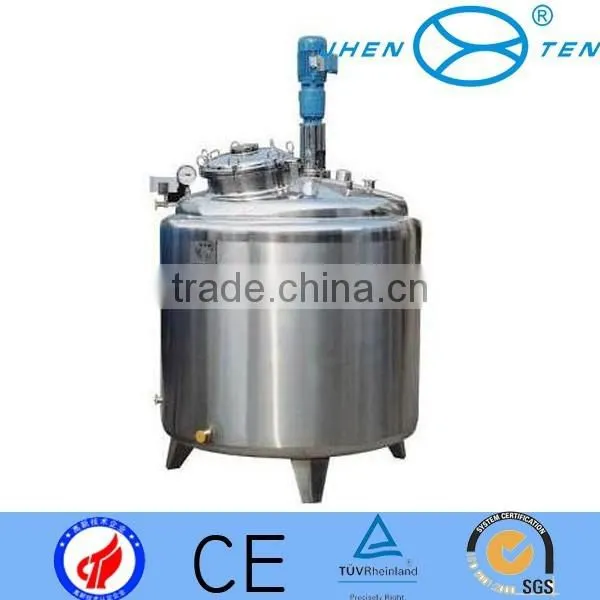

v Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc....
v Emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification etc...
Two agitator can be installed in one tank if it needed.
Description
Specification: 50L~50,000L even larger.
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.6μm by mechanical polish. (passivate or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool

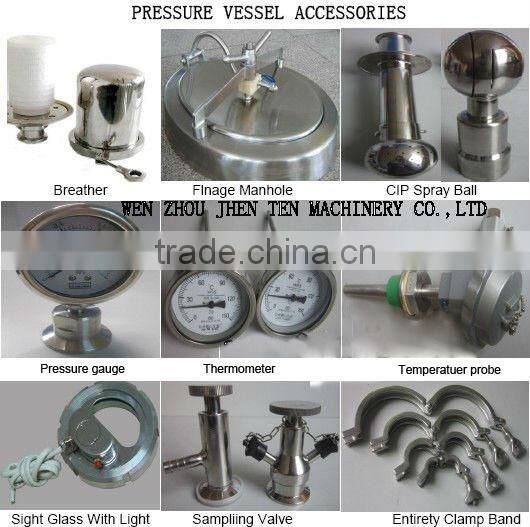

Components can be equipped as request:
standard components: manhole or handhole, sight glass, cleaning ball
optional components:
vent filter with Pall cartridge or china brand cartridge
temp. gauge, display on the gauge directly on the vessel
temp sensor pt100, digital display on the control cabinet by instrument
temp sensor with control for heating and cooling
level gauge with digital display on the control cabinet by instrument
load cell
Homogenizer tank | |
Material: | SS304 or SS316L or Duplex stainless or 904L |
Design Pressure: | -1 -10 Bar (g) or ATM B9 |
Work Temperature: | 0-200 °C |
Volumes: | 50~30000L |
Construction : | Vertical type or horizontal |
Jacket type : | Dimple jacket, full jacket, or coil jacket |
Structure : | Single layer vessel, vessel with jacket, vessel with jacket and insulation |
Heating or cooling function | According to the heating or cooling requirement , the tank will have jacket for requried function |
Opitional Motor: | ABB, Siemens, SEW or Chinese brand |
Surface Finish: | Mirror Polish or Matt polish or Acid wash&pickling or 2B |
Standard components : | Manhole,sight glass , cleaning ball |
Optional components : | Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves |
Applications: | Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial |
