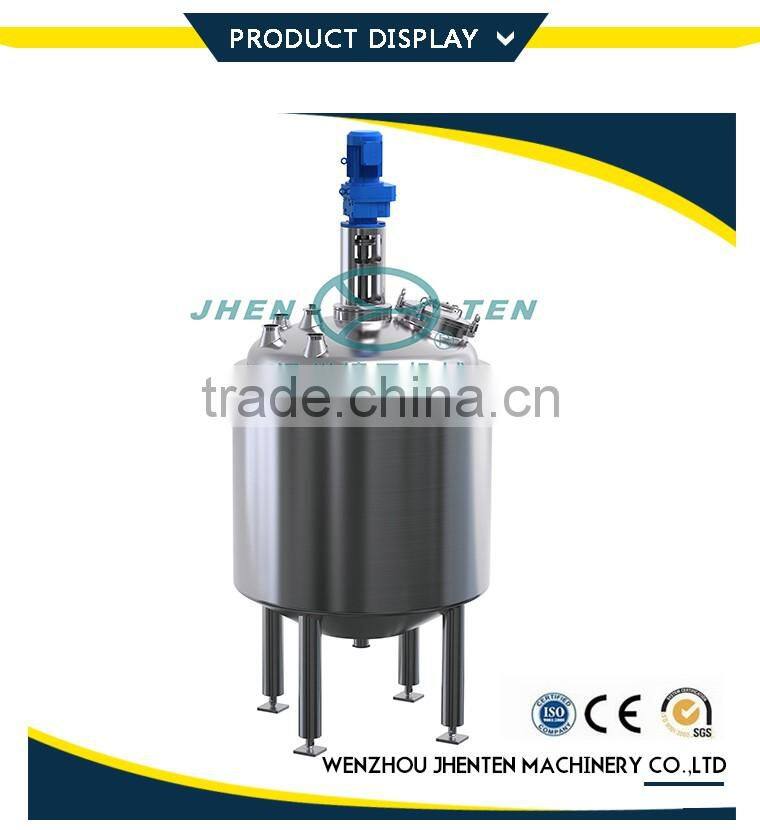

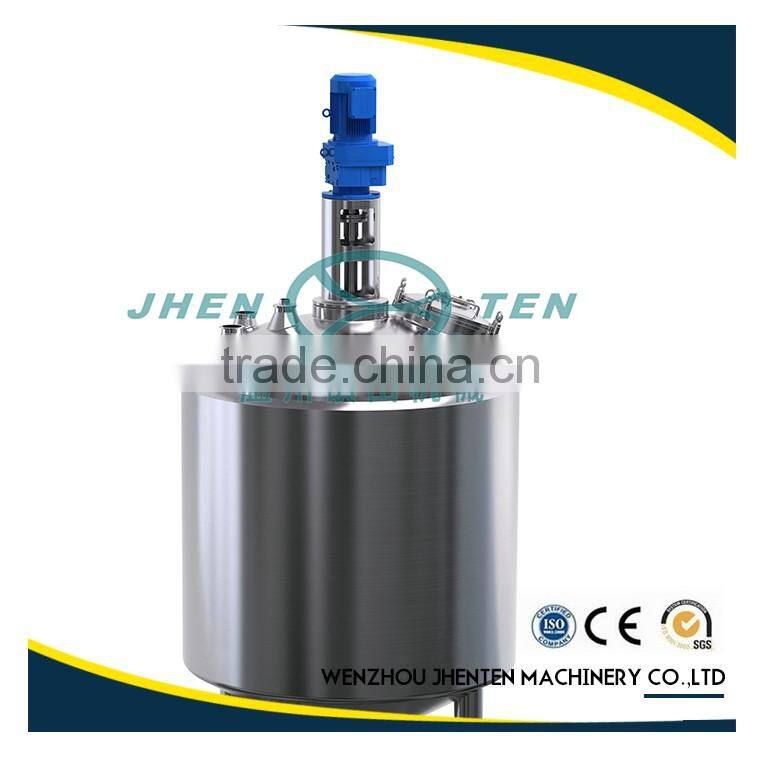

Low Price Hot Sale Chemical Crystallizing Tank Stainless Steel

Feature

• Volume:600L~20000L and multiple specification, also can design and manufacture according to  customers’  requirement.

• Crystallizing Tank can bear 121 ℃ high temperature disinfection,equipped with sanitary pressure gauge.

• Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed  and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).

• The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing  Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’  requirement.

• Agitation adopts top mechanical agitation. Stirring methods(Anchor, frame, stirrer, turbine, etc) can be  selected. The best RPM is about 60r/min.

• The sealing of agitating shaft adopts sanitary mechanical seal. The mixing motor can use Cycloidal reducer,  stepless speed reducer. These items can be selected according to customers’ requirement. (Frequency  control is widely used)

Application

• Apply to industrial material mixing, cooling refrigeration and crystallization of finished productsuch, such as  pharmaceutical,  dairy products, food, chemical, beverage.

Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery .
In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products. We have been meeting global demand of high quality &technical support to our clients.Our products cover from all kinds sanitary filter,cartridge filter, bag filter ,mixing tank ,storage tank etc,which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, mineral water, liquor and cosmetics.

No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system.Besides We have obtained the sanitary license and honour of high quality&honesty from authority.
