Factory Manufacturer Direct Supplied Ss316 Stainless Steel Beer Fermentation Tank

Feature

•   There are 200L-5000L varietys of specifications, it can be designed, customized according to the

customers' requirements.

• Jacket can put into chilled water (or cooling water), jacket is use dimple jacket; Jacketed outside covered with  insulation layer, insulation material is PU (keep cold).

• Connector use fast installation chuck  (clamp), inner tank use SS304 or SS316L, the inner surface mirror  polishing Ra≤0.28μm-0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to

 customer's requirement.

Application

•   Suitable for beer fermentation.

Stainless steel Beer Fermentation tank 's introduction
Jhenten's Beer Fermentation tank is according to ourself process method .
The material is used of high quality stainless steel SS304 or SS 316L (customer 's requirement).
This blending tank is according to JB4735-1997 Produce ,test and use. And it is comply with GMP requirement .Jhenten adopt argon arc welding to eliminate the welding pressure .
Top head and bottom head is shapedby water pressure that can assure sanitary .
All surface are smooth and no roughness .

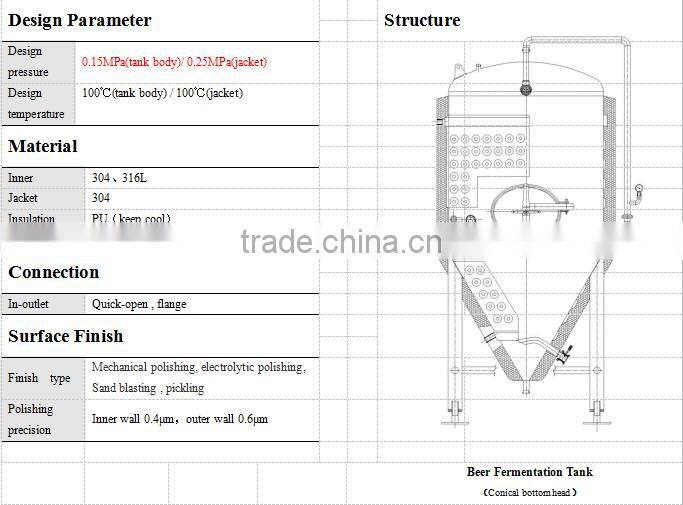

Stainless steel Beer Fermentation tank Specification:

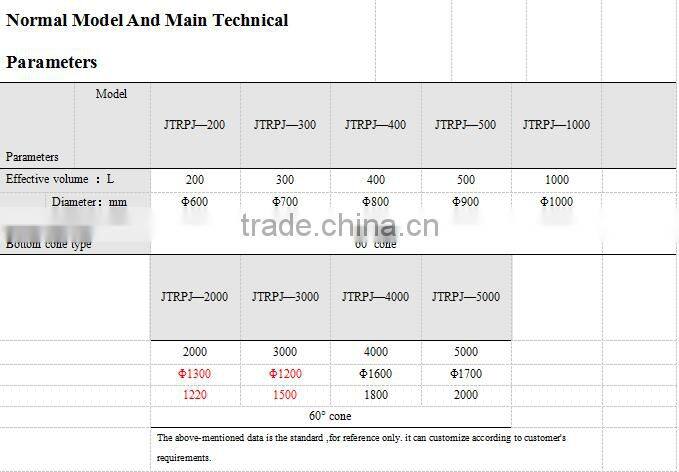

· Brewery tanks from 2-barrels/2.3-hectoliters to 200 barrels/234-hectoliters
· Finishing: mirror polishing or 2B or Matt polished
· Insulation: PU foam jacket on the side and bottom
· Material: high quality stainless steel 304 surface
· Our standard tank design features custom-built true shadowless manways and separate CIP and blow off tubes.
· Our 3mm sidewall and 2mm cladding is available in a number of different finishes.
· Our tank interiors are a 2B finish and sterile polished to 440 grit.
· Our engineers can custom design tanks and vessels to meet the individual requirements of our customers.
· Quality certificate system: ISO9001,CE,NB/T 47003.1—2009

Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery .
In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products. We have been meeting global demand of high quality &technical support to our clients.Our products cover from all kinds sanitary filter,cartridge filter, bag filter ,mixing tank ,storage tank etc,which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, mineral water, liquor and cosmetics.

No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system.Besides We have obtained the sanitary license and honour of high quality&honesty from authority.
