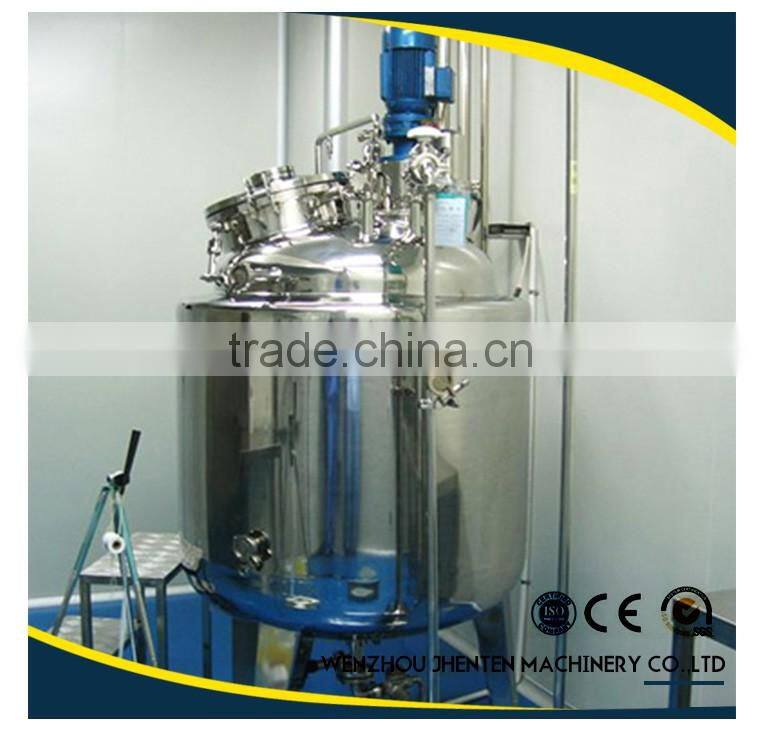

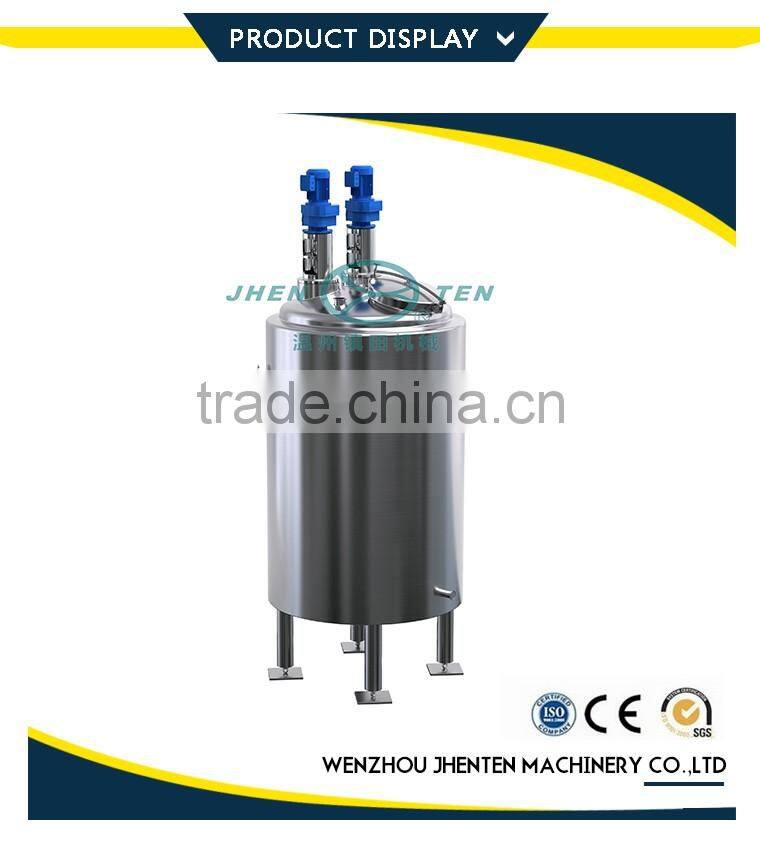

Factory Supply Metal Emulsification Tank for Sale

Feature

• Volume:600L~20000L and multiple specification, also can design and manufacture according to customers’  requirement.

• Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed  and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU   (cold).

• The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing  Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’  requirement.

• Agitation adopts top mechanical agitation. Stirring methods(Push type, screw, anchor, etc) can be selected.

• The sealing of agitating shaft and emulsification shaft adopt sanitary mechanical seal. The mixing motor can  use Cycloidal reducer, stepless speed reducer. These items can be selected according to customers’ requirement.   (Frequency control is widely used)  Emulsion motor adopts frequency control of motor speed reducer

Application

• Suitable for cosmetic, medicine, food, chemical, dyeing, printing ink and other industrial production,  especially for high matrix viscosity, solid material content higher material preparation emulsion will be more efficacy.

Design Parameter

Design pressure:Tank body according to the customers' requirements(0.02MPa~0.8MPa)

                                  Jacket according to the customers' requirements(0.02MPa~0.5MPa)

Design temperature:Tank body, Jackets according to the customers' requirements(0℃~160℃)

Surface Finish

Finish type:Mechanical polishing, electrolytic polishing,Sand blasting , pickling

Polishing precision:Inner wall 0.4μm,Outer wall 0.6μm

Material

Inner tank:304,316L

Jacket:304

Insulation layer:Rock wool ( keep warm ) or PU ( keep cool )

Feet:304

Connection

In-outlet:Quick open , Flange

Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery .
In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products. We have been meeting global demand of high quality &technical support to our clients.Our products cover from all kinds sanitary filter,cartridge filter, bag filter ,mixing tank ,storage tank etc,which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, mineral water, liquor and cosmetics.

No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system.Besides We have obtained the sanitary license and honour of high quality&honesty from authority.
