Cheap price ISO 9001 stainless steel tubular beer filterstorage tank

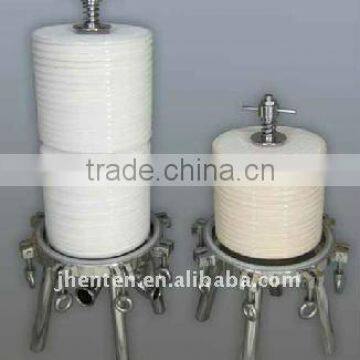

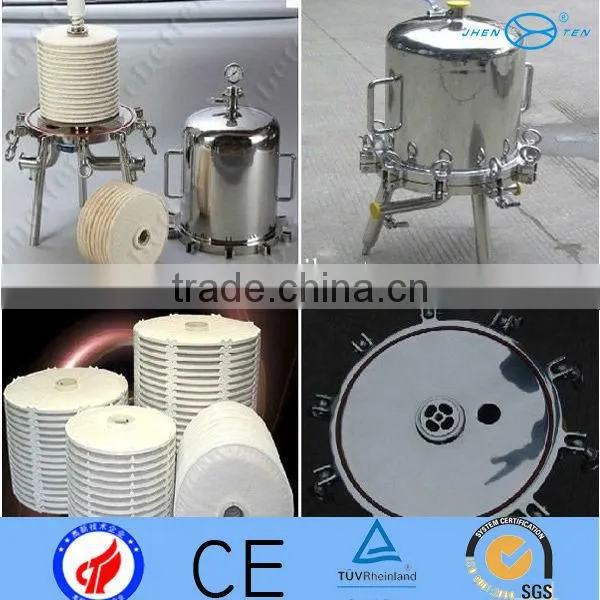

lenticular filter housing Brief introduction
Lenticular filters have a long history in Food and Beverage applications, They arose out of the need to package sheet-based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications.Jhenten's lenticular filter housing can be suitable for international brand 's filter disk with lower cost.The surface finish totally arrive sanitary grade requirement.
Jhenten's lenticular can be suitable for international big brand's filter module ,which can reduce much cost . Such as CUNO ,Pall ,Millipore's filter module .
Lenticular Filter housing's advantages :
Versions available in high-grade AISI 304 and 316 L stainless steel
• 150PSI rated and up to 300ºF
• This apparatus was manufactured and tested under the standard of ASME BPE or 3A standard,
This apparatus meet GMP standard
•All wled-seam are argon are welded
• Hygienic design by avoiding dead space, Sanitary Filter Housing, No Dead Corner
•All surfaces that come in contact with the product are mirror polish or electro polished, Ra< 0.4 µm
• 1.5" Pressure Gauge Ports,1”Drain,1/4" air Vent"
Lenticular Filter Housing Operating Parameters
Max Operate pressure: 10bar
Max Operate temperature: 150ºC
Industrial sure tolerance on weld : 0.85
Corrosion by acid 0 mm
Lenticular Filter Housing Applications
Wine
Food &Beverage
Process Water
Pharmaceutical Liquids
Biotechnology & Laboratory
Medical &Medical Device
Chemical And Painting

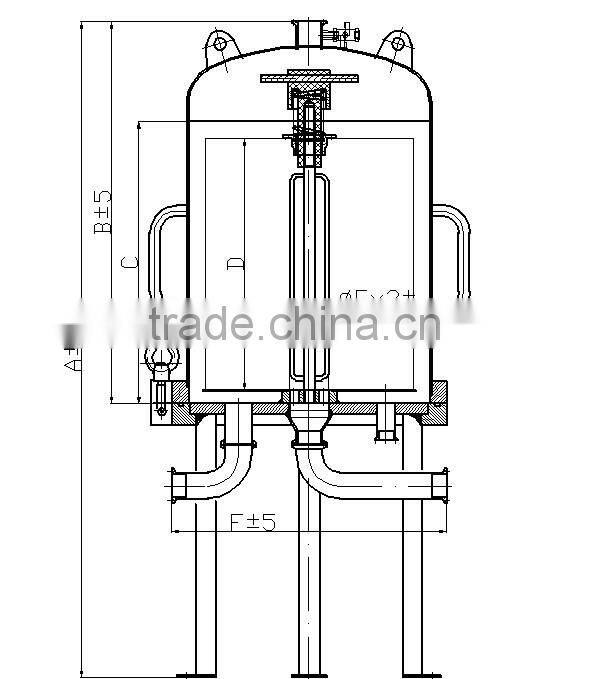

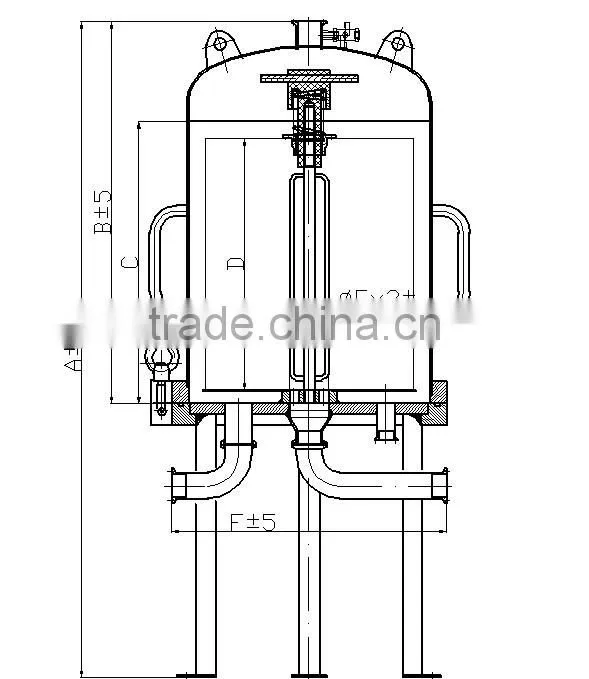

Lenticular Filter Housing Main Parmeters
Item |
A MM |
B MM |
C MM |
D MM |
E MM |
F mm |
ZTDX-08DB1 |
890 |
470 |
350 |
280 |
250 |
300 |
ZTDX-08DB2 |
1160 |
740 |
620 |
280 |
250 |
300 |
ZTDX-08DB3 |
1460 |
1010 |
890 |
280 |
250 |
300 |
ZTDX-08DB4 |
1700 |
1280 |
1160 |
280 |
250 |
300 |
ZTDX-12DB1 |
930 |
510 |
350 |
280 |
350 |
400 |
ZTDX-12DB2 |
1200 |
780 |
620 |
280 |
350 |
400 |
ZTDX-12DB3 |
1470 |
1050 |
890 |
280 |
350 |
400 |
ZTDX-12DB4 |
1740 |
1320 |
1160 |
280 |
350 |
400 |
ZTDX-16DB1 |
950 |
530 |
350 |
280 |
450 |
500 |
ZTDX-16DB2 |
1220 |
800 |
620 |
280 |
450 |
500 |
ZTDX-16DB3 |
1490 |
1070 |
890 |
280 |
450 |
500 |
ZTDX-16DB4 |
1760 |
1340 |
1160 |
280 |
450 |
500 |
