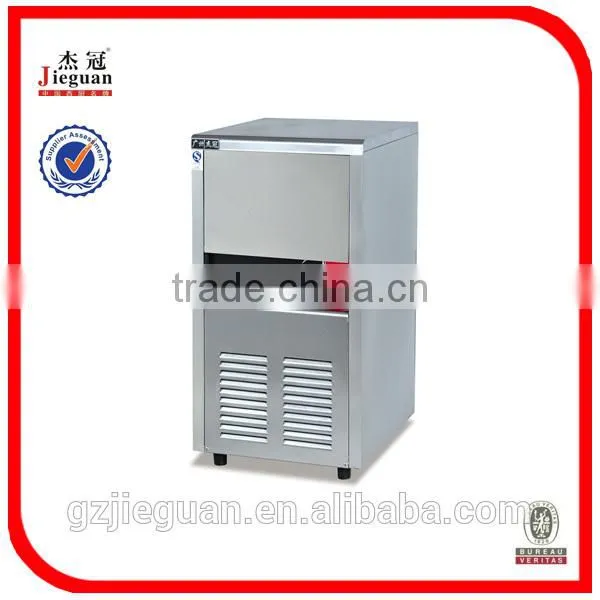

Stainless Steel Electric Ice Maker SD-18

FOB Price

US$ 1 - 360 / Piece

3 Pieces(Min. Order)

Port guangzhou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	Other, ISO9001	Power (W)	290
Voltage (V)	220	Model Number	SD-18,SD-22,SD-43,SD-60
Brand Name	Jieguan	Place of Origin	Guangdong, China

Product Description

ice maker, ice maker, ice maker, ice maker, ice maker, ice maker, ice maker, ice maker, ice maker, ice maker, ice maker,

Commodity:Ice Maker,Ice Making Machine

Model:SD-18

Size:420x450x760mm

Volts:110V/220V

Power:0.22kw

Daily Production:18-20kg

Model:SD-22

Size:500x500x810mm

Volts:110V/220V

Power:0.53kw

Daily Production:28-30kg

Bin capacity:10KG

Model:SD-43

Size:500x560x810mm

Volts:110V/220V

Power:0.35kw

Daily Production:48-50kg

Bin capacity:20KG

Model:SD-60

Size:706x560x1010mm

Volts:110V/220V

Power:0.48kw

Daily Production:60-70kg

Bin capacity:35KG

Packaging & Shipping

Crate wood packing outside,carton packing inside.One piece each package.

Our Services

We accept sample order and we can customize the product as per your requirement.

Company Information

We make kitchen equipment such as boiling pans,bratt pans,refrigeration,deep fryer,griddle,food warmer,cake display cooler,infrared salamander,kebab machine,chicken rotisserie,bain marie and etc since 2003.

For more information,please visit our website /en

You can contact us directly by phone at 86-135-1276-3177.(Attn: Mr. Bright Liu)

Installation:
(1) The location for the machine should be equipped with the following devices:
a. power of 220V/50Hz
b. water resource and switch
c. pipeline for water drainage
(2) The machine should be put in level to keep the ice producing effort and prevent from the vibration.
(3) The machine has to be put in the good ventilation location, it should kept away 150mm from the other objects for the air exchange. The machine should be kept away from other heating resources, such as heaters and ovens etc. The machine should be equipped with suitable power switch, fuse and breaker . The current volume for the socket and cable is not less than 10A. The socket must have qualified earthling wire.
(4) If the water quality is not so good, you should connect a filter to the tap. The water quality for the ice producing should meet the drinking standards.
Transportation and storage
In transportation, it should be very careful, prevention from heavy vibration. The machine in package cannot be put in open-air for long time. It should be put in the good facility of air and non-corrosive air storage. It cannot be put upside-down. If it is necessary to put it in open-air, it should have waterproof facilities.
Operation
The appliance is equipped with temperature and time control system. The process is completed automatically from water in to ice out. It is no need man power, so it is simple and convenient in operation. What you have to do is only turning on the power and water.
During the operation, when the cabinet is full of ice cubes, the machine will stop automatically. You should take out some of ice cubes and the machine will start again.
You should connect water pipe for the machine. The water pressure should be between 0.1-0.5MPa. The flow can be adjusted by the tap and it depends on the drainage volume of frost-melting. If the drainage is big, turn up the tap, if the drainage is small, turn down the tap.
The silicon balls inside the machine are for prevention of the internal bottom from striking of the ice falling down. So, the silicon balls have to be put in the operation and taken out for cleaning regularly.
