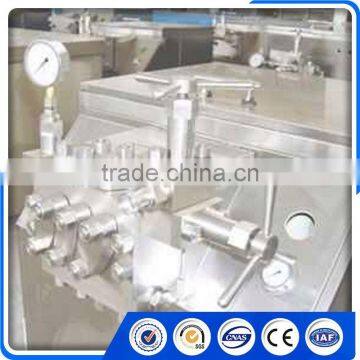

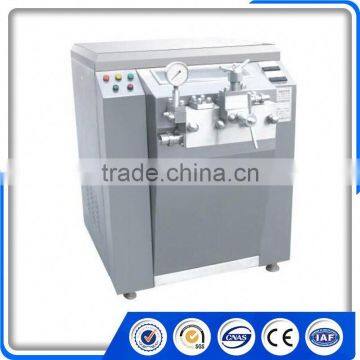

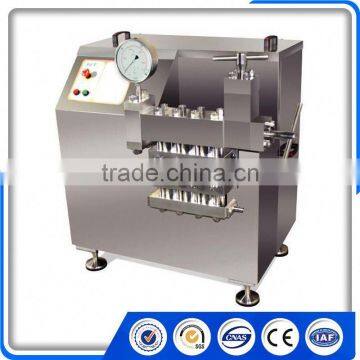

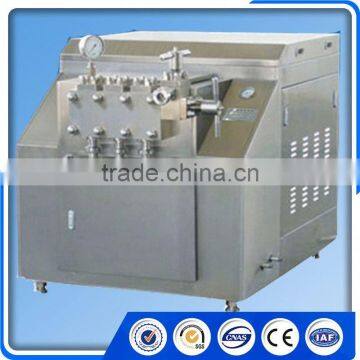

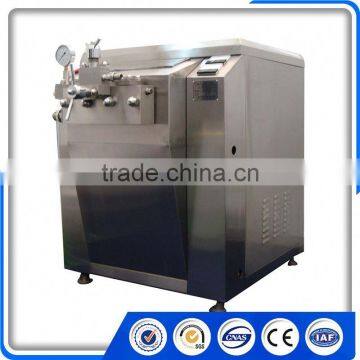

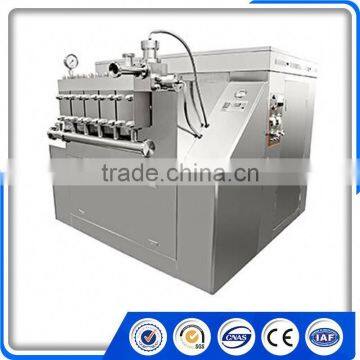

emulsifier beverage homogenizer and mixer
Main technical parameters
Equipment Name | Homogenizer 25Mpa |
Equipment Type | SRH3000-25 |
Kind of beverage | Milk/ Juice/beverage |
Rated flow | 3000L/H |
Max presure | 25Mpa |
Rating pressure | 0-20Mpa |
Power source | 22kw |
Weight | 1800kg |
Outline dimensions | 1500×1100×1200mm |
Technological superiority :
1. Flow rate is sufficient and nameplate capacity is no less than the standard. We can keep
the flow no change when the pressure higher in the technical.
2. Particle size is good, micronΦ0.01-2.( choose the right pressure)
3. The pressure is stable, the throw of the pointer of pressure gauge within 1Mpa. It means
P1is equal or lesser than Mpa. The one way valve use the conical valve surface contact,
sand grinding, no leakage,steady pressure,sufficient flow .
4.Low noise, the transmission gear was installed in crank arm, high flow and high
pressure use the double shaft dynamo.
5. Reliable sealing
6 Easily damaged parts can use long time.
7. Can save lubrication oil.
8. Disassembling maintenance is convenient.
9. Attractive and durable, accord with food hygiene requirements.
Click on the button, you will find surprise
No. | Name | Supplier | Origin |
1 | PLC | Mitsubishi | Japan |
2 | Touching screen | PWS6A00T-P | Japan |
3 | Electricity switch | MOELLER | French |
4 | Control valve | BURKERT | Germany |
5 | Color meter sensor | SICK | Germany |
6 | dynamo | ABB | Sweden |
7 | Water pump | CALPEDA | Italy |
8 | Pneumatic control parts | FESTO,CAMOZZI | Germany |
9 | XMTG | OMRON | Japan |
Overall Plan
According to customer's willingness,design the best overall plan which not only
meets the technological requirements ,but also match with investment program.
Reasonable configuration reduces the risks in the selection of equipment model
Reduce your investment cost
Reduce your operation cost
Reduce your quality cost
Reduce your labor cost
Reasonable configuration will be achieved for you by BIHAI'S Pre-sale department.
Turn-key purchase reduces the procurement cost
Reduce the unit price of your procurement cost
Reduce the logistics cost
Reduce your human and communication cost
Avoid repeated investment cost
Turn-key purchase will be realized by BIHAI'S Supply Department.
Turnkey project
No worried about the crossover consturuction
Make sure the installation working more smoothly
Provide the unified after-sales service
Offer the whole operation guide to you
Professional turnkey project,Bihai engineering department do that for you.
Any problem,BIHAI will help you in the whole process to solve them
BIHAI's Training team will guide and enable your staffs to operate and carry out maintenance
BIHAI's After-sale Team will hepl you to solve all kinds of equipment failures.
BIHAI's quality control will help you to solve all kinds of quality problems
To solve all kinds of production problems,BIHAI's After-sale Department will do it for you.
1. What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions.
Besides, we have professional after-sale group to customer’s site to solve any problems.
2. How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets,
Orings, coding letters). Non-artificial damaged spares will be sent freely and shipping free
during 1 year’s warranty.
3. How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step
from raw materials purchasing, brands choosing to parts processing, assembling and testing.
4. Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection,
on-time shipment protection and 100% safe payment protection.
