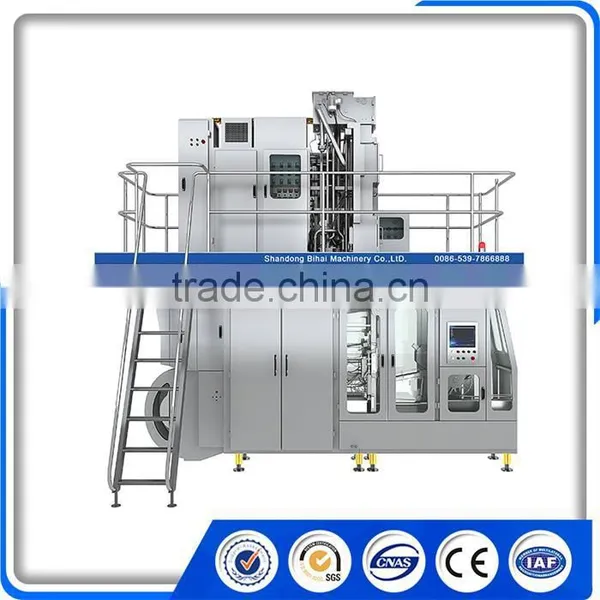

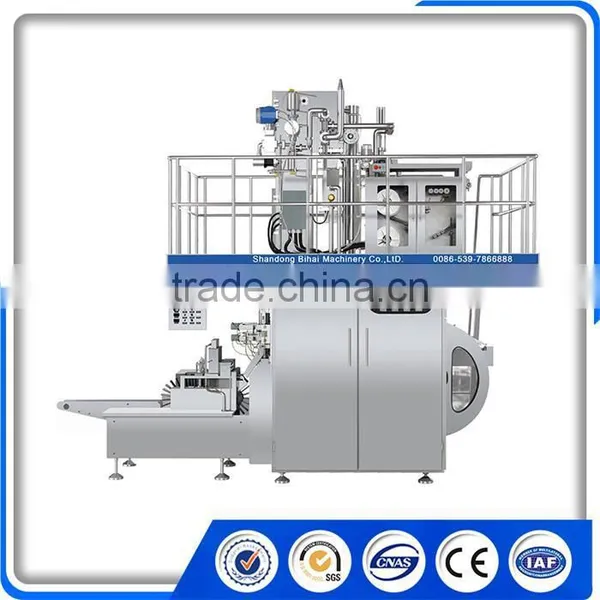

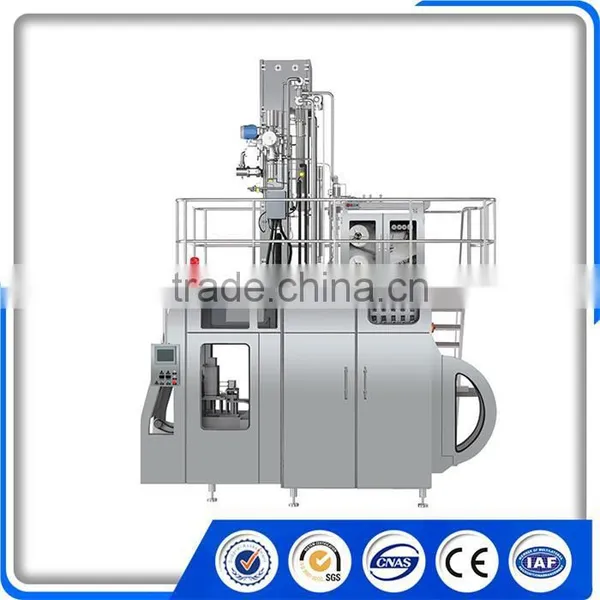

Aseptic Carton Filling Machine

Dear Customer:
         Welcome to our website and hope our products will make you satisfied.
         We think creatively,design bravely,manufacture precisely and

loyalty to our customers.
         And we have our own factory.So We can configure the machine

according to customer requirements .
         You give us a chance, we give you a surprise. Survive by quality,

profit by management, development by creation.                                                                                                                                                                                                                                          Yours

 Shandong BIHAI Machinery Technology/Packaging Materials Co., Ltd.

                                               Product Description

1. Fully Automatic  2. Top Quality  3. Easy to operate 4. Electronics adopt good brands.  5.Filling by piston which can gurantee high filling precision and working effciency.           CONTACT US

                                                                         Product Specification

 Type:

 BH7000-125S(125ml slim)

 BH7000-160S(160ml slim)

 BH7000-200B(200ml bsae)

 BH7000-200S(200ml slim)

 BH7000-250B(250ml base)

 BH7000-250S(250ml slim)

 Capacity:125ml 160ml 200ml 250ml

 Packaging speed:7000 cartons/hour

 Power:45KW

 Actual Power consumption:20KW

 Power source: 50HZ 380/220V

 Size: L×W×H 4900×2000×3700mm

 Weight:5300kg

 Application:Filling with milk.plant protain drinks and carious still beverages.

 Package Foam:Brick-shaped carton packages made of Paper/AL/PE laminated materials.

 Performance characteristics:

1.Computer control, the implementation of the peristaltic pump filling,

easy to clean and disinfect non-polluting, special occasions, ceramic pump or glass pump.

2.Without stopping to set the filling and fine-tuning.

3.Filling the implementation and system shrink function, no bottle no filling, no drip.

4.Automatically display technology, free speed control.

5.Robot automatically Jianei Se pressure cover, no plug does not push the cover.

6.Given torque cap, the cap reliable quality, no loosening.

7.An automatically complete the needle filling dual channel Jianei Sai, pressure cover,

no plug does not push the cover.

8.According to user's needs, can be installed one hundred laminar flow protection device

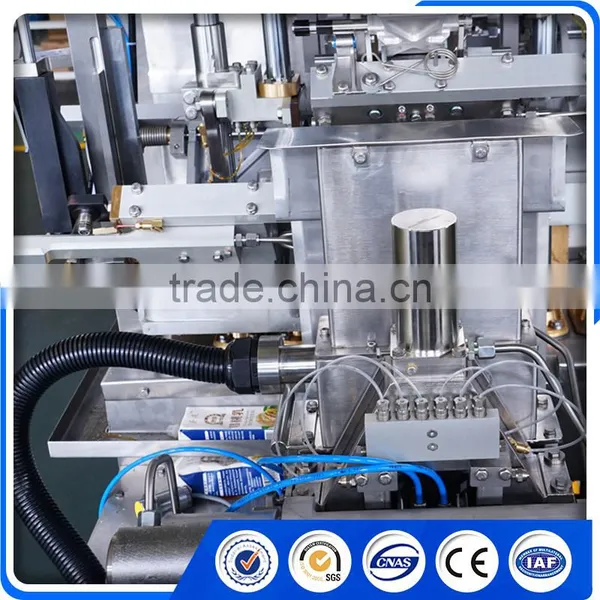

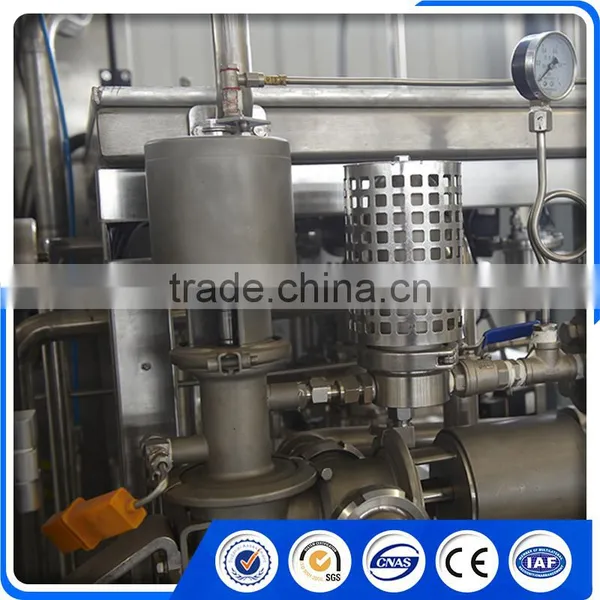

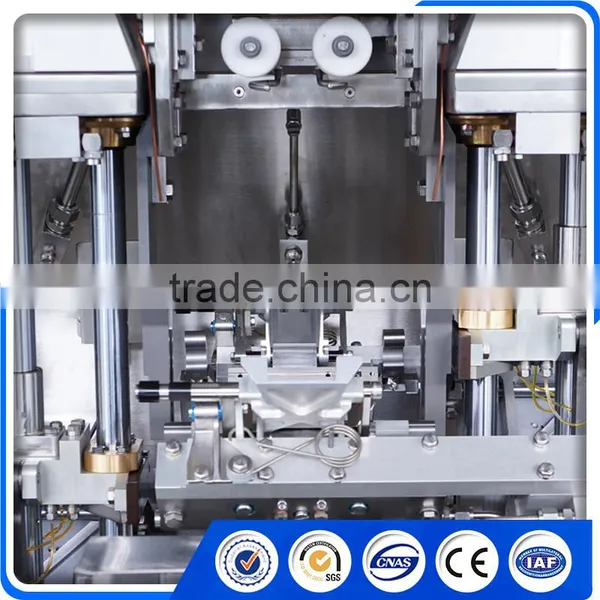

                                               Mechanical Details

                                                                              Click on the button, you will find surprise

                 Main imported elements of the machine

                               Packaging&Shipping

Packaging: Standard Export Carton for Automatic Carton Filling Machine

 Delivery Details  Within 45~60 days for Automatic Carton Filling Machine

                             Our Services

Overall Plan

According to customer's willingness,design the best overall plan which not only

meets the technological requirements ,but also match with investment program.

Turn-key purchase reduces the procurement cost

Reduce the unit price of your procurement cost

Reduce the logistics cost

Reduce your human and communication cost

Avoid repeated investment cost

Turn-key purchase will be realized by BIHAI'S Supply Department.

Turnkey project

No worried about the crossover consturuction

Make sure the installation working more smoothly

Provide the unified after-sales service

Offer the whole operation guide to you

Professional turnkey project,Bihai engineering department do that for you.

Any problem,BIHAI will help you in the whole process to solve them

BIHAI's Training team will guide and enable your  staffs to operate and carry out maintenance

BIHAI's After-sale Team will hepl you to solve all kinds of equipment failures.

BIHAI's quality control will help you to solve all kinds of quality problems

To solve all kinds of production problems,BIHAI's After-sale Department will do it for you.
