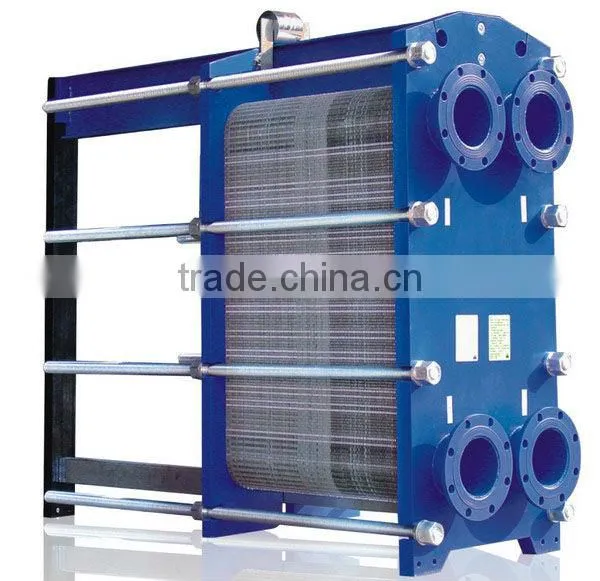

Heat Exchanger Plate Heat Exchanger

Name: Heat Exchanger Plate Heat Exchanger
Brand: wanyuan
SKU: 141368284
Availability: InStock

US$ 370 - 5,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

wanyuan

Wenzhou Longwan Wan Yuan Food Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name wanyuan

Model Number 12M2

Structure Plate Heat Exchanger

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

plate heat exchanger:

plate heat exchanger Usage:

Plate heat exchanger is being used in various fields,such as metallurgy,mining,petroleum,chemical engineering,electricity,pharmacy,food,synthetic fiber,textile,papermaking,shipbuilding,concentrated heating,machinary,and it can deal with many kinds of materials,including ordinary industrial water,liquid of high viscosity,healthful edibile liquid,clinical materials,corrosive acid and alkali,liquid with granule,floating liquid with fabric fibre, etc;
Plate heat exchanger can be used to heat,cool,evaporate,condense,sterilize,recover waste heat,etc

plate heat exchanger Merits:

Plate heat exchanger has high efficiency of heat exchanger,which is energy saving;
It has a compact structure,its plates are arrayed tightly and closely,so it has a smaller floor area and volume according to shell-and-tube heat exchanger;
It is very easy to install and disassemble,keepplates and bolts are conenient to disassemble;
Plate heat exchanger has a long useful time,it is made of stainless steel (SUS304/316/316L) or titanium alloy,which can resist acid and alkali. In additon,it is easy to disassemble,so its matenance is very convenient;
Plate heat exchanger has strong adjustability,its plates are unattached components,and users can change its form and procedure according to different processing requirements;

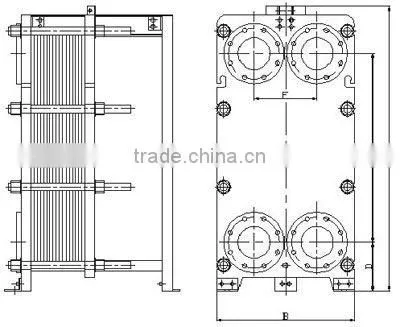

plate heat exchanger Main technical parameters:

model	BR 0.05	BR 0.1	BR 0.2
single plate heat exchange area (m²)	0.05	0.1	0.2
plate size (mm)	500×168	660×250	970×330
plate thickness (mm)	0.8	0.8	0.8
aperture diameter (mm)	38	60	75
adapter tube diameter (mm)	28	38	46
corrugation shape	herringbone	herringbone	herringbone
corrugation distance (mm)	10	12	12
average plate distance (mm)	3.8	4.2	4.2
combinatorial heat exchange area (m²)	0.5~5	4~10	10~38
maximum pressure (Mpa)	0.4~2	0.4~2	0.4~2
maximum temperature (°C)	120~160,250(special-required)	120~160,250(special-required)	120~160,250(special-required)
heat transfer coefficient (W/m²°C)	2000~6000	2000~6000	2000~6000
