Help CenterHOT SELL Fresh Milk Cooling Tank < With Automatic Cleaning System>
Related Products
-
300L Milk Cooling TankUS$ 1,000 - 5,000MOQ: 1 Set -
300L Vertival Milk Cooling TankUS$ 1,000 - 5,000MOQ: 1 Set
-
Bulk Milk Cooler Milk Chiller Milk Cooling Tank Cooling VesselUS$ 1,000 - 5,000MOQ: 1 Set
-
Cow Milk Collect and Transport TankUS$ 2,000 - 8,600MOQ: 1 Set
-
Cow Milk Cooler Cooling Cow MilkUS$ 2,000 - 5,600MOQ: 1 Set
hot sell fresh milk coooling TANk
avaliable capacity:
300L 500L 800L 1000L 2000L
3000L 5000L 7000L 8000L 10000L
milk cooling tank picture
1. vertical milk cooling tank
milk cooling tank picture
2. horizontal milk cooling tank 10T milk cooling tank

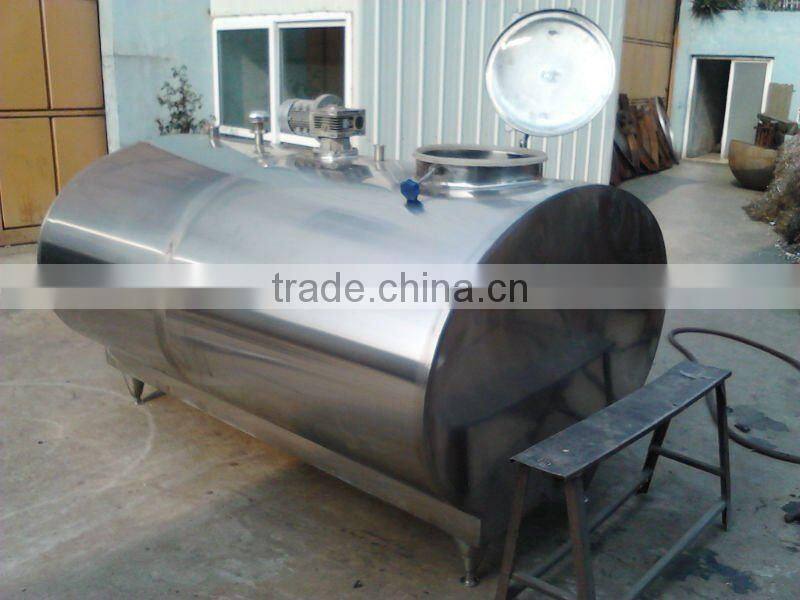

milk cooling tank 2T 3T milk cooling tank picture as below
1500Liter milk cooling tank horizontal milk cooling tank picture
milk cooling tank specification
Material Chamber/Milk vessel: Stainless steel (Food grade 304 or above)
Vessel Evaporator: stainless welded with milk vessel
Lid Cover: (Food grade) mounted on tank top, milk pouring opening 300mm (manway for milk cooling tank)
Insulation: Polyurethane varing density
Electric/ Control Panel: 100% automatic and PLC panel or Electromagnetic panel
Legs: Stainless Steel and adjustable
Milk Agitation: Stainless steel made driven by slow speed agitator, coupled with motor timer sirem France or equivalent
Milk Measuring; level meter with milk reading chart Acuracy
Butterfly Valve at milk outlet: Stainless steel DN 50 with SMS thread
Milk thermostate: Manual/ Automatic
Cooling Unit: Compressor (copeland)
Refrigeration Control; Thermostate expension valve danfoos or equilent
cleaning: PLC programable Cleaing device <automatic CIP cleaning>
or normal CIP spray ball
milk cooling tank specifications
Capacity |
500L |
800 |
1000L |
1200L |
2000L |
Price FOB ningbo |
|||||
Materials used for construction |
SS304 |
||||
Shape and orientation |
Vertical / horizontal |
||||
Weight (kg) |
460 |
500 |
580 |
600 |
800 |
Thickness of inner shells |
2 mm |
||||
Thickness of outer shells |
1.5 mm |
||||
Number of agitator |
1 |
||||
RPM of agitator |
35rpm |
||||
Type of insulation |
Polyurethane foam insulation |
||||
Thickness of insulation |
50mm |
||||
Density of Insulation |
40 kg/m3 |
||||
Make of compressor |
Copeland form US |
||||
Size of compressor |
2HP |
3HP |
3HP |
3HP |
5HP |
No. of Compressors |
1 |
||||
Model of Compressor |
Air cooled |
||||
Number of condensers |
1 |
||||
Number of fans |
2 to 4 |
||||
Type of refrigeration |
R22/R404 |
||||
brand new milk cooling tank for farm milk cooling tank
