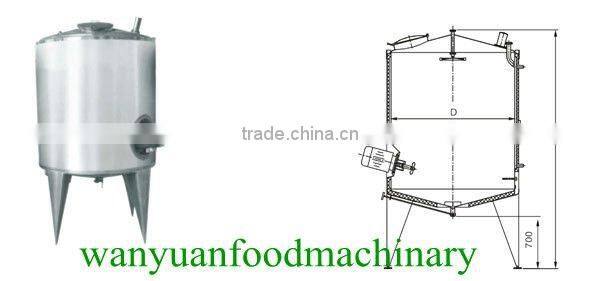

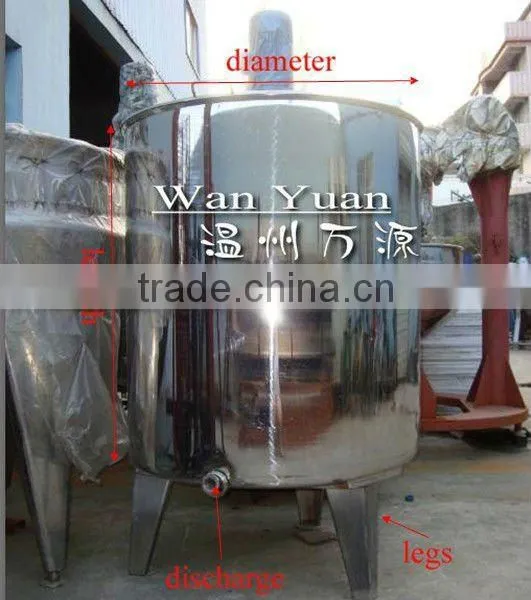

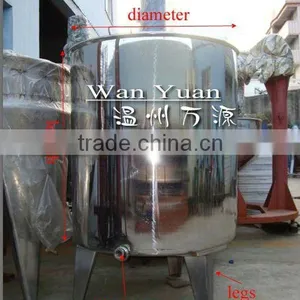

Hot Water Heating Jacketed Tank With Agitator Double Wall Mixing Tank
US$ 200 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WANYUAN
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conical Bottom Water Storage Tank | Juice Storage TankUS$ 1,200 - 8,000MOQ: 1 Set -
750 Gallon Conical Beer FermenterUS$ 1,200 - 8,000MOQ: 1 Set
-
60BBL Conical Beer FermenterUS$ 1,200 - 8,000MOQ: 1 Set
-
Stainless Steel Crystallizing Tank 500LUS$ 1,200 - 8,000MOQ: 1 Set
-
500L Stainless Steel Mixing Tank Pharmaceutical Mixing TankUS$ 1,500 - 4,500MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
WANYUAN
Model Number
300L--10000L mixing tank
Processing Types
Other, juice&milk
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Certification
ISO9001:2008
Seed tank,3000L stainles ssteel mixing tank with mixing paddle ,storage tank
Usage:
used to caltivate the yogurt working hametz.apply to food,dairy ,juice,beverage,medicine,chemical.and biological engineering,etc
1.material is sanitation stainless steel.
2.structure design is extremely humanizaionlity is strong.
3.the barrel body wall using arc transition section,sanitation without blind angle.
tanks configuration:
1.asepsis respirator
2.the thermometor
3.CIP CLEANER
4.seed inlet
5.adjustable triangle feet.
6.mixer
7.jackted layer (according to the custom request to choose miller board or hollow jacketed.
8.lamp glasses
9.sampling valve.
| volume | barrel size | total height | heat preservation layer | inlet&outlet DN | moter power | mixing speed |
| L | D*H MM | MM | MM | MM | KW | R/MIN |
| 100 | 600*550 | 1700 | 50 | 38 | 0.45 | 40 |
| 200 | 200*8 | 1850 | 50 | 38 | 0.45 | 40 |
| 300 | 800*750 | 2100 | 50 | 38 | 0.45 | 40 |
| 400 | 800*800 | 2150 | 50 | 38 | 0.55 | 40 |
| 50 | 840*1000 | 2300 | 50 | 38 | 0.75 | 40 |
| 600 | 900*1000 | 2300 | 50 | 38 | 0.75 | 40 |
