High Pressure Inline Homogenizer Pump

High Pressure Inline Homogenizer Pump thumbnail-1
High Pressure Inline Homogenizer Pump thumbnail-2
High Pressure Inline Homogenizer Pump thumbnail-3
High Pressure Inline Homogenizer Pump thumbnail-4
High Pressure Inline Homogenizer Pump thumbnail-5
High Pressure Inline Homogenizer Pump thumbnail-6
High Pressure Inline Homogenizer Pump photo-1
High Pressure Inline Homogenizer Pump photo-2
High Pressure Inline Homogenizer Pump photo-3
High Pressure Inline Homogenizer Pump photo-4
High Pressure Inline Homogenizer Pump photo-5
High Pressure Inline Homogenizer Pump photo-6
US$ 3,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
KQ
Contact Supplier Request Quote Chat Now
Shanghai Kaiquan Machine Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai and NINGBO/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name KQ
Model Number KQ 0.5-15T
Type Processing Line
Voltage 380V/220V/415V
Power(W) CUSTOMIZED
Weight CUSTOMIZED
Dimension(L*W*H) CUSTOMIZED
Certification CE
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

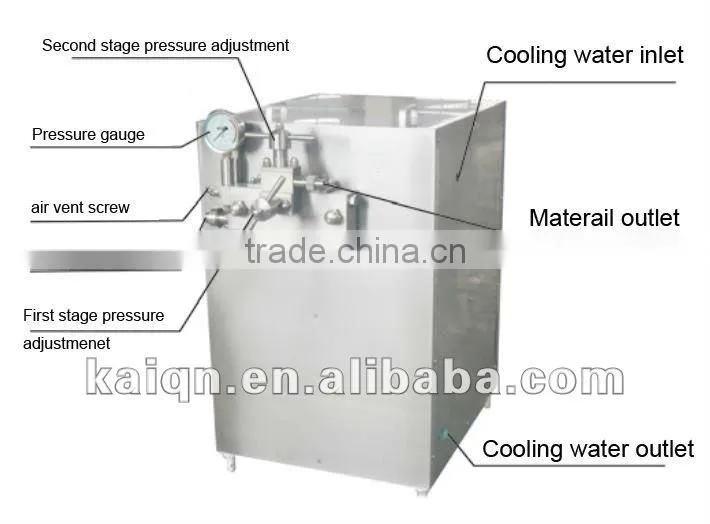

high pressure inline  homogenizer pump
Product Description

high pressure inline  homogenizer pump

             Model No.

Technical

parameter



KQ0.5-25



KQ1-25



KQ1.5-25



KQ2-25



KQ2.5-25

GJB3000-25

KQ3-25



KQ5-25

Rated pressure(MPa)

25

25

25

25

25

25

25

Rated flow(Liters/H)

500

1000

1500

2000

2500

3000

5000

Medium temperature(℃)

≤85

≤85

≤85

≤85

≤85

≤85

≤85

Feeding pipe diameter(mm)

25

25

25

25

25

32

40

Discharge pipe diameter(mm)

15

15

20

20

20

20

25

Power of motor(Kw)

5.5

7.5

11

15

18.5

22

45



Volt and Electricity Flow

380V,50HZ,3PH

380V,50HZ,3PH

380V,50HZ

380V,50HZ

220V,60HZ,3PH

380V,50HZ

380V,50HZ

Outline dimension (m)

Length * width * height

1.16×0.9×1.24

1.16×0.9×1.24



1.16×0.9×1.24



1.4×1.1×1.42

1.4×1.1×1.42

1.4×1.1×1.42

2.2×1.45×1.1



Weight(Tons)

0.4

0.5

1.25

1.25

1.25

1.25

1.7



  CE certificated High pressure homogenizer /milk homogenizer

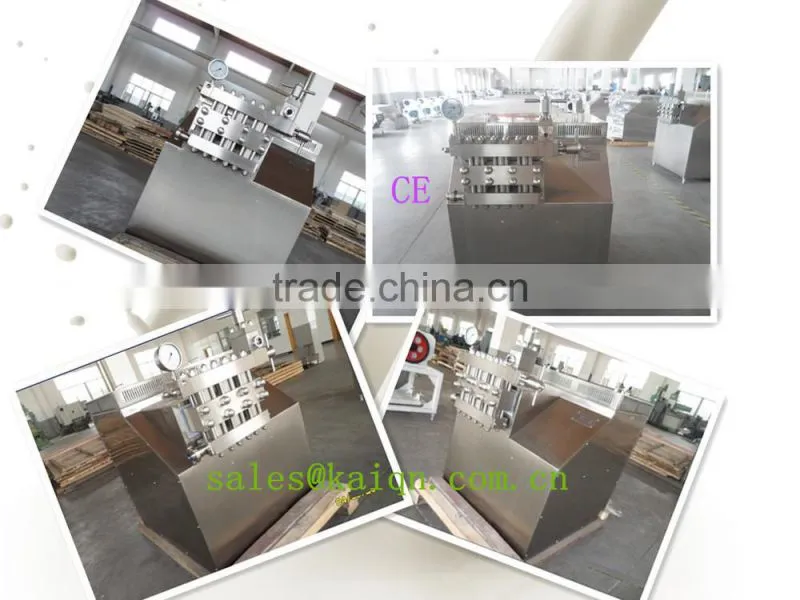

 high pressure inline homogenizer pump







Packaging & Shipping

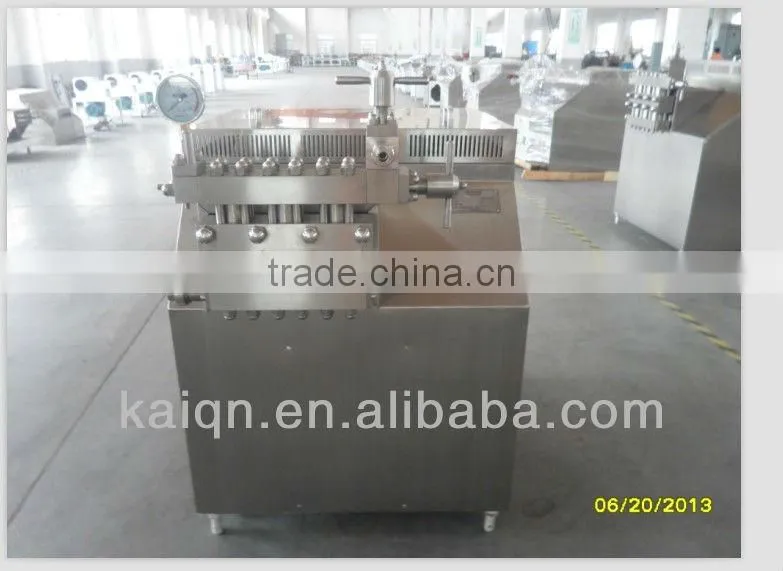

  high pressure inline homogenizer pump

WOOD BOX


Our Services



ACCEPT CUSTOMIZED ELECTRICITY SYSTEM, CAPACITY, QUALITY CHECKING, SHIPPING

Design, Production, shippment

high pressure inline homogenizer pumphigh pressure inline homogenizer pumphigh pressure inline homogenizer pump





high pressure homogenizer

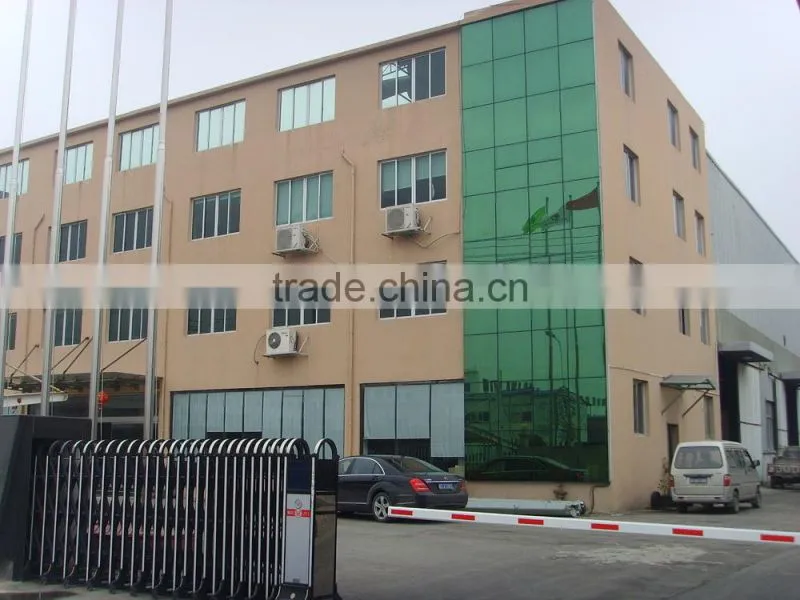

Company Information





high pressure inline homogenizer pumphigh pressure inline homogenizer pump



250bar homogenizer for milk, juice, palm oil, food oil,



250MPA homogenizator for dairy factory



high qualtiy

one year warranty



 WITH CE TEST APPROVED, HIGH QUALITY,

HAVE EXPORTED TO TURKY MANY YEARS . WHOLE LIFE TECHNICAL SERVICE FOR FREE

LONG TIME WARRANTY

General Information

GJB high pressure homogenizer series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, highly presses the liquid, fully mixes and refines the material.



The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; make the product much more nice, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc.)
Do not use the product to handling the suspending liquid or the high viscosity liquid.(viscosity less than 0.2 Pa.S)

 high pressure inline homogenizer pumphigh pressure inline homogenizer pump

high pressure inline homogenizer pump
high pressure inline homogenizer pump





FAQ



 High quality homogenizer production time: in 15days after confirming the order




 high pressure inline homogenizer pump
