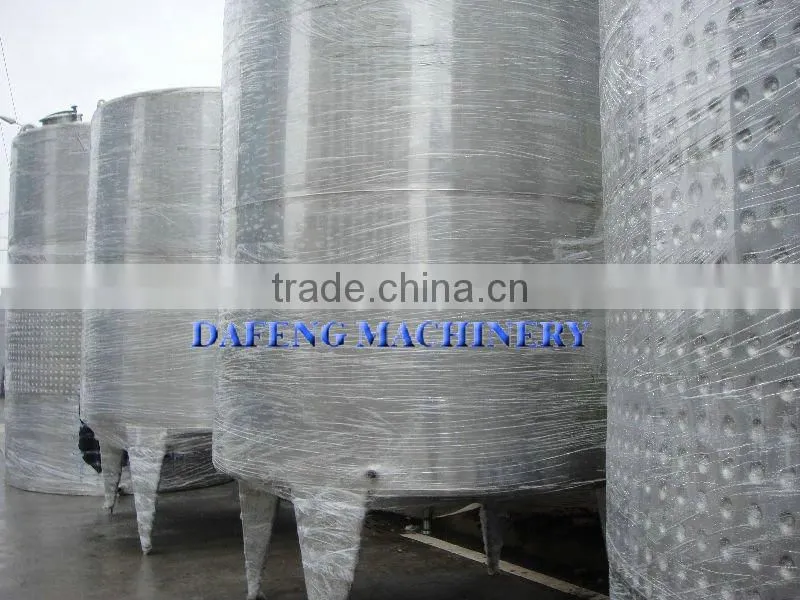

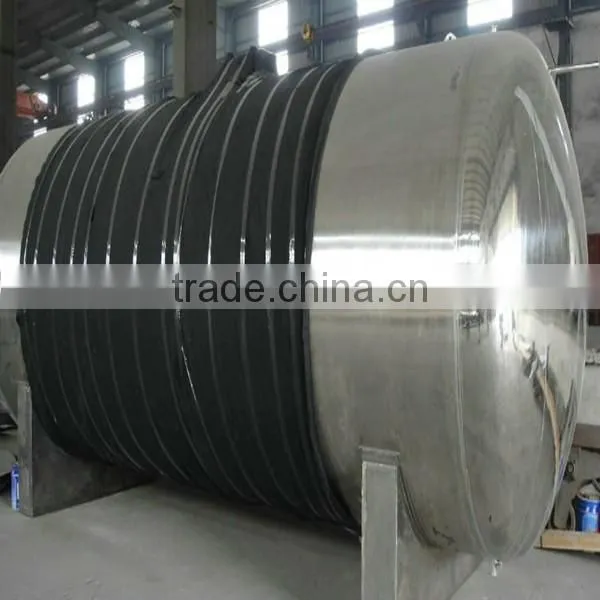

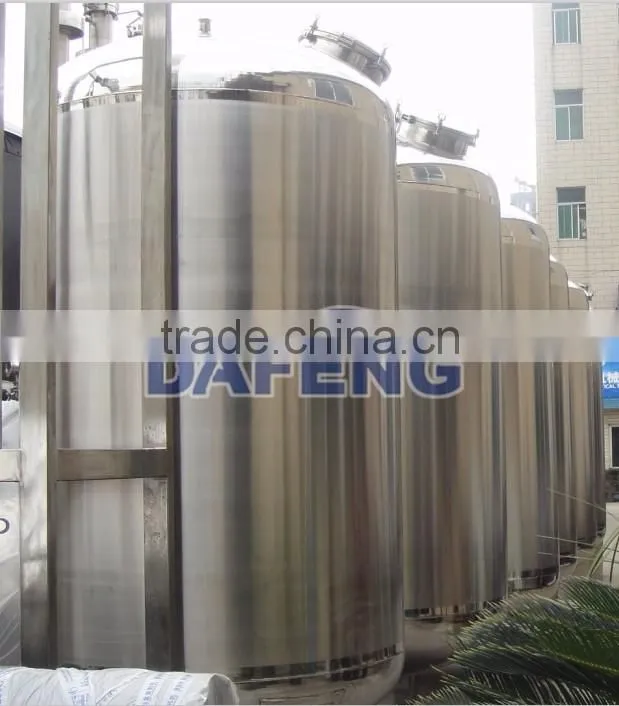

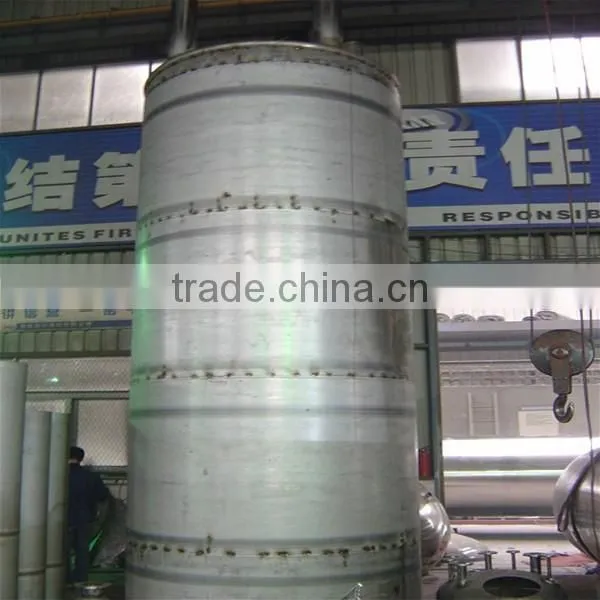

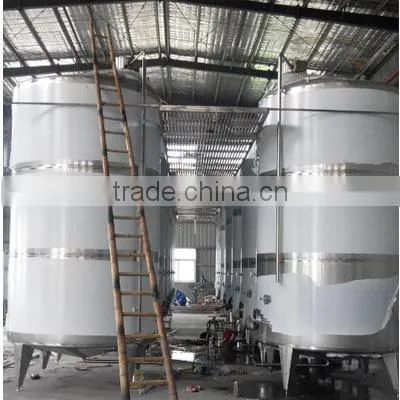

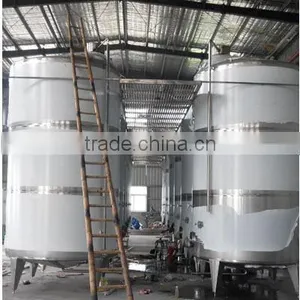

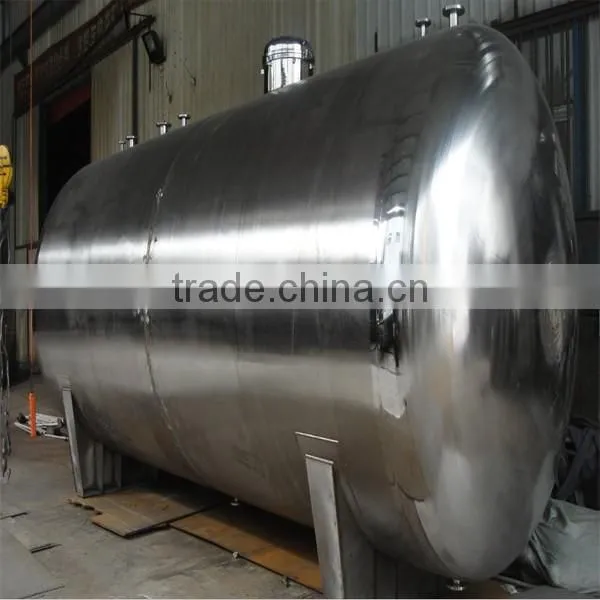

Liquor Fermentation Tank/Wine Fermentation Tank

Wine Fermentation Tanks / Stainless Steel Liquor Tank Information

a. Fermentation Tank is widely used in industries and fields such as food,beverage,pharmacy,chemical industry,and bio-logical etc.

b. It generates two kinds: Horizontal and Vertically.

c. We provide provides various stainless steel fermentation tanks.

If required, it can be jacketed for heating or cooling, pressurized or vacuumizedm or with agitator etc.

d. We also have rich application experience in measurement and control of the materials in the storage tanks.

Remarks:

Welcome to consult with our sales engineers. Together with application engineers, they will provide you with a most reasonable scheme.

Process:

The material is used of high quality stainless steel SS304 or SS 316L (customer 's requirement).

This blending tank is according to JB4735-1997 Produce ,test and use. And it is comply with GMP requirement .

It adopts argon arc welding to eliminate the welding pressure .

Top head and bottom head is shapedby water pressure that can assure sanitary .

All surface are smooth and no roughness .

Usage:
It applied to infusion, injection, oral liquid, blood preparation, biology, fine chemical and fermentation industries.

Technical parameters:
1. inside surface roughness is Ra0.4µm, outside surface roughness is Ra0.8µm.
2. Form: vertical or horizontal.
3. Components: vent filter, manhole, cleaning ball, liquid level gauge, and control system or according to clients' specific requirement.
4.Tank (Pressure Vessel) volume: 0.5-5000 cubic meters
5 wine storage tank Dimension: Diameter and height according to the requirements
6. wine storage tank Material: Stainless Steel (304 or 316L)
7.Tank shell thickness: 2mm,3mm or more (according to the design or customer required)
8. Pressure (MPa): Atmospheric pressure-Middle pressure (According to the Chinese Design standard)
9.Function: Storage or fermentation tank
10. Design temperature C-degree: -5-80
11. Medium: Various drinks including wine, beer, fruit wine, fruit juice and so on.
12.Tank surface: The original surface of the stainless steel plate (or polishing if required)
13. Operation plate form: We can design the plate form if required.

14. Mixing: Top side or bottom mixing.
15. General accessories(If required): Manhole, CIP, respirator, sight glass, mixing
16. Manufacture standard: Chinese Pressure Vessel Design and Making Standard
17. wine storage tank Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arcwelder and auto polishing machinery and cooperating with international famous finished.

CERTIFICATIONS FOR ORDINARY TANKS
