The wine fermenting tank is a product developed by our company according to the wine fermenting tank technology from abord. The equipment is mainly composed of top,top material distributing device,cooling jacket part,liquid level observation part,conical bottom part, bottom residue scraping mechanism,residue discharging device,wine storage and wine internal circulating system etc.
Specification:
1.Material: SUS304/SUS316L
2.Volume: 200L~20,000L larger
3.Winery system, wine fermentation tank
Equipment:
♦ Drain port DKE2”TRI CLOVER(tanks 500GAL and 1000GAL )or DKC2”TRI
CLOVER (TANKS 1500GAL and 2000GAL )
♦ Packing port 2”TRI CLOVER
♦ Sample valve port 3/4”TRI CLOVER
♦Oval manway 310x440mm,thr frame seamlessly formed out of the tank wall
(tanks 500GAL)or oval manway
♦ Top manway 420mm
♦ Connection for thermometer 1/2”NPT
♦ Connection for probe 1/2”NPT
♦ Cooling jacket Vt h750mm 6bar
♦ Lifting rings
♦ Ladder hoider,width 410mm
ACCESSORIES
♦ Sample valve 3/4”TRI CLOVER
♦Clamp 3/4”TRI CLOVER
♦Gasket 3/4”TRI CLOVER
♦ Pressure compensating valve DIN 50
♦ Material:ALS 1316-tank;AISI304-OTHER PARTS
FORM:
Item: |
Wine Fermentation tanks |
Place of Origin: |
Zhejiang in China |
Model No: |
WFT2110 |
Brand Name: |
DF |
Material: |
SUS304 or 316L |
Tank shell thickness: |
3mm or more |
Pressure(Mpa) : |
Atmospheric pressure—Middle pressure |
Function: |
Storage, cooling or fermentation tank |
Design temperature C-degree: |
-5---80 |
Medium: |
Various drinks including fruit wine, wine, and so on |
Tank surface: |
The original surface of the stainless steel plate |
Operation plate form: |
We can design the plate form if required |
General accessories: |
Manhole, CIP, respirator, sight glass etc |
Payment Terms: |
T/T |
Minimum Order: |
1 set/sets |
Supply Ability: |
150 set/sets/ month |
Package: |
in standard wooden case packing |
Delivery Time: |
30 day |
Technical parameters: ID |
|
FW500GAL |
FW750GAL |
FW1000GAL |
FW1500GAL |
FW2000GAL |
|
It |
2000 |
3100 |
4100 |
6000 |
7800 |
Gal |
538USGAL |
820USGAL |
1090USGAL |
1588USGAL |
2070USGAL |
|
D |
mm |
1110(44inch) |
1370(54inch) |
1580(63inch) |
1900(63inch) |
2050(63inch |
H |
mm |
2000(79inch) |
2000(79inch) |
2000(79inch) |
2000(79inch) |
2250(79inch |
Z |
mm |
2750(108inch) |
2750(108inch |
2750(108inch |
2750(108inch) |
3000(108inch |
N |
mm |
350(14inch) |
350(14inch) |
350(14inch) |
350(14inch) |
350(14inch) |
M |
ibs |
372 |
490 |
593 |
778 |
892 |

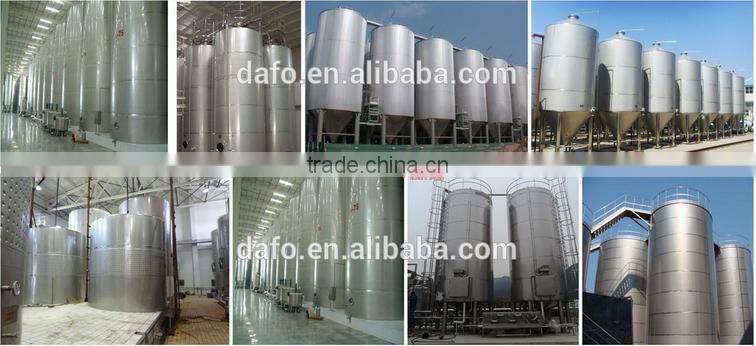

Product showcase:
Exhibition:
Certification:
