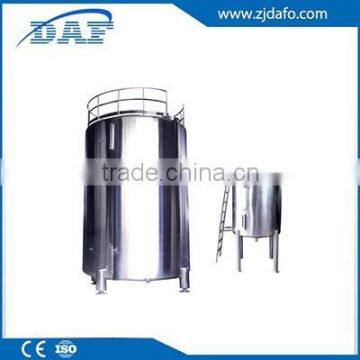

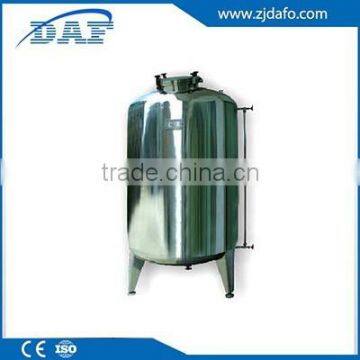

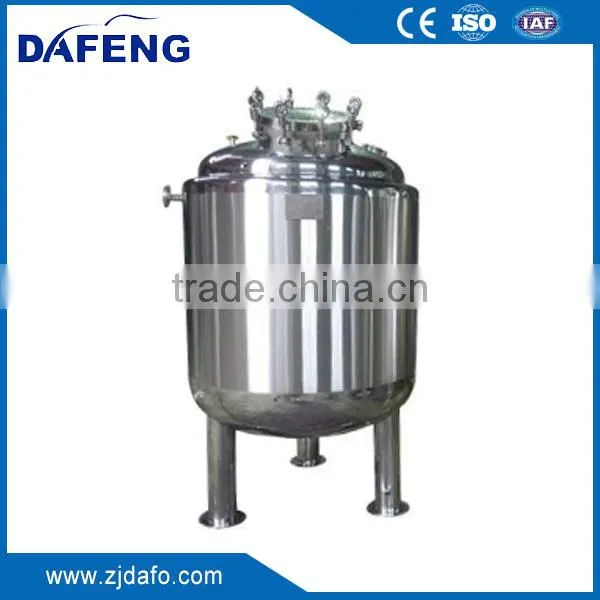

Insulation Water storage Tank
1. Application :
This series storage tanks are main used to store distilled water .
2. Capacity/volume:
100L to 20000L
3.Characteristics:

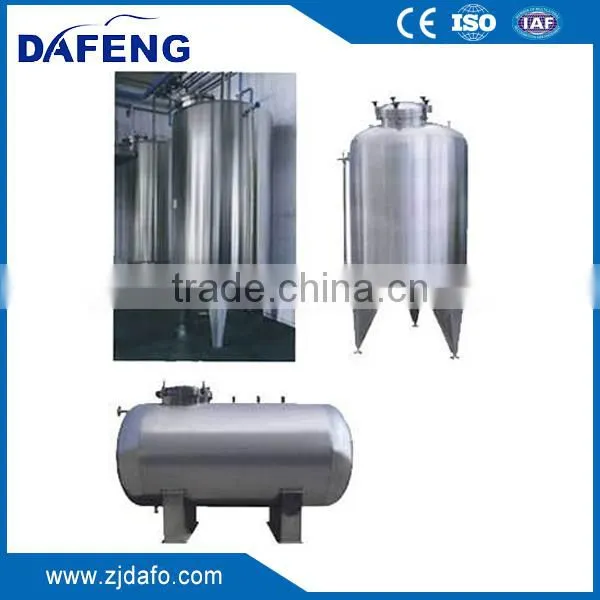

A-Type: both vertical and horizontal type.
B-Standard:The distilled water storage tank is designed according to the pharmaceutical industry cleaning factory design specifications, it is met the GMP standard.
C-Heating and insulation:Coil pipe heating,Perlite cotton/PU foam insulation .
D-Material: the material of interior cylnder is adopted SUS316L, and mirror polishing level is up to Ra0.4um. The material of external cylinder is adopted SUS 304 and outer surface adopts matt polishing.
E-Configuration:With digital temperature probe, level display, CIP cleaing ball , aseptic aire filter, quick opening manhole , inlet&outlet and so on.
F-Vent filter:The 0.22um vent filter with hydrophobicity is installed. The filter can be heated for sterilization.
G-Sanitary connections:All the connections of the nozzles are adopted sanitary fast connections, which are easy connected with CIP, SIP system. With simple structure, easy cleaning, corrosion proof.
According to client's requirements, the tank can be automaticl control the level and temperature.
How to choose product
material you can choose stainless steel 304 or 316L.and each tank can make customize according to your request.
usually,tanks can be equipped with different parts,like jacket,valve,stir,sight glass and so on.
you can choose tank size,or we make special size for you.
| Uniform nominal volume(m³) | Dg | H | a | b | c | d | F1 | F2 | manhole |
| 0.5 | 800 | 1000 | 40 | 40 | 25 | 40 | 20 | 20 | 400 |
| 1 | 1000 | 1300 | 50 | 50 | 25 | 50 | 20 | 20 | 400 |
| 2 | 1200 | 1800 | 50 | 50 | 25 | 50 | 20 | 20 | 400 |
| 3 | 1400 | 2000 | 65 | 50 | 40 | 65 | 20 | 20 | 400 |
| 4 | 1600 | 2000 | 65 | 50 | 40 | 65 | 20 | 20 | 400 |
| 5 | 1600 | 2500 | 80 | 65 | 40 | 80 | 20 | 20 | 400 |
| 6 | 1800 | 2300 | 80 | 65 | 50 | 80 | 20 | 20 | 400 |
| 8 | 2000 | 2500 | 80 | 65 | 50 | 80 | 20 | 20 | 500 |
| 10 | 2200 | 2600 | 100 | 80 | 50 | 80 | 20 | 20 | 500 |
| 15 | 2200 | 3900 | 100 | 80 | 50 | 80 | 20 | 20 | 600 |
| 20 | 2600 | 3700 | 100 | 100 | 80 | 80 | 20 | 20 | 600 |
| 30 | 2800 | 4800 | 100 | 100 | 80 | 80 | * | * | 600 |
| 40 | 3000 | 5000 | 100 | 100 | 80 | 80 | * | * | 600 |
| 50 | 3500 | 5200 | 120 | 100 | 80 | 80 | * | * | 600 |
| 60 | 3500 | 6200 | 120 | 100 | 80 | 80 | * | * | 600 |
| 80 | 4000 | 6400 | 150 | 120 | 80 | 80 | * | * | 600 |
| 100 | 4000 | 8000 | 120 | 120 | 100 | 100 | * | * | 600 |
5000L sanitary stainless steel horizontal water storage tank
Dafeng ompany was established in 1995. Product passed CE,ISO9001 certification.
why choose us?
1.Integrates development and manufacturing in-house,can provide all project design.we also have our pipeline install team,various of tank accessory,we can do design the whole project,tank and pipeline install,debugging and so on.
2.Specializes in manufacturing all tryes of tanks and related products.
3.Conveninent transportation/close to Ningbo Port.
4.We have more then 10 years of experience in supplying tanks and pipeline install.
