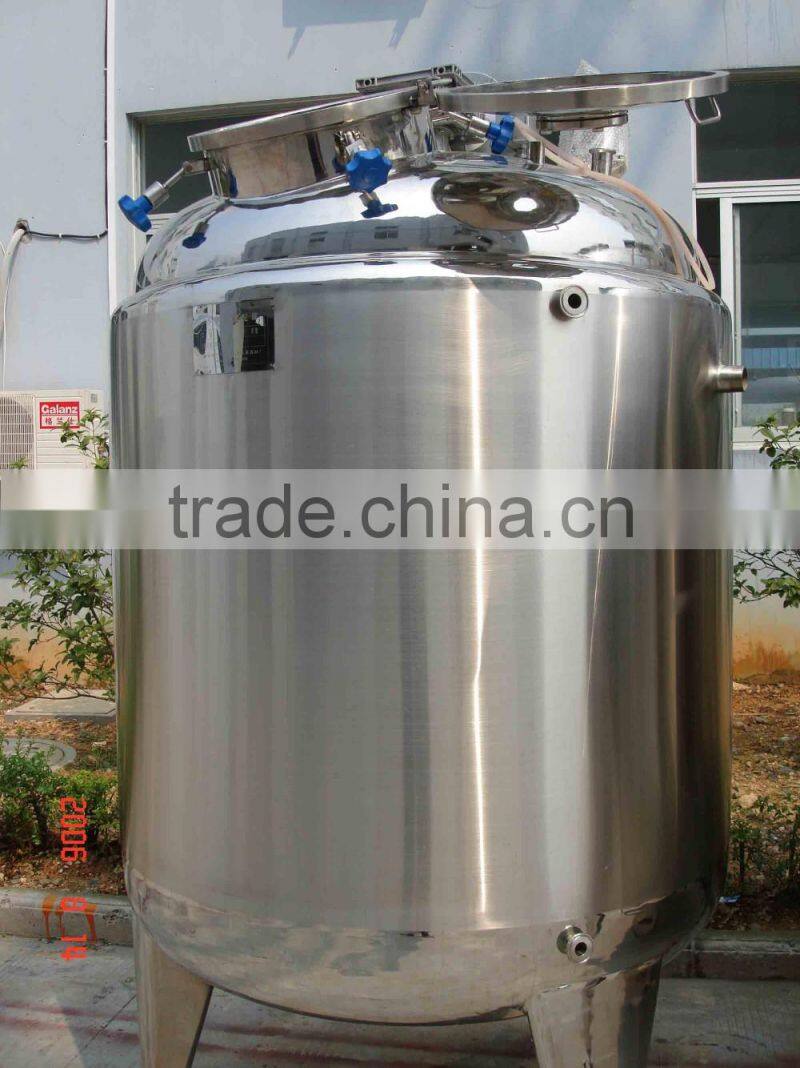

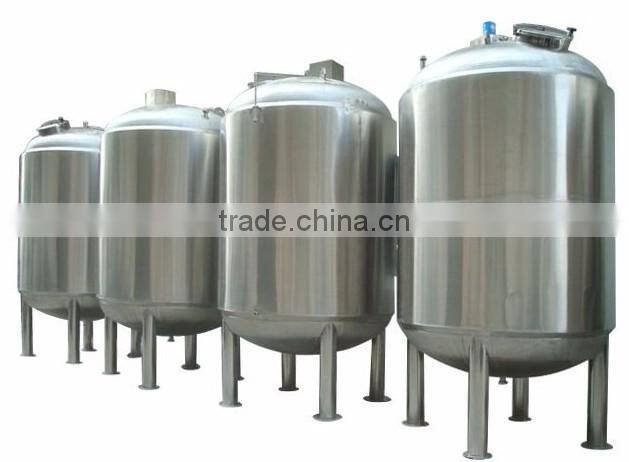

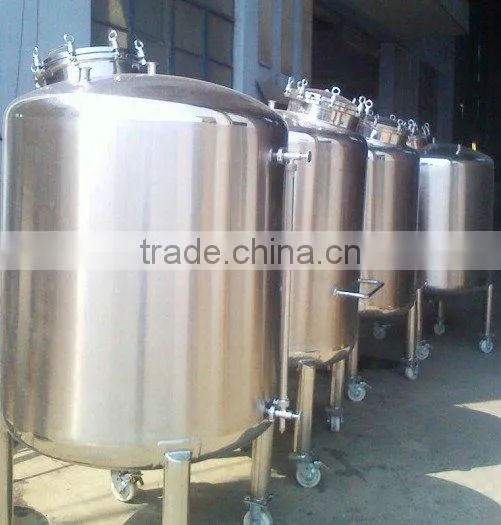

Hot water Storage Tank:
The storage tanks have heat preservation function, are manufactured , or pressure tested and accepted according to steel pressure containers ,it is used for being store hot water.
To tanks with capacity of 1000L-20000L, they can be design and manufactured according to your requirements.
The instant joint on tank body is international ISO standard instant clamp, attached by high-precision level meter, digital temperature meter, tank cleaner, view mirror, manhole and several instant joints etc.
The body is made of imported 316L or 304, internal surface is mirror polished Ra0.28-0.45μm, the external surface mirror polished.
The heat preservation materials outside shall be resistant to high temperature.
Accesorries:
| Symbol | A | B | C | D | E | F | G | H | I | J | K | L | M |
| Usage | Manhole | View mirror | Spare vent | Connector of liquid level meter | Steam inlet | Material inlet | View lamp | Spiracle | CIP inlet | SIP inlet | Steam outlet | Temperature measuring vent | Material outlet |
Technical Parameters
| Nominal volume(L) | Working pressure | Working temperature | L (MM) | L1 (MM) | D (MM) | D1 (MM) | H (MM) |
| 1000L | 0.098 | 100 | 1950 | 1500 | 1050 | 900 | 300 |
| 2000L | 0.098 | 100 | 2300 | 1800 | 1400 | 1200 | 300 |
| 3000L | 0.098 | 100 | 2600 | 2000 | 1600 | 1400 | 300 |
| 5000L | 0.098 | 100 | 3250 | 2500 | 1800 | 1600 | 300 |
| 8000L | 0.098 | 100 | 4300 | 3500 | 1900 | 1700 | 300 |
| 10000L | 0.098 | 100 | 4700 | 3800 | 2100 | 1900 | 350 |
| 20000L | 0.098 | 100 | 5650 | 4500 | 2600 | 2400 | 350 |
| 30000L | 0.098 | 100 | 6250 | 4800 | 3000 | 2800 | 350 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Choose us and get more benefits:
1. Deliver innovative products in the market at a faster pace;
2. Enhance the reliability of product’s quality;
3. Decrease the total cost of the product effectively;
4. Improve research personnel’s ability of creative design;
5. Gain more leading technologies about product development and increase the competitive advantage of products.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
