Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Reactor > Chemical Jacketed Reactor Prices

Chemical Jacketed Reactor Prices

US$ 2,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Automatic Grade:

Automatic

Type:

Tower Reactor

Contact Supplier Request Quote Chat Now

Advanced Tech. Co., Ltd. Wenzhou

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Automatic Grade Automatic

Type Tower Reactor

Place of Origin Zhejiang, China

Brand Name DF

Model Number DF-JE-01

Voltage 220/240/380 volt 50/60 Hz

Power(W) customized

Dimension(L*W*H) According Specific Requirement

Weight 50- 15000 Kgs

Certification CE,ISO9000

Warranty 2 years

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Chemical Jacketed reactor prices
2.Widely used in pharmacy,chemical field
3.10years experience
4.Competive prices

Widely used in:

traditional industry, food project,extraction,biological fermentation process and chemical industry.

Main Information:

Category	Reactor
Name	Stainless Steel Reactor
Characteristic	1. Stainless steel reactor, inner and out side mirror polishing, easy to clean. 2. Materials of stainless steel 316L or 304. 3. It can be vacuumed or pressurized, with jacket /single layer / tri-layers stainless steel structure . 4.Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation. 5. We can supply the tank with range from 50L to 20,000L or even larger. 6.Motor with adapter: 40W-15KW 7.Rotation Speed:0-1500r/min 8.Jacket diameter:60-3200mm 9.The type of shaft sealing contains packing seal, double mechanical seal, and magnetic drive static seal
Package	Export standard packing ,Wooden case, or according to customers request.
Min order	1 Set
Delivery time	One month
Price terms	FOB ningbo
Configurations:	1) Manhole 2) CIP cleaner 3) Thermometer 4) Agitator

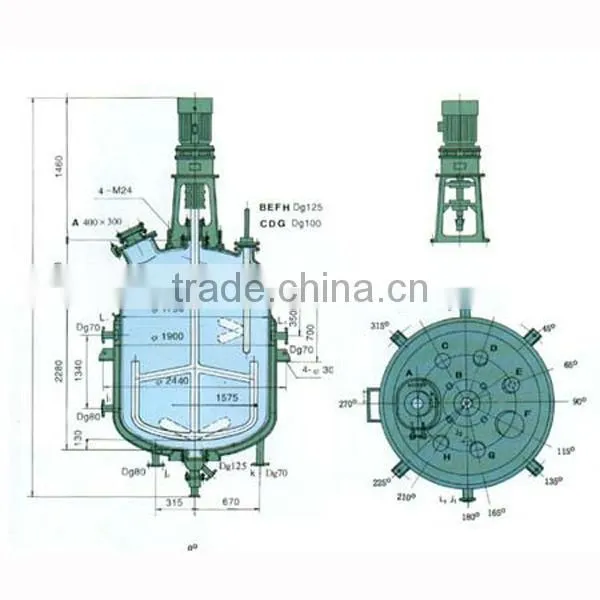

Technical parameters:

Nominal capacity (L)	Actual capacity (L)	Electric power (KW)	The jacketed capacity (L)	The inner pot size (Ømm)	The outer pot size (Ømm)	Reducer Model	Motor power (n / kw)	Stirring speed (n / min)
50	61	3 × 2	95	400	600	m3	1450/0.6	60-80
100	120	6 × 2	120	500	700	m3	1450/0.6	60-80
200	247	6 × 3	200	600	800	m4	1450/1.5	60-80
300	35.5	6 × 3	250	700	900	m4	1450/1.5	60-80
500	589	9 × 4	290	900	1100	m6	1450/2.2	60-80
1000	121.5	12 × 4	560	1200	1400	m8	1450/4	60-80
2000	2244	15 × 5	750	1400	1600	m8	1450/4	60-80
3000	3201	15 × 5	1015	1600	1800	m8	1450/7.5	60-80
4000	4020	15 × 5	1226	1600	1800	m10	1450/7.5	60-80
5000	5170	18 × 5	1400	1800	2000	m10	1450/7.5	60-80

Our Factory:

Zhejiang Dafeng Light Industrial Industrial Machinery Co.,Ltd can provide our customers with high quality stainless steel Chemical Reactors with agitation to process product. These tanks with high pressure resist,high temperature resist for dye,paper,pharmaceutical,and other chemical process industries,standards meet to national pressure vessel manufacture requirements.
