Introduction
Dafeng company specialized in developing, designing, and manufacturing chemical reactor, storage tank, movable tank with various volume.
Application
Widely used in petroleum, chemical, rubber, pesticide, dye, medicine and food industry. Used to complete the curing, hydrogenation, alkylation, polymerization, condensation process.
Structure and Features:

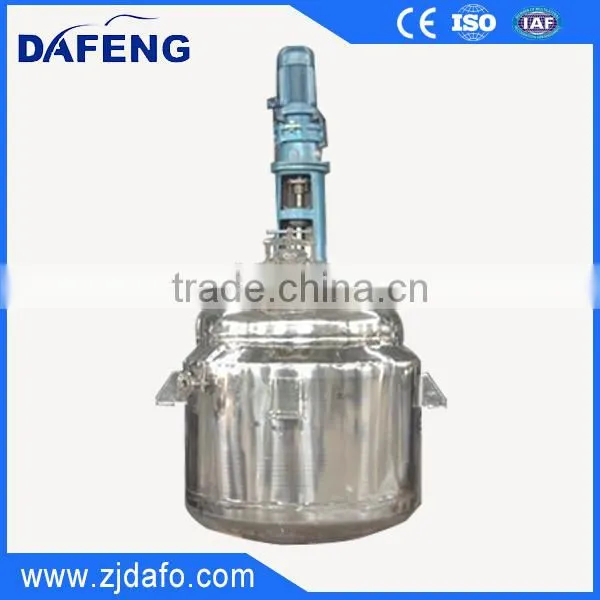

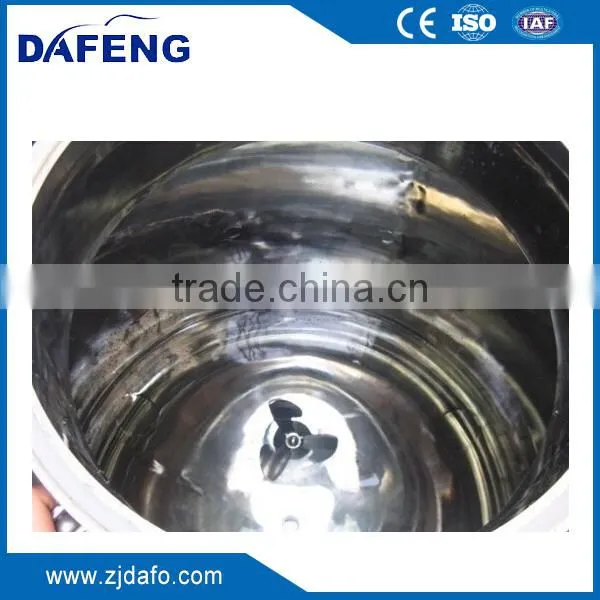

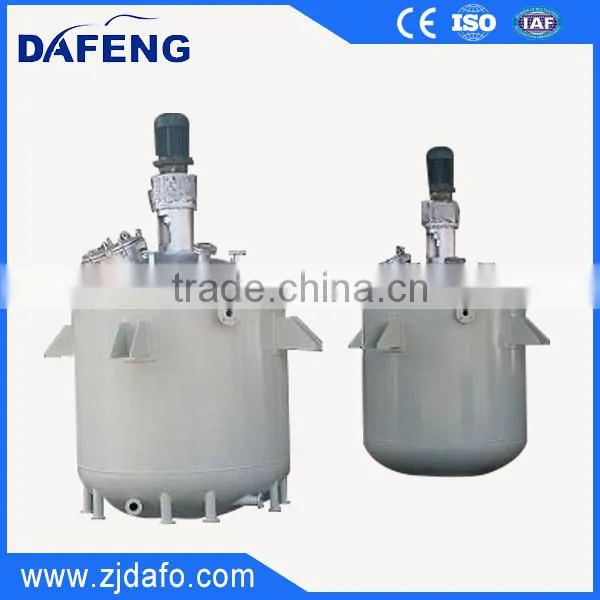

Reactor consists of the reactor body, tank cover, jacket, agitator, transmission, shaft seal device and supporting. According to the structure features, reactor can be divided into open-type reactor of flush cover, open welded flange-type reactor and the closed reactor three categories.
It can configured with various mixing method, like high speed disperser, high speed homogenizer paddle mixer, anchor mixer or high shear homogenizer, (kindly pls refer to below chart)
Configurations
2) CIP cleaner
3) Thermometer
Main technical parameter:
Nominal volume(L) |
Actual capacity(L) |
Electric power |
Jacket volume (L) |
Within the pot size Φ(mm) |
Outer the pot size Φ(mm) |
Reducer type |
Motor power (n/kw) |
Speed of agitator (r/min) |
50 |
61 |
3×2kw |
95 |
400 |
600 |
M3 |
1450/1.1 |
60-80 |
100 |
120 |
6×2kw |
120 |
500 |
700 |
M3 |
1450/1.1 |
60-80 |
200 |
247 |
6×3kw |
200 |
600 |
800 |
M4 |
1450/1.5 |
60-80 |
300 |
355 |
6×3kw |
250 |
700 |
900 |
M4 |
1450/2.2 |
60-80 |
500 |
589 |
9×4kw |
290 |
900 |
1100 |
M6 |
1450/3 |
60-80 |
1000 |
1215 |
12×4kw |
560 |
1200 |
1400 |
M8 |
1450/4 |
60-80 |
2000 |
2244 |
15×5kw |
750 |
1400 |
1600 |
M8 |
1450/5.5 |
60-80 |
3000 |
3201 |
18×5kw |
1015 |
1500 |
1700 |
M8 |
1450/7.5 |
60-80 |
4000 |
4020 |
18×5kw |
1226 |
1600 |
1800 |
M10 |
1450/7.5 |
60-80 |
5000 |
5170 |
20×5kw |
1400 |
1800 |
2000 |
M10 |
1450/7.5 |
60-80 |

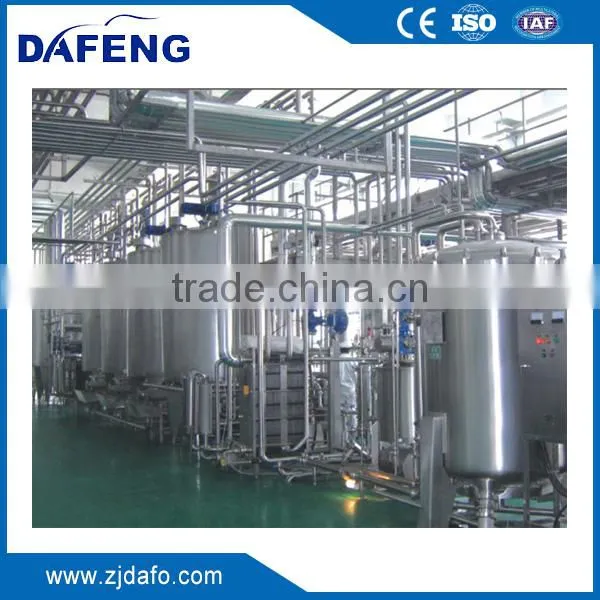

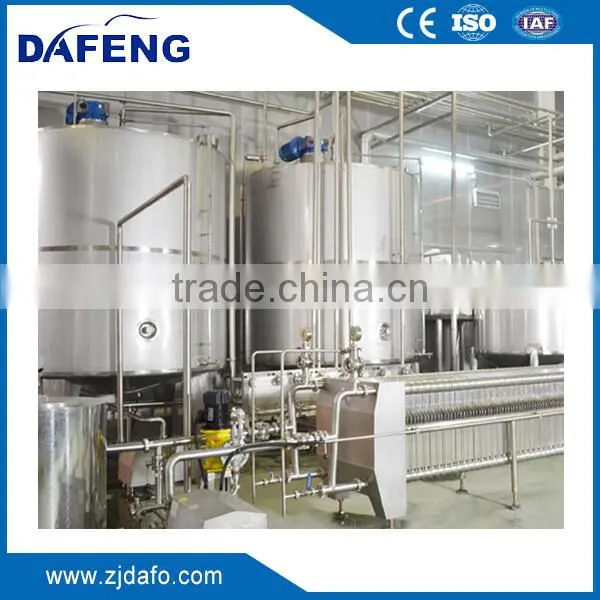

Reactor Plant made For Our Users
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
