Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Jacketed Pressure Vessels

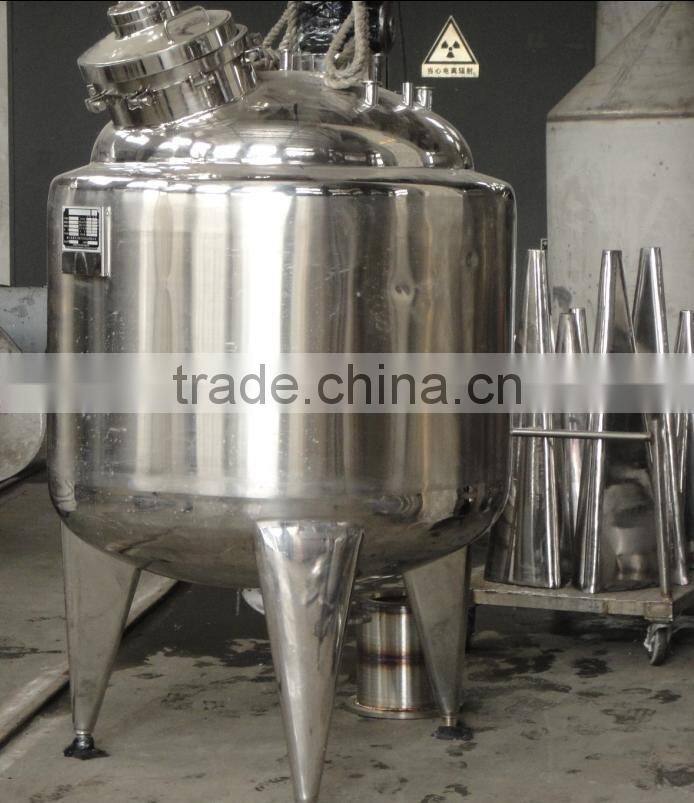

Jacketed Pressure Vessels

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Agitator

Product Type:

Detergent Powder

Contact Supplier Request Quote Chat Now

Advanced Tech. Co., Ltd. Wenzhou

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Agitator

Product Type Detergent Powder

Application Liquid with Suspended Solids

Additional Capabilities Milling

Place of Origin Zhejiang, China

Brand Name DF

Model Number PLG-1

Voltage customized

Power(W) as per required

Dimension(L*W*H) as per required

Certification CE

Warranty 2

After-sales Service Provided Engineers available to service machinery overseas

Specifications

stainless steel pressure vessel
1.stainless steel 316l;
2.volume 5hl-300hl
3.reliable quality
4.agitators

Product story

This batch of project including 5 tons, 10 tons, 20 tons high grade reaction tank,which made of stainless steel 316L ,pressure up to 5-9 kg, for a well-known industry leader company of chemical auxiliaries production,

We met each other on web in late 2010 under the referral of a warm-hearted customer, after many times technology consultation,reached a aggreement in early 2011 for first batch of goods, three months after,

all equipments are shipped timely,again in December and after receipt of the goods,our customer ordered his 2rd small laboratory autoclave, in 2012,his production manager place the 3rd test order, again in the following season,he pushed with a more bigger order...repeat and repeat, we are so proud of his,a long term co-partner in his business for three years,for such a company, thank so much for your support,our be loved customers!

We are continue to pursue the improvement of our superior quality.

Application-can use for liquid & powder mixing,storage,acid or alkali process,temperature treatment,chemical blending and so on for the pharmacy,medicine,beverage and chemistry.

Dafeng company can supply you with various kinds of mixing tanks,vessels etc.

Detailes pictures

Technical Parameters

1.Material imported stainless steel 316L or 304,

the inner surface polishing≤ Ra0.4μm,while the outer surface roughnessRa0.8μm.

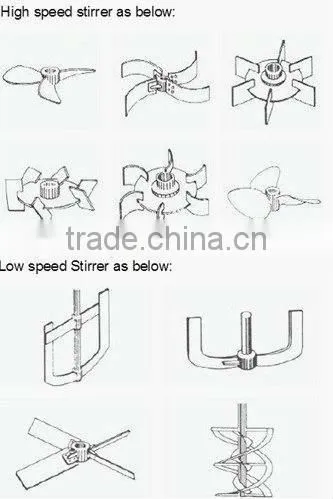

2.Mechanical stirring on the top or magnetic stirrer at the bottom

are to your choice,can be any of propeller stirrer,anchor stirrer or frame stirrer.

3.Equipped with Air respirator, thermometer and temperature controlled systems,steam sterilization population,health type inlet hole, liquid level gages, CIP spray cleaning ball or configures can according to customer requirements.

4.Jacket according to customer requirements, half-coil pipe, full jacket and honeycomb plates.

5.Insulation according to customer requirements, using rock wool,Polyurethane Foam:the outer can be polished by matte processing,mirror etc.

6.Spec: 5,000L-30,000L

Mixer type for high speed or slow speed

Primary technical data sheet

Volume(L)	Diameter of the inner (mm)	Diameter of the jacket (mm)	Power of motor (kw)	Stirring speed (r.p.m)
100	550	650	1.1-1.5	60-85
150	600	700	2.2	60-85
200	650	750	2.2	60-85
300	800	900	2.2	60-85
500	900	1000	2.2	60-85
800	1100	1200	4	60-85
1000	1200	1300	4	60-85
1500	1300	1400	4	60-85
2000	1400	1500	4	60-85
2500	1400	1500	7.5	90
3000	1400	1500	7.5	90
3500	1400	1500	7.5	90
4000	1500	1600	7.5	63
5000	1600	1700	7.5	63
6000	1800	1900	15	100
8000	2000	2100	15	100
