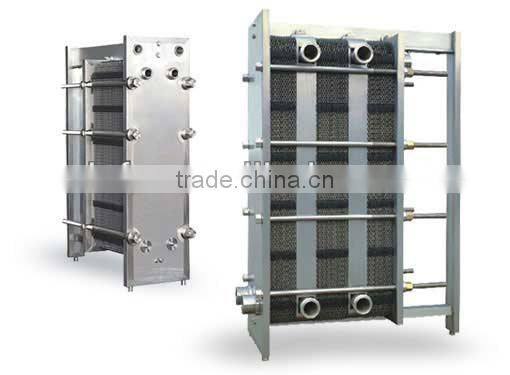

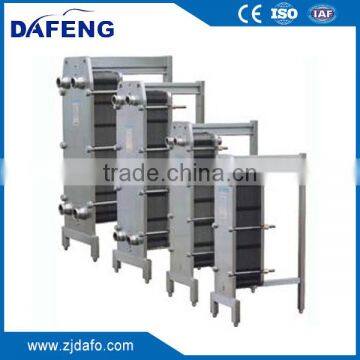

Plate and frame heat exchanger
- 200 Set / Sets per Month
- ningbo
- Credit Card
You May Like
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | DAFENG | Model Number | DF-G | |
Structure | Plate Heat Exchanger | Liquid Flow Rate | 3000L/H | |
Maximum Working Pressure | 1.0-1.6MPa | Certification | CE | |
Warranty | 2 Years |
Product Description
Design feature:
1 Energy-efficient
2 Compact structure
3 Easily clean and dismantling
4 Long service life
5 High adapt ability
Applications:
Plate heat exchanger has been widely used in metallurgy, mining, petroleum, chemical, electric power, medicine, food, chemical fiber, paper making, textiles, shipbuilding, heating, and other departments, can be used for heating, cooling, evaporation and condensation, the sterilization, waste heat recovery and so on
Technology parameter
Item | Standard |
Single chip heat exchange area | 0.8016m2 |
Distance between plates | 4.4mm |
Single passageway sectional area | 0.002035m2 |
Maximum throughput | 560m³/h |
Plate external dimensions | 1750*610*0.7mm |
Effective heat exchange area | 0.8016m2 |
Monolithic weight | 5.926kg |
Angle hole size | 195mm |
Corrugated height | 3.7mm |
Corrugated type | isosceles triangle |
Flange size | 200DNmm |
Operating temperature | ≤150°C |
Operating pressure | 1.6MPa,1.0MPa |
Angle hole diameter | 195mm |
Normal corrugated pitch | 16mm |
Passage width | 550mm |
Average plate spacing | 4.4mm |
Single passageway sectional area | 0.002035m2 |
Average equivalent diameter | 7.4mm |
Plate material | 304 316 316L |
Application
Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry: Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
Certificate
After Service
1.Warranty Period: one year (Attention: Machine's warranty range don't include damageable Spare Parts;For other parts,providing new free parts for clients in warranty period)
2. Supporting for technique
3.Free train using machine and free repair
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
