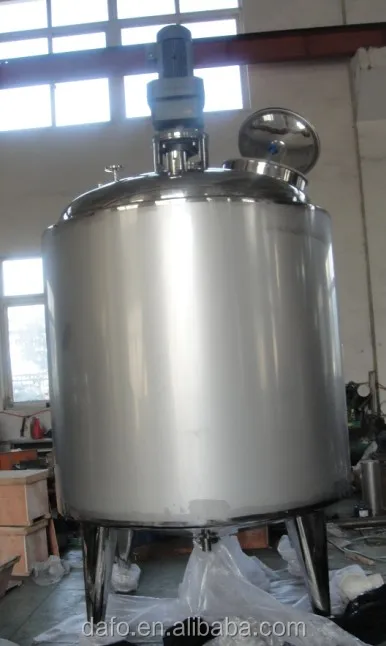

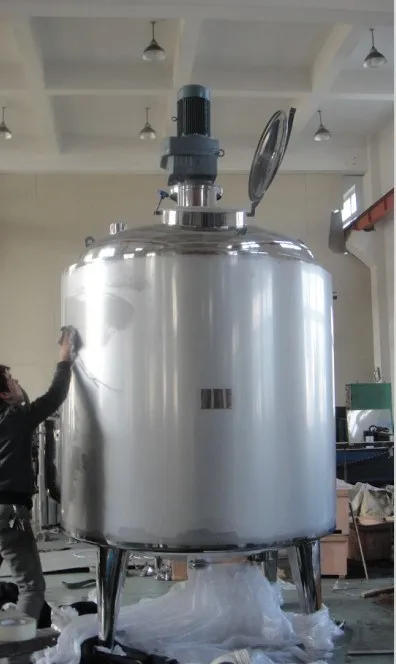

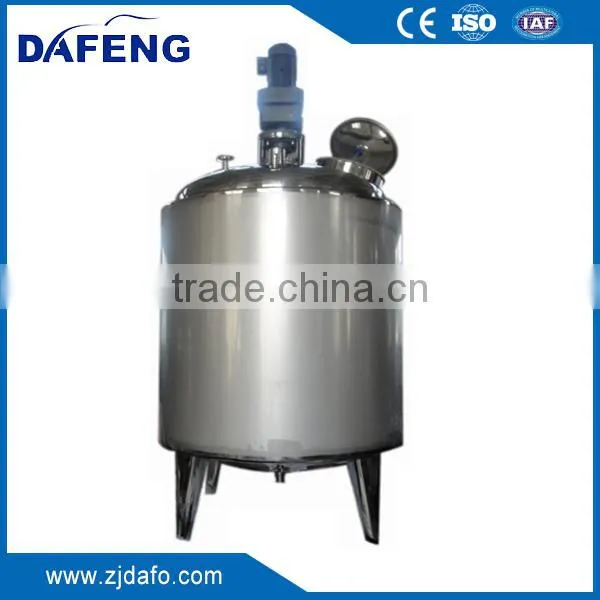

Stainless steel mixing tank

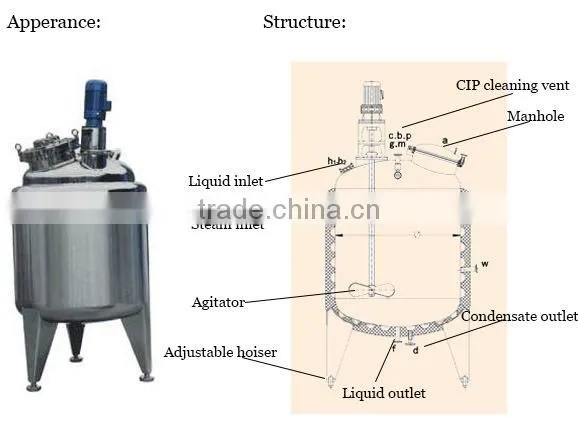

Structure of Cosmetic Mixing tank
♣1. Electric heating or Steam heating
♣2. Jacketed with insulation layer (PU or rock wool)
♣3. With or without mixing system. Mixing device: Paddle, Anchor, or spiral agitator (optional and changeable to meet customer demands).
♣4. Material: SUS 304 or SUS 316.
♣5. Outer casing surface: Mirror polishing / 2B original sub-gloss / 2B frosted sub-gloss; Inner surface (bladder and tank): Mirror polishing (Roughness: Ra≤ 0.4μ M ).
♣6. Liquid level gauge: Digital metre or glass gauge optional.
♣7. Thermometer: Optional. Temperature indication ranges from 0 to 150º C.
♣8. Sample valve optional 1
♣9.CIP cleaning: T-shaped 360° Rotational CIP cleaning ball.
♣10. Man-hole equipped.
Specification：
1 the heat preservation material of the vessel is high-temperate resistant and anti-aging polyurethane blister or rock wool.
2 the internal bladder adopts imported stainless steel SUS316L or SUS 304. the internal surface adopts mirror polishing unit RA less than 0.28um,and the external surface adopts polishing, mirror polishing,sandblasting ,cold rolling original color matte treatment.All of the above conform to GMP standard.
3.air spiracle,thermometer(digital indication type or dial plate type) CIP cleaning vent,sight glass,anti-explosion view lamp(integrated sight glass and view type),SIP sterilization vent, liquid inlet and outlet ,sanitary manhole and etc.
4 the volume varies within the range of 100L-20000L ,or design and manufacturing can be made according to actual requirements of customers
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
cercificate:
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
