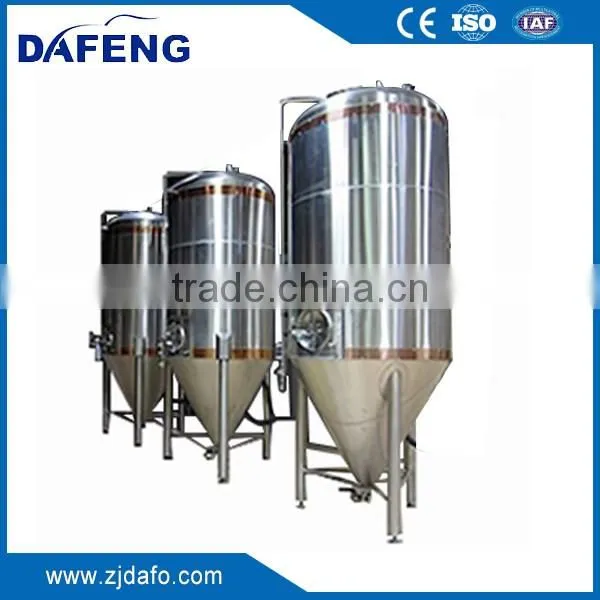

15bbl SS.304 beer fermentation tank

15bbl SS.304 beer fermentation tank

CE 2000 and ISO 9001 certificate.

metimes they are custom-made to meet special requirements.



Equipment Advantages-

1.The inner fermenting tanks are adopted stainless steel SUS304,using polyurethane as insulating layer.

The cooling jacket adopts dimple jacket.The jacket are provided at tank body and conical bottom to effectively 2.increase the cooling speed.The outside scarfskin is according to the customers'requirement.You can choose stainless steel polishes,mirror polishing or satin polishing.

3.Adopted the international standards of fermentation technology.

4.All the joints and interior surface adopt mirror polishing to avoid dead corner.

5.Completely meet the GMP standard.



1.PRODUCTION INFORMATION

Description of goods	BEER FERMENTATION
Capacity	customized
MOQ	1 PC,THE MORE THE CHEAPER
Lead time	30 days,based on your demand
Packaging	exporting standard wooden case,up to you.
Payment	T/T,L/C, Western Union
Supplying ability	More than 500 pcs per year,based on the capacity
Port of loading	NINGBO
Trade term	FOB,CIF
Material	FOOD GRADE S.S.304



2.TECHNICAL SPECIFICATION

Inner surface	S.S.304,WELL POLISHED,polishing precision≤0.4µm,THK:2-4mm
Outside surface	S.S.304,frosted or mirror,THK:1.5-3mm
Top shape	Seal head or conical head
Conical degree	60-90°c

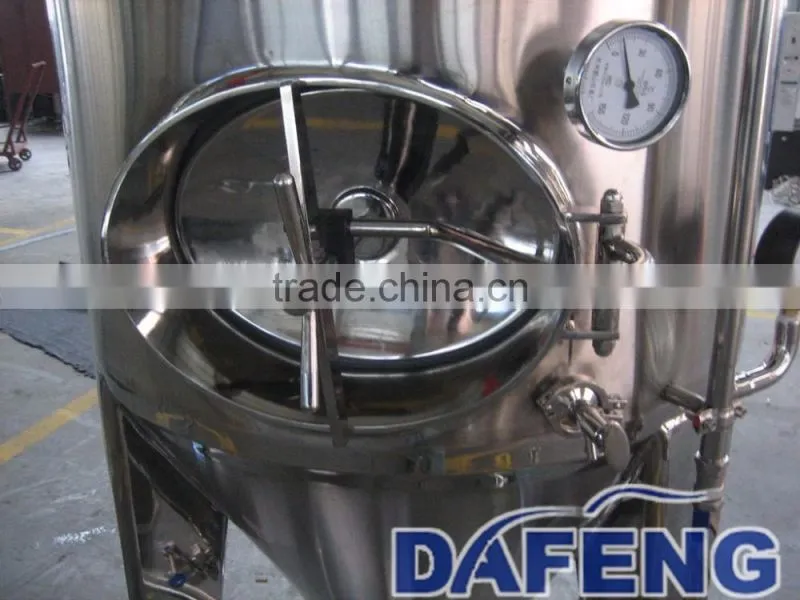

Manhole location	Side upward/side/flanged
Insulation	Material:PU,THK:50-100mm
Cooling jackets	DIMPLED cooling jackets at bottom and side wall.
Spray ball	Located in the center of inside of the tank
Pressure	0.2MPa
Thermometer	Bi-metal thermometer
Legs	3/4 round legs,can designed to be adjustable
The ratio of working volume to gross volume	4/5
Operational method	Automatic or manual
Technology processing	Argon-arc welding,well weld in double sides.

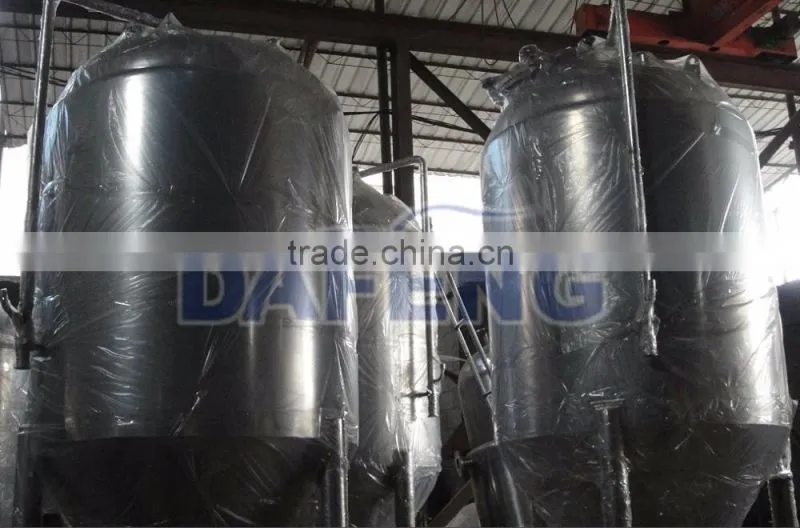

Product Display











Shipment

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.

Our company’s quality certification:

We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.

Our company’s advantages over other companies:

      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
