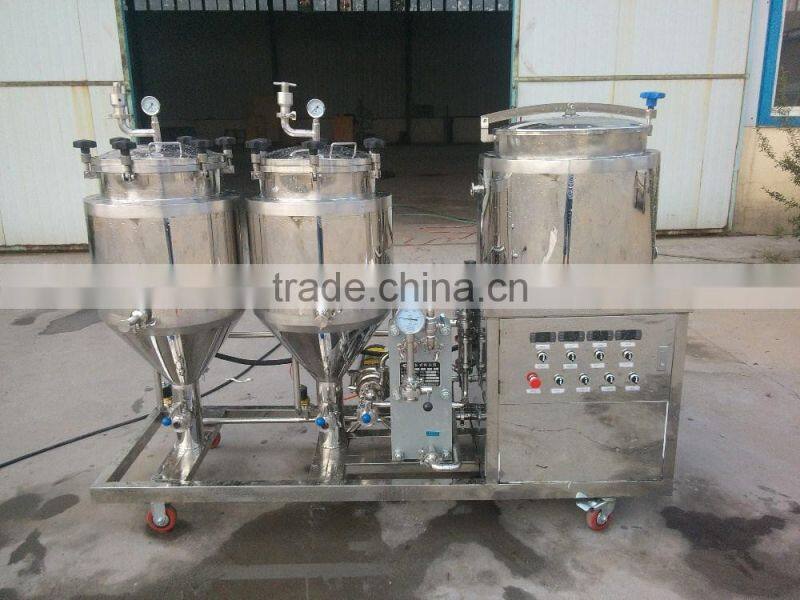

50l beer equipment
Now craft beer brewing is more and more popular,so micro beer brewing system also becomes more and more popular.50L equipment is one type that customers prefer.It is easy to operate and facilitated to installation.
50L equipment material made of stainless steel 304or 316L.Which one you will choose is up to your personal preference.But their configuration is same,just the material is different.
The whole brewing system contains as below:
1.mash system
|
Mash system
|
Mash& Lauter Tank&kettle |
Gross capacity:80L Useful capacity:50L Outer :Ø500 mm;
|
Stainless steel |
1.Material: Inner(SUS304),thickness: 2mm; 2.Cylinder:thickness:2.0mm. 3. Inner surface treatment: welds grinded to Ra 0.6µm. 4. Insulation: Polyurethane-thickness 50 mm. 5. Temperature way:0-150C thermometer 6. Outsourcing surface: Weld polishing processing |
Wort pump |
Capacity:1000L/h Inlet 25, exit 25 |
CNDG-0.1T |
Stainless steel food deliver pump Power:0.37KW, lift:10m, Rev:2880r/min |
|
Plate Heat exchanger |
2 square meter |
CNDG |
Design pressure:1.0Mpa, work temperature:150° exchange board material SUS304 |
2.Fermentation system
Fermentation system |
Fermentation tank |
– 2pcs Double wall stainless steel tank; Gross capacity:100L Useful capacity:50L Outer :Ø500mm; Height: 1400 mm; |
Stainless steel |
1.Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm 2.External-Jacket(SUS304) thickness: 1.5mm; 3.Oval head cone bottom, 4.Surface: Finish2B (attached 360 degree Omni cleaning ball). 5.Mirror surface finish inside. 6.Insulation: Polyurethane-thickness 50 mm. 7.Equipment with : cone 60 ° resist compression design 8.Cleaning System: All-round cleaning |
ntrol system
|
Control system
|
Mashing control |
Manual control
|
Mixing, rotation, wort pump |
Fermenting control |
Temperature, pressure, |
||
Cleaning control |
Cleaning |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment

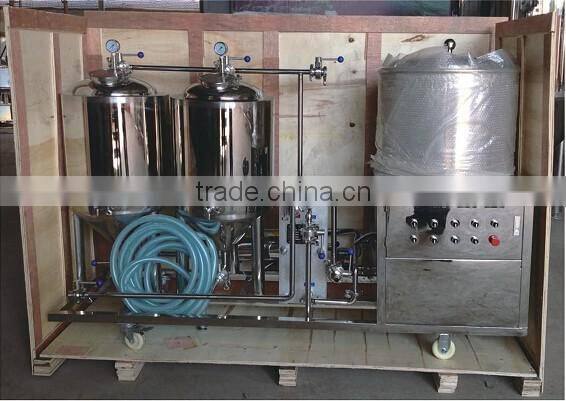

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
