- Material: 304-2B stainless steel
- Isolation: PU foam
- Capacity: 200 to 20,000L
- Dimple pad cooling jacket in the tank body and conical bottom, efficiently cools the tank in all parts
- Cooling exchange areas are available in different designs
- Conical bottom in 60 degrees is designed for the yeast fermentation processing

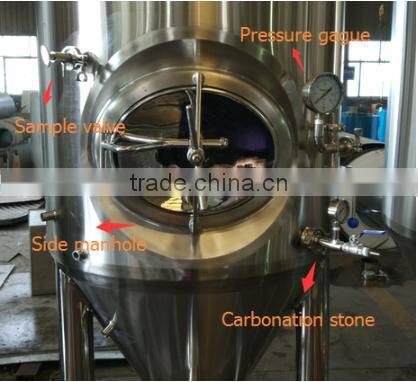

- Configure: CIP socket,sideway manhole,strong leg supports, temperature gauge and sampling socket
- Applications: winery, brewery storage and fermentation
(Mash Tun)
- Material: 304-2B stainless steel
- Isolation: Rockwool foam
- Capacity: 200 to 20,000L
- Full heating jacket in the tank body and flat bottom,efficiently heats the tank in all parts
- One set of complete paddle agitator device,including one motor output speed 36rpm or 60rpm.
- Has one electric control box,for switch on/off,stirring on/off,displaying temperature etc.
- Configure: CIP socket,sideway manhole,strong leg supports,temperature gauge and sampling socket etc,inner&outer mirror polish.
- Applications:Mashing malt
(Bright beer tank)
- Material: 304-2B stainless steel
- Isolation: PU foam or Single layer.
- Capacity: 200 to 20,000L
- Dimple pad cooling jacket in the tank body and seal bottom,efficiently cools the tank in all parts
- Cooling exchange areas are available in different designs
- Configure: CIP socket,sideway manhole,strong leg supports, temperature gauge and sampling socket
- Applications: Beer brighting and storage.
Those product is widely used in such industries as brewing, dairy product processing, etc..

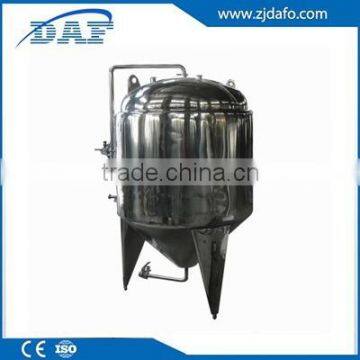

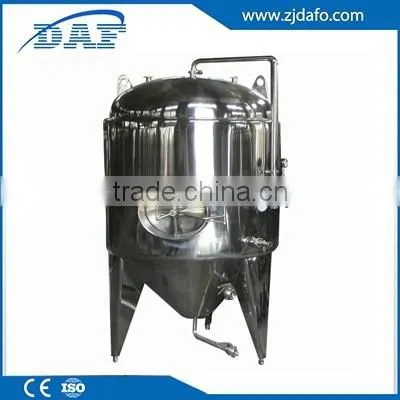

The Conical Fermenter is a beautifully designed product for the discriminating brewer.Its features provide commercial brewery functionality at a consumer good price.
The Mash Tun is a high-efficiency production for the malt mashing,and the bright beer tank is for beer brighting and cooling,storage.
It is easy to use and load with standard features. Clearly the best and only way to siphon clear beer or wine!
Introduction:
Adopted the international standards of fermentation technology,diverse methods to control the temperature,the inner surface of the tank are mirror-polished.
Completely meet the demanding of PLC and sterilize system.
The basic line:

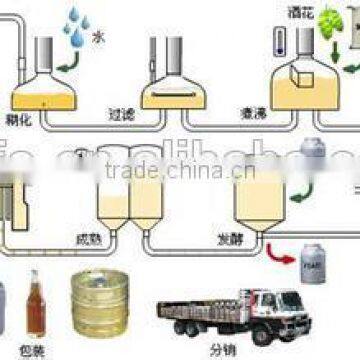

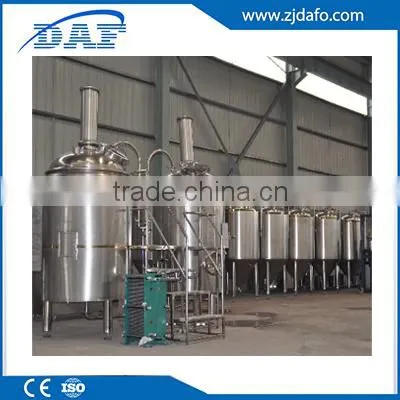

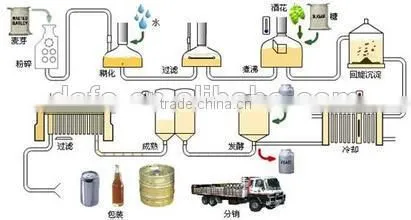

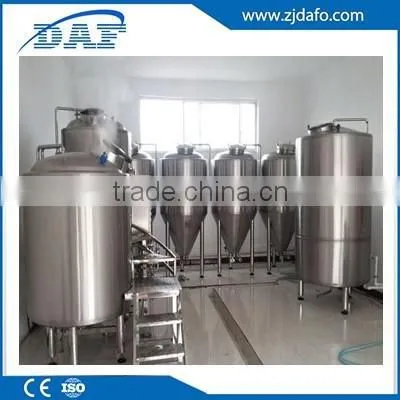

1,Malt mill+2,Mashing process+3,Lautering&whirlpool process+4,Cooling process+5,Fermenting+6,Bright beer tank etc,which is according to your actual need.
TECHNICAL PARAMETERS:Number | Specification | Conical angle | Inner diameter/overall height | Correspond |
1 | 7BBL FST | 60° | 1000-2418/1000-2520 | 8HL FST |
2 | 10BBL FST | 60° | 1000-2990/1100-2720 1200-244-/1200-2580 | 12 HL FST |
3 | 15BBL FST | 60° | 950-3955/1100-3745 1200-3170/1300-3110 1400-2680/1400-2790 | 17 HL FST |
4 | 20BBL FST | 60° | 1200-4105/1300-3490 1350-3665/1400-3170 1500-3340 | 34 HL FST |
5 | 30BBL FST | 60°/80° /105 ° | 1500-4905/1600-3860 1700-3625 | 35 HL FST |
6 | 40 BBL FST | 60° | 1700-4255/1800-3960 1800-4050/1900-3580 1900-3860/2000-3440 | 46 HL FST |
7 | 50 BBL FST | 60° | 1700-4855/1800-4620 1900-4360 | 58 HL FST |
8 | 60 BBL FST | 60°/90° | 1800-5150/1900-4860 2000-4660/2100-4580 | 70 HL FST |
9 | 80 BBL FST | 60°/90° | 2000-5580/2100-5335 2200-4400 | 93 HL FST |
10 | 100 BBL FST | 60°/65°/70°/75° | 2100-6140/2300-5250 2300-5060/2200-5540 | 116 HL FST |
11 | 105 BBL FST | 60°/65° | 2100-6300/2400-5180 2100-5895/2400-5000 | 139 HL FST |
12 | 120 BBL FST | 60° | 2100-7000/2200-6400 2200-6600/2700-5400 | 139HL FST |
|
| 90° | 2100-6380 |
|
Accessories are provided:
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier,who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment

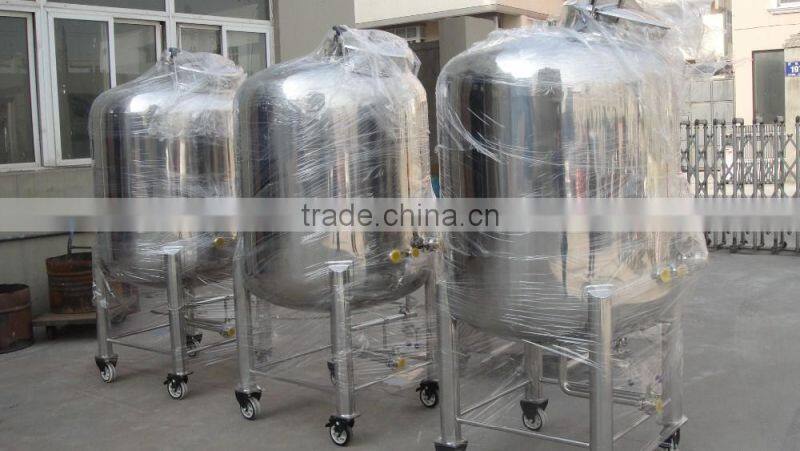

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
