Home > Products > Filter Accessories > pulse jet dust filter valve used as the dust collectors spare parts

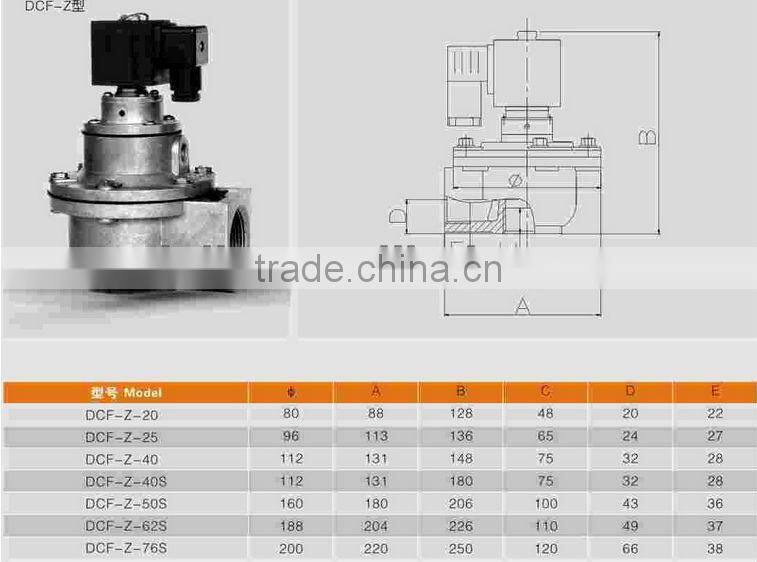

pulse jet dust filter valve used as the dust collectors spare parts
- 1000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
Product Details
Standard or Nonstandard: | Other, Standard, Standard | Structure: | Diaphragm | Pressure: | High Pressure |
Power: | Hydraulic | Material: | Casting | Temperature of Media: | High Temperature |
Media: | Gas | Port Size: | 3/4", 1", 1 1/2", 2", 2 1/2", 3" | Place of Origin: | Shandong, China |
Product Description
Specifications
1.Pulse diaphragm valve for bagfilter use2.Size: 3/4", 1", 1 1/2", 2", 2 1/2", 3"
3.ISO9001:2008
4.World-class diaphragms
Packaging Detail: | Carton box, 4/6/8/10pcs per carton box |
Delivery Detail: | Within 10 days |
Specifications
1.Pulse diaphragm valve for bagfilter use
2.Size: 3/4", 1", 1 1/2", 2", 2 1/2", 3"
3.ISO9001:2008
4.World-class diaphragms
The great operating-performance of Pulse diaphragm valvereflects in: Sensitive and reliable signal, Low internal-resistance, Large gas-displacement, High airflow impact-force, Stable working, Long operating-life.
The technical characteristics of ourPulse Valve:
1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;
2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;
3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we are the only company in China to use high-performance diaphragm so that it ensures long-term operation reliability. it’s the same supplier. We guarantee at least 1millon times of service life(5 years).
4. We are using high-quality pressure spring to guarantee at least 1millon times of service life.
Connection port(G) | 3/4",1",1 1/2", 2", 2 1/2",3'',4" |
DN (mm) | 20,25,40,50,62,76,80,102mm |
Material of valve body | aluminum |
Working pressure | 0.2---0.6Mpa (29Psi--87Psi) |
Working medium | clean air |
Voltage | DC24V/AC220V/50Hz) |
Current | 0.8A(0.05A) |
Temperature | -10. C--80. C (14. F--176. F) |
The relative humidity of air | no more than 85% |
Diaphragm life | 1 million times(5 years) |
