Hot Sale Automatic Compressed Wood Pallet Making Machine

Specifications

Hot sale Automatic compressed wood pallet making machine

The mould press pallet machine is one of our main products, which meets with environmental protecting requirements. With the advantages of light, good integrity, no nails and thorns, on-toxic and tasteless, non-rot, easy to clean, on combustion, no spark, waterproof, anti-explosion and anti-skid, guarantine-free, high recycling value and so on, it has been widely used in the storage and transportation of many industries such as food tobacco, pharamaceutical, chemical, machinery, electronic appliances, texcile, auto parts, beer and others, which is highly improving the work efficiency.

Note: include one set mould (any moulds size you like). We make mould according your design.

The machine can change mould to make different size of pallets.

The moulds can be designed according to the customer’s requirements

One set mould include: upper mould and lower mould, total about 3 ton.

Feature of final pallets:

1. High temperature, high pressure can press the materials into pallet one time, standard size,

 without metal materials in the pallets.

2. Pallet can be used in export package, free fumigation, and free quarantine, do not need any test before export.

3. Reasonable design of the structure, high performance.

4. According to the European standard, biodegradability.

5. Water proofs, insect prevention, and protection against termites, antisepticises and do not easy to burn.

6. Strong bearing capacity, no deformation and can be reused.

7. Can be forked from four directions, easy to use the pallets.

8. Can be store in bulk, save room, easy to be transported.

9. Light weight, beautiful shape.

10. Can bearing dynamic load: 3000kg, bearing static load:1500kg

11. As size 1200*1000*14mm one pallet need about: 4kg glue, and 15kg materials, final weight will be 18.5kg.

Crusher: (Quantity: 1 unite)

The crusher is used to crush the wood waste wood board, bamboo board into materials into pallet material.

Dryer (Quantity: 1 unite)

This is the ideal equipment for drying raw materials with high humility. This machine is safe machine, and can dry the materials from moisture 40% to be 10%. This machine uses the hot oil duct to dry the material.

Glue mixer (Quantity1 unite)

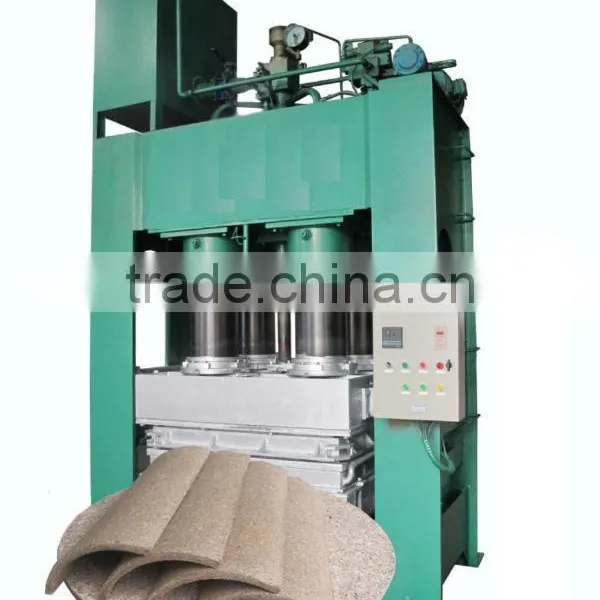

Pallet hot press machine (Quantity; 3unite)
