full automatic wooden pallet production line price

Specifications

wood pallet making machine price/full automatic wooden pallet production line
The moulds can be designed according to the custo

full automatic wooden pallet production line price



The mould press pallet machine is one of our main products, which meets with environmental protecting requirements. With the advantages of light, good integrity, no nails and thorns, on-toxic and tasteless, non-rot, easy to clean, on combustion, no spark, waterproof, anti-explosion and anti-skid, guarantine-free, high recycling value and so on, it has been widely used in the storage and transportation of many industries such as food tobacco, pharamaceutical, chemical, machinery, electronic appliances, texcile, auto parts, beer and others, which is highly improving the work efficiency.



Model	PT800(Manual feeding machine)
Pressure	800Ton
Hydraulic oil cylinder diameter	320
Hydraulic oil cylinder quantity	4
Feeding way	Manual feeding
Lifting oil cylinder	Diameter 100*2
Heating temperature	150 degree
Main motor	7.5kw
Pallet density	850kg/cubic meter
Capacity	120-144pce per day(16 hours)
Time for enough pressure	35 seconds
Time for one piece	450 seconds
Pallet size	Pallet size less than 1300*1250mm(can make 2-3 letter on mould)
Weight	11500kg
dimension	2300*1300*4300mm

Note: include one set mould (any moulds size you like). We make mould according your design.

The machine can change mould to make different size of pallets.

The moulds can be designed according to the customer’s requirements

One set mould include: upper mould and lower mould, total about 3 ton.



Feature of final pallets:

1. High temperature, high pressure can press the materials into pallet one time, standard size,

 without metal materials in the pallets.

2. Pallet can be used in export package, free fumigation, and free quarantine, do not need any test before export.

3. Reasonable design of the structure, high performance.

4. According to the European standard, biodegradability.

5. Water proofs, insect prevention, and protection against termites, antisepticises and do not easy to burn.

6. Strong bearing capacity, no deformation and can be reused.

7. Can be forked from four directions, easy to use the pallets.

8. Can be store in bulk, save room, easy to be transported.

9. Light weight, beautiful shape.

10. Can bearing dynamic load: 3000kg, bearing static load:1500kg

11. As size 1200*1000*14mm one pallet need about: 4kg glue, and 15kg materials, final weight will be 18.5kg.



Crusher: (Quantity: 1 unite)

The crusher is used to crush the wood waste wood board, bamboo board into materials into pallet material.

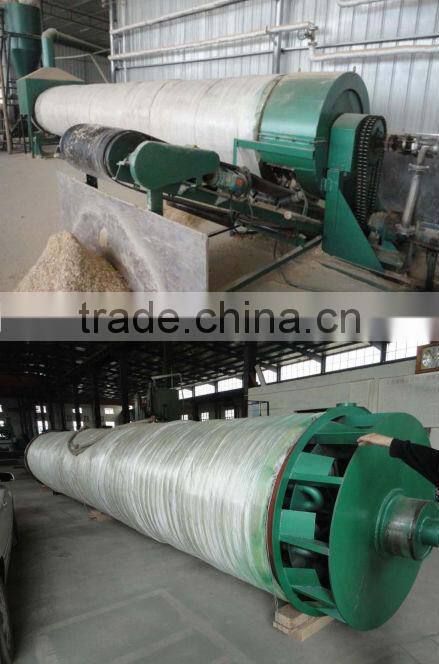

Dryer (Quantity: 1 unite)

This is the ideal equipment for drying raw materials with high humility. This machine is safe machine, and can dry the materials from moisture 40% to be 10%. This machine uses the hot oil duct to dry the material.

Glue mixer (Quantity1 unite)

Model	GMM-700
Motor power	7.5KW
Materials	Wood flaks and liquid glue
One time mixing weight	10-20kg
Net weight	230kg

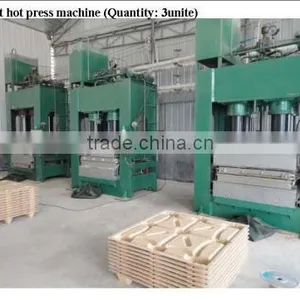

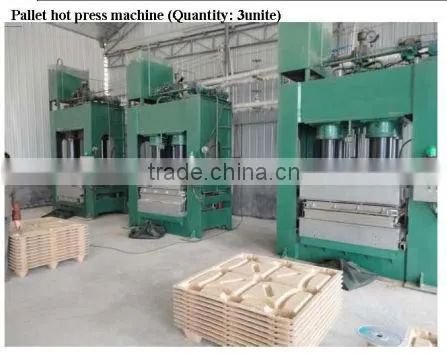

Pallet hot press machine (Quantity; 3unite)
