Automatic 3 Or 4 Side Sealing Sachet Filling Machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical | |
| Packaging Type | Bags | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v | Power | 1.2Kw | |
| Place of Origin | Jiangsu, China | Brand Name | MARS | |
| Model Number | PF-4S | Dimension(L*W*H) | 600x600x1700mm | |
| Weight | 195kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

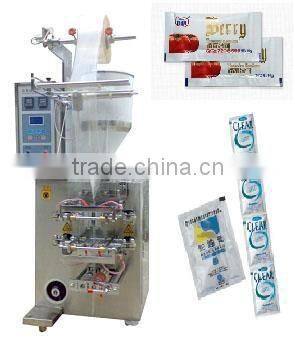

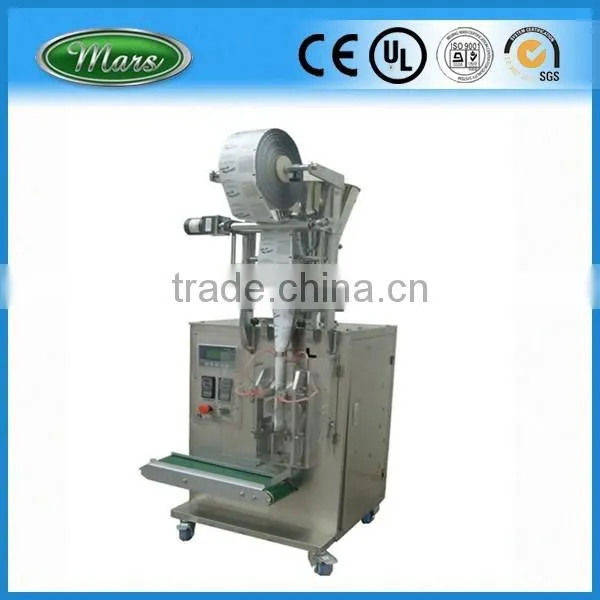

Automatic 3 Or 4 Side Sealing Sachet Filling Machine
Applications:
1,The machine is suitable for packaging of soft pouch liquid such as juice, drinks, vinegar, food seasoning, shampoo, milk, medicine liquid, etc.
2,Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc
Performance and features for Automatic 3 Or 4 Side Sealing Sachet Filling Machine :
1,the series of machine is a kind of packing machinery with three pairs of rollers designed for realizing automatic packing of liquid and viscous materials.
2,the machine is provided with a group of longtiudinal sealing hot rollers.
3,the longgitudinal sealing grains adopt chessboard grains with leakage proof line.
4,the transverse sealing grains adopt chessboard grains with leakage proof line or flat sealing with leakage proof line.
Main Parameters for Automatic 3 Or 4 Side Sealing Sachet Filling Machine :
Article | Liquid,lotion |
Model | PF-S4 |
Range of measure | 0-50ml |
Method of measuring | Piston pump |
Size of bag | L 40-150mm; W 15-100mm |
Speed | 30 bags/min |
Control style | Botton control |
Case of machine | Stainless steel 304 |
Power | 1.2Kw |
Power supply | AC220V single phase 50Hz |
Weight | N.W165kg;G.W195kg |
Dimensions | L600mm W600mm H1700mm |
Material of bag | Paper/polyethylene;cellophane/polyethylene;plated aluminum/polyethylene;BOPP/polyethylene;nylon/polyethylene |
Side seal the style | 3 or 4-sides sealed |
Main function | This machine can automatically make bags, fill, seal, cut, print codes and make easy tearing notches.It can be used to pack the fluidity of foodstuff, Chemicals, cosmetics etc. Such as: shampoo, facial cream, tomato paste, flavor oil, fruit juice ,honey and so on. |
