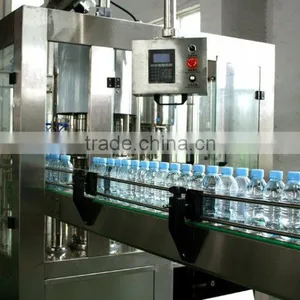

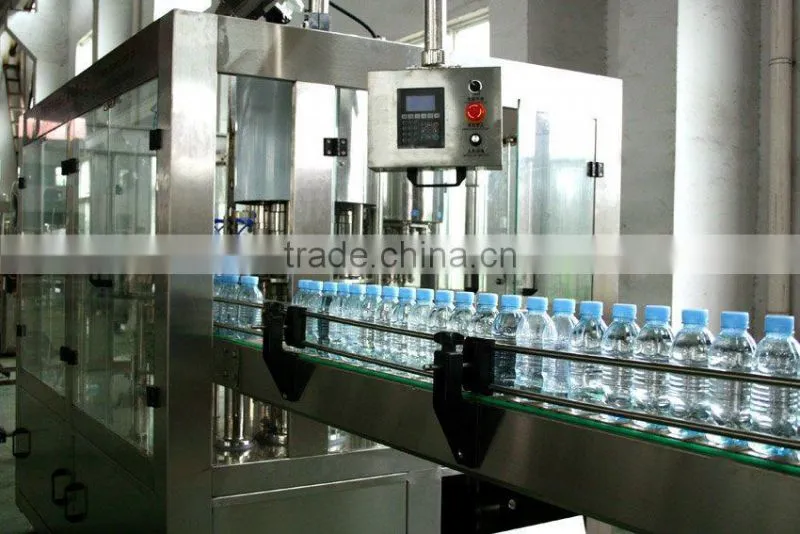

Empty Bottles Automatic Packing Machine / Machinery / Line
Description
The Empty Bottles Automatic Packing Machine / Machinery / Line is a full-automatic multiple-function washing, filling and capping unit. It is used in washing, filling and sealing all kinds of non-air drinks such as fruit juice, vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
The machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. Therefore the output and benefit of the machine is higher than the machines of the same specifications.
The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity. On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an ideal equipment for beverage makers.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main Technical Parameters:
| Model | CGF 14-12-4 | CGF 18-18-6 | CGF 24-24-8 | CGF 32-32-10 | CGF 40-40-12 | CGF 50-50-12 | CGF 60-60-12 |
| Production Capacity (500ml b/h) | 3000-4000 | 6000-8000 | 8000-10000 | 12000-14000 | 16000-18000 | 20000-24000 | 25000-28000 |
| Suitable Bottle Shape | PET bottle, circular or square | ||||||
| Bottle Diameter(mm) | 50-90 | ||||||
| Bottle Height(mm) | 150-310 | ||||||
| Compressed Air Pressure(Mpa) | 0.3-0.7 | ||||||
| Washing Medium | aseptic water | ||||||
| Total Power(kw) | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 | 10 | 13 |
| Total Weight(kg) | 2200 | 2500 | 4200 | 6000 | 7000 | 9000 | 11000 |
| Overall Dimension(mm) | 2230*1630*2250 | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 | 4500*3300*2350 | 5500*4000*2450 |

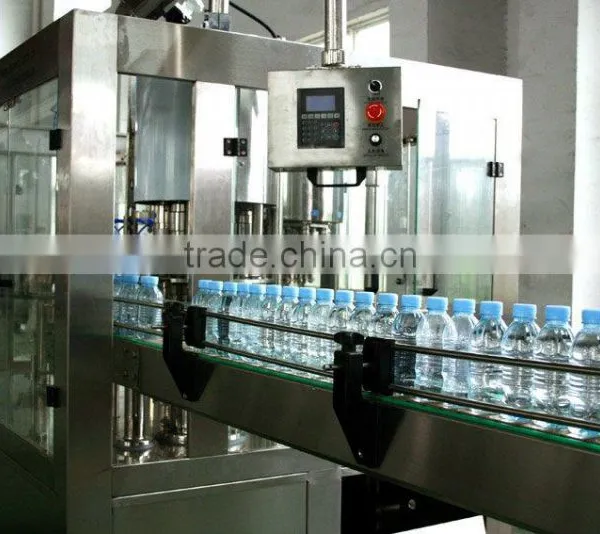

Product show
