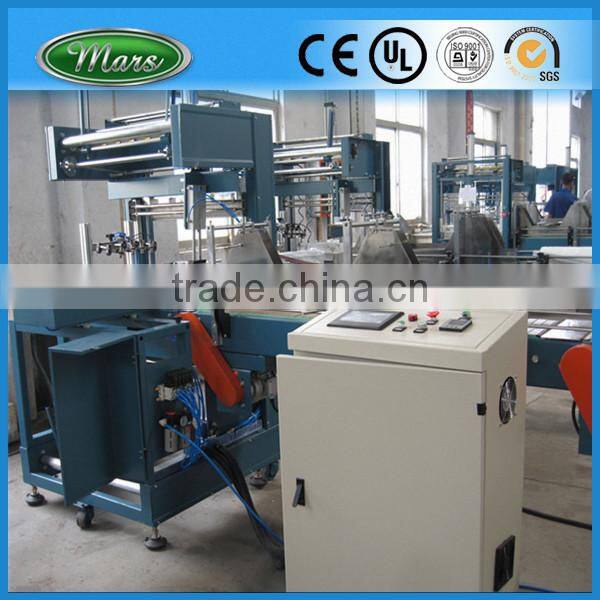

Juice Glass Bottle Packaging Machine

FOB Price

USD $9,200 - $10,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Application:	Beverage	Packaging Type:	Bottles
Packaging Material:	Plastic	Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	380V	Power:	19Kw	Place of Origin:	Jiangsu, China
Brand Name:	Mars	Model Number:	SP-10	Dimension(LWH):	550032002100mm
Weight:	1600Kg	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

Bottle shrink wrapper machine characteristic:

1.With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cutting, shrinkage, cooling and shaping etc.

2.Adopt with PLC automatic program circulation control with stable and reliable performance.

3.3 layers of heat insulation treatment with good insulting property, quick temperature rise and energy saving.

4.The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported.

5.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.

Specification:

Dimension for the whole unit:	L5500mm×W3200mm×H2100mm
Thermal shrinkage passage dimension:	L1800mm×W650mm×H450mm
Max. package dimension:	L600mm×W400mm×H350mm
Transfer belt dimension:	800-1200mm
Packaging speed:	8-10Packages/Minute
Operating power supply/power:	380V,19KW
Sealing and cut time/temperature:	0.5-1.5S, 140^oC-160^oC
Operating air pressure:	0.6-0.8Mpa
Air consumption:	0.5m³/Minute

Product show
