US$ 10,000 - 11,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Barrel
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380v
Power 20KW
Place of Origin Jiangsu, China
Brand Name Mars
Model Number WD-150A
Dimension(L*W*H) 5050*3300*2100MM
Weight 1200Kg
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

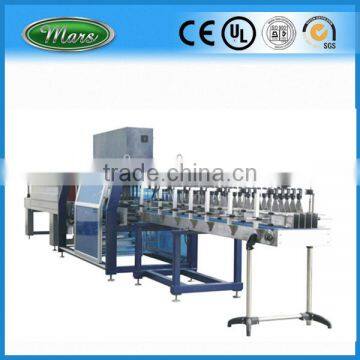

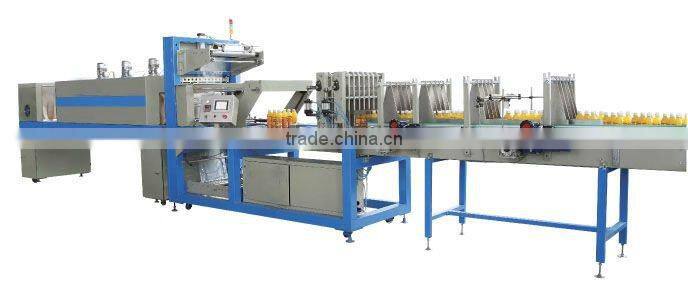

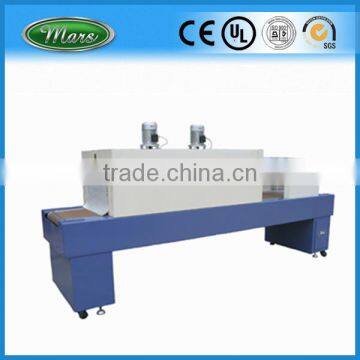

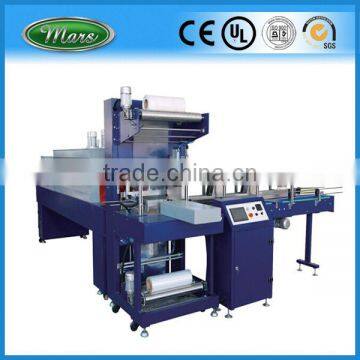

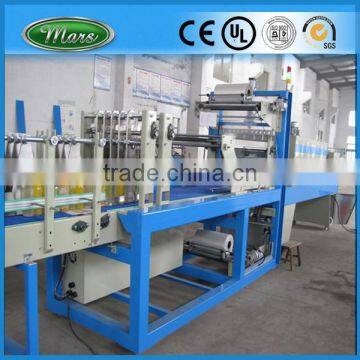

Bottle Wrapping Machine



Applications:

The  type  of  machine  is  suit  for  beverage,drinking  water,beer,wine,and  infusion  bottle  etc.packaging,which  can  be  packed  without tray  and  with  a  firm  and  beautiful  appearance.



Features for Bottle Wrapping Machine:

Applying imported PLC  which  can  control  the  machine  automatically  with  stable  performance  and  precise  control.
with  the capacity  of  feeding  and  sorting  bottles,shrinking,shaping  and  cooking  automaticlly.
inductive  switch  is  used  to  control  the  feeding  of  film,which  can  control  the  length  of  film  and  reduce  consumption.
imported  tranducer  control  the  convey  motor,which  can  realize  stepless  speed  regulation.

Bottle Wrapping Machine



Main technical parameters for Bottle Wrapping Machine:

External Dimenssion
L5050*W3300*H2200
The overall size of packaging machinery
Main Machine
L1180*W1080*H2370
thermo-wind Stove
L3890*W1050*H2040
Cabinet
L1250*W780*H1100
Total Weight
1.2t
The dimension of hot thermo-wind stove
L3700*W920*H1800
Max.Packing Size
L600*W400*H350
Packing Speed
8-15 Packet
The speed of Conveyor
920Adjustable 200
Working Power
380V 20KW
Working Pressure
0.6-0.8Mpa
Total Power
20kw



Bottle Wrapping Machine

Bottle Wrapping MachineBottle Wrapping MachineBottle Wrapping MachineBottle Wrapping MachineBottle Wrapping MachineBottle Wrapping Machine
